Microsoft SQL Server Integration Guide

Connect MaestroHub pipelines to Microsoft SQL Server instances for data ingestion and orchestration. This guide highlights SQL Server specifics such as T-SQL, encryption policies, and authentication modes so you can configure pipelines with confidence.

Overview

The Microsoft SQL Server connector unlocks relational workloads with:

• Bidirectional data flows for reading and writing T-SQL queries
• Stored procedure execution with parameter binding and output handling
• Secure connectivity with TLS encryption and granular connection tuning

Supported Editions

The connector is validated with Microsoft SQL Server 2012 and later.

Connection Configuration

Creating a Microsoft SQL Server Connection

Open Connections → New Connection → MSSQL and provide the following details:

MSSQL (Microsoft SQL Server) Connection Creation Fields

1. Profile Information

Field	Default	Description
Profile Name	-	A descriptive name for this connection profile (required, max 100 characters)
Description	-	Optional description for this MSSQL connection

2. Database Configuration

Field	Default	Description
Host	localhost	Server hostname or IP address (required)
Port	1433	SQL Server port number (0-65535). Use 0 with instance name for auto-discovery via SQL Browser
Instance Name	-	Named instance (e.g., SQL2019, DEV, SQLEXPRESS). Leave empty for default instance (MSSQLSERVER)
Database	-	Initial database name to connect to (required, e.g., master)
Connect Timeout (sec)	30	Connection timeout in seconds (0-600) - required

Notes

• Supported SQL Server Versions: 2012 and newer
• Instance Name: Used for named instances. If using default instance (MSSQLSERVER), leave empty
• Port 0: When port is set to 0, SQL Browser service will be used to discover the port based on instance name

3. Basic Authentication

Field	Default	Description
Username	-	SQL Server database username (required, e.g., sa)
Password	-	SQL Server user password (required)

4. Encryption Settings

4a. Encryption Configuration

Field	Default	Description
Encryption Mode	disable	Connection encryption level (disable / true / strict)
Trust Server Certificate	true	Accept self-signed or untrusted certificates. Enable for development, disable for production with valid CA certificates

Encryption Mode Options

• disable: No encryption - Data transmitted in plain text
• true: TLS encryption enabled - Secure connection with TLS
• strict: Mandatory TLS (SQL Server 2022+ only) - Enforces strict TLS encryption

4b. Certificate Verification

(Only displayed when Encryption Mode is NOT "disable" AND Trust Server Certificate is disabled)

Field	Default	Description
CA Certificate	-	CA certificate for server verification (PEM format). Only required for self-signed or private CA certificates. Leave empty if using public CAs (Let's Encrypt, DigiCert, etc.)

5. Connection Pool Settings

Field	Default	Description
Max Open Connections	100	Maximum number of simultaneous database connections (1-1000). Higher values increase concurrency but add DB load
Max Idle Connections	25	Idle connections kept ready for reuse to reduce latency (0-1000). Set 0 to close idle connections immediately
Connection Max Lifetime (sec)	900	Maximum age of a connection before it is recycled (0-86400 sec, 0 = keep indefinitely)
Connection Max Idle Time (sec)	300	How long an idle connection may remain unused before being closed (0-86400 sec, 0 = disable idle timeout)

Connection Pool Best Practices

• Max Open Connections: Balance between concurrency and database load. Default 100 is suitable for most applications
• Max Idle Connections: Keeping idle connections reduces connection establishment latency
• Max Lifetime: Prevents connection leaks and helps with database maintenance windows (default 900 sec = 15 minutes)
• Max Idle Time: Closes unused connections to free up database resources (default 300 sec = 5 minutes)

6. Retry Configuration

Field	Default	Description
Retries	3	Retries after the first connection attempt fails (0-10, 0 = no retries). Each retry waits the Retry Delay first; the delay grows by the Backoff Multiplier after every retry
Retry Delay (ms)	200	Initial delay between retry attempts in milliseconds (0-3,600,000 ms = 1 hour max)
Retry Backoff Multiplier	2	Exponential factor for retry delay growth (1.0-10.0, e.g., 2 means delay doubles each retry)

Retry Behavior Example

• 1st retry: wait 200ms
• 2nd retry: wait 400ms (200 × 2)
• 3rd retry: wait 800ms (400 × 2)

7. Connection Labels

Field	Default	Description
Labels	-	Key-value pairs to categorize and organize this MSSQL connection (max 10 labels)

Example Labels

• env: prod - Environment (production, staging, development)
• team: data - Responsible team
• region: us-east - Geographical region
• application: erp - Associated application

Notes

• SQL Server Version Support: This connector supports Microsoft SQL Server 2012 and newer versions
• Named Instances: SQL Server supports multiple instances on the same server. Use Instance Name for non-default instances
• Encryption Recommendations: Development: Use encrypt: disable or trustServerCertificate: true for convenience. Production: Use encrypt: true or encrypt: strict with trustServerCertificate: false and valid CA certificates
• Connection Pooling: The driver uses Go's database/sql connection pool, which efficiently manages connections
• Retry Strategy: Implements exponential backoff for connection failures to handle transient network issues
• Fields marked as required must be filled out before creating/saving the connection
• All timeout values are in seconds unless otherwise specified (Retry Delay is in milliseconds)

Function Builder

Creating MSSQL Functions

After the connection is saved, create reusable functions for different operation types:

1. Open the connection and go to its Functions tab → New Function
2. Select one of the MSSQL function types: Query, Execute, or Write
3. Configure the function parameters

Zoom

MSSQL function creation interface showing available function types: Query, Execute, and Write

Query Function

Purpose: Execute SQL queries (SELECT) to read data from Microsoft SQL Server. Returns rows as structured data.

Configuration Fields

Field	Type	Required	Default	Description
SQL Query	String	Yes	-	SQL SELECT statement to execute. Supports parameterized queries with ((param)) syntax.
Timeout (seconds)	Number	No	1800	Per-execution timeout in seconds (1-3600).

Use Cases:

• SELECT machine KPIs (OEE, downtime) from telemetry tables
• SELECT COUNT(*) from orders grouped by status
• SELECT with JOINs across multiple tables
• SELECT TOP 100 with WHERE filters and ORDER BY

Execute Function

Purpose: Execute DML/DDL statements (INSERT, UPDATE, DELETE, CREATE, ALTER, DROP) on MSSQL. Returns rowsAffected instead of row data. Use this for data modifications and schema changes.

Configuration Fields

Field	Type	Required	Default	Description
SQL Statement	String	Yes	-	DML/DDL SQL statement to execute. Supports parameterized queries with ((param)) syntax.
Timeout (seconds)	Number	No	1800	Per-execution timeout in seconds (1-3600).

Use Cases:

• INSERT INTO events (name, ts) VALUES (@p1, GETUTCDATE())
• UPDATE work_orders SET status = @p1 WHERE id = @p2
• DELETE FROM audit_logs WHERE created_at < DATEADD(day, -30, GETUTCDATE())
• CREATE TABLE or ALTER TABLE for schema changes

Write Function

Purpose: Write pipeline data to an MSSQL table with automatic schema detection. This is not a SQL editor — it loads structured data (rows/objects) from your pipeline into a target table.

Write reads the table's columns and maps the incoming data fields to them automatically. Supports batching for efficient bulk loading.

Configuration Fields

Field	Type	Required	Default	Description
Table Name	String	Yes	-	Target table to insert data into.
Data	JSON	Yes	-	Rows to write: an array of objects or a single object. Use ((data)) to take them from the pipeline, or enter static JSON.
Create Table If Not Exists	Boolean	No	false	Create the table if it does not exist, with column types from the Schema or inferred from the data.
Allow Schema Evolution	Boolean	No	false	Add a column to an existing table when the data carries a field the table has no column for. When off, such a batch fails instead of dropping the field. See step 5 below.
Schema	JSON	No	-	Column definitions (types, primary keys, indexes) for creating the table, set in the Visual Editor or as JSON. Shown when Create Table If Not Exists is on.
Batch Size	Number	No	100	Number of rows per INSERT batch (1–1,000). SQL Server limits each INSERT to 1,000 rows.
Timeout (seconds)	Number	No	1800	Per-execution timeout in seconds (1-3600).

Use Cases:

• Auto-detect table schema and map pipeline data
• Create tables on-the-fly with INT IDENTITY(1,1) PRIMARY KEY
• Bulk insert production events with auto schema detection

How Write Works Step by Step

1. Batching

Each batch generates a single INSERT INTO [table] ([col1], [col2]) VALUES (@p1, @p2), (@p3, @p4) statement with multiple value tuples. If your pipeline sends 10 rows and Batch Size is 5, exactly 2 INSERT statements are executed (2 batches of 5 rows). If it sends 13 rows, 3 INSERT statements are executed (5 + 5 + 3).

note

SQL Server has a per-query limit of 2,100 parameters. For wide tables, the effective batch size may be automatically reduced to stay within this limit. For example, a table with 21 columns can insert at most 100 rows per batch (21 × 100 = 2,100 parameters). This is handled transparently — the total number of inserted rows remains the same.

2. Column Matching

Write uses case-insensitive matching between incoming data field names and table column names. For example, a data field named deviceId will match a table column DeviceID or deviceid. The original column casing from the database is preserved in the generated INSERT statement.

3. Table Exists — Normal Flow

1. The function first queries INFORMATION_SCHEMA to check if the target table exists
2. If the table exists, it fetches all column metadata (name, type, nullability)
3. If the data carries fields that have no column in the table, Allow Schema Evolution decides: when on, the missing columns are added first (step 5); when off, the write fails and nothing is inserted
4. It matches incoming data fields to table columns (case-insensitive)
5. Batch INSERT statements are generated and executed using the matched columns

4. Table Does Not Exist

Create Table If Not Exists	Behavior
Disabled (default)	Returns an error immediately: "table 'X' does not exist. Enable 'Create table if not exists' or create it manually". No insert is attempted.
Enabled, no schema provided	Types are inferred from all rows in the batch using the rules below. A CREATE TABLE is executed, then all rows are inserted.
Enabled, with schema	The provided schema is used for CREATE TABLE with full column definitions (types, primary keys, IDENTITY columns, indexes). After creation, all rows are inserted.

Data Type Inference — When no schema is provided, the Write function infers each column's type from all rows in the batch. For each field it uses the first row where the field has a non-null value; a field that is null in every row gets the null type below. A row that lacks a field inserts NULL for it.

Data Value	Inferred Type	Notes
true / false	BIT	JSON boolean values
42, -7, 1000	BIGINT	Whole numbers (no fractional part)
3.14, 0.5	FLOAT	Numbers with fractional part
"2024-01-15T10:30:00Z"	DATETIME2	Strings matching ISO 8601 / RFC 3339 and other common timestamp formats are automatically detected
"hello", "sensor-01"	NVARCHAR(MAX)	All other strings
null	NVARCHAR(MAX)	Null values default to text

info

JSON has a single number type, so 55.0 arrives as 55 and is typed BIGINT. When rows disagree, a whole number gives way to a later number with a fractional part: a field that is 38 in one row and 38.5 in a later row gets FLOAT. Any other disagreement keeps the type of the first non-null value, so a field that is a string in the first row stays NVARCHAR(MAX) even if later rows send numbers. If you need a specific numeric type (e.g., DECIMAL, INT), define it in the schema using the Visual Editor.

5. Schema Evolution (Table Exists + Allow Schema Evolution On)

When Allow Schema Evolution is on and the table already exists, the function adds the missing columns before inserting:

• New columns: If the data contains fields that have no column in the table, ALTER TABLE ADD is executed for each missing field. If a schema is defined in the Visual Editor, the specified type is used; otherwise, the type is inferred from the batch using the rules above.
• After the columns are added, column metadata is re-fetched from the database, then all rows are inserted with the updated column set.

Schema evolution only adds columns — it never changes the type of an existing column. Data that does not fit an existing column's type is not handled by schema evolution: the database rejects or converts it as it would for any INSERT (SQL Server, for example, truncates a decimal value written into a BIGINT column without an error).

The following changes are not made by schema evolution and require manual ALTER TABLE statements:

• Changing the type of an existing column, whether widening or narrowing it
• Changing an already-created column's type by updating the Visual Editor schema alone — the schema definition only affects new columns being added
• Dropping columns — removing a column from the Visual Editor schema does not delete it from the database table. The column remains in the table and receives NULL (or its default value) for new inserts.

tip

If you need to change an existing column's type or drop a column, use the Execute function to run ALTER TABLE ... ALTER COLUMN ... or ALTER TABLE ... DROP COLUMN ... manually.

Allow Schema Evolution off: if the data carries a field that has no column in the table, the write fails before anything is inserted, with an error that names the fields:

"write batch carries field(s) [pressure] with no matching column in table "sensor_readings" and schema evolution is disabled — enable 'Allow schema evolution' on this function, or add the column(s) manually"

Turn the switch on, add the column with the Execute function, or remove the field upstream. The error is marked permanent because the same batch would fail again: with Store & Forward on, the batch is not retried and goes to Failed messages.

Functions saved before the switch existed have no Allow Schema Evolution value. For them, Create Table If Not Exists decides: when on, missing columns are added; when off, fields that have no column are skipped and listed in skippedFields. When you open such a function in the editor, the switch starts in the same position as Create Table If Not Exists, and saving stores it. Once it is saved as off, a batch with an unknown field fails instead of being skipped.

6. Partial Failure

Each batch executes independently — there is no transaction wrapping all batches. If batch 3 of 5 fails, batches 1 and 2 have already been committed. The error response still includes rowsInserted showing how many rows succeeded before the failure.

Response Metadata

On success, the response includes:

Field	Description
rowsInserted	Total number of rows successfully inserted
matchedColumns	Column names that had matching data fields (when the table already existed)
skippedFields	Data fields that had no matching column and were skipped — only for functions saved before Allow Schema Evolution existed (if any)
schemaEvolution	Columns added by schema evolution, each with its type (if any)
tableCreated	true if the table was created during this call
columns	Columns written to (when the table was created during this call)
batchSize	Batch size used
totalRows	Total number of input rows

Using Parameters

MaestroHub detects the ((parameterName)) syntax and exposes each parameter for validation and runtime binding for Query and Execute functions.

Configuration	Description	Example
Type	Enforce data types for incoming values	string, number, boolean, datetime, array
Required	Mark parameters as mandatory or optional	Required / Optional
Default Value	Fallback value applied when callers omit a parameter	SYSDATETIMEOFFSET(), 0, 'Active'
Description	Add guidance for downstream users	"UTC start time for the query window"

Zoom

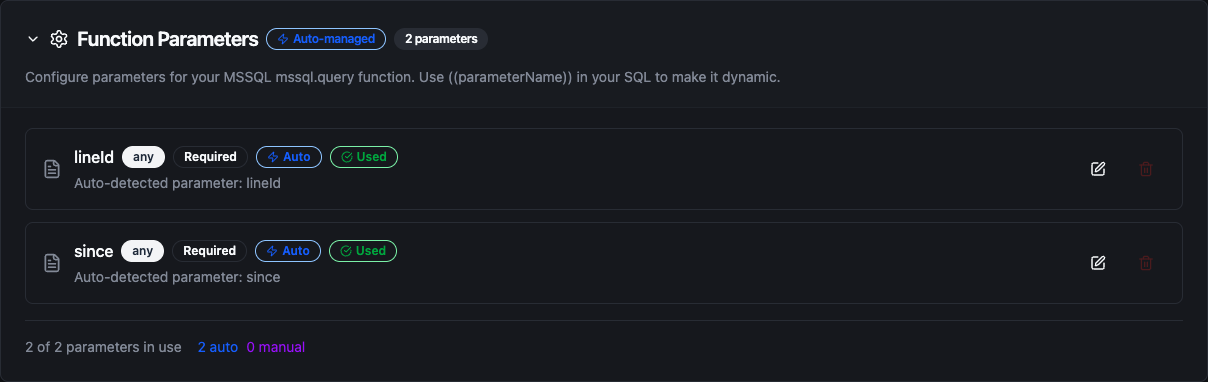

Parameter configuration with validation rules and helper text

Pipeline Integration

Use the Microsoft SQL Server functions you publish here as nodes inside the Pipeline Designer to keep plant-floor activity aligned with enterprise data. Drag the appropriate node type into your flow, bind parameters to upstream outputs or constants, and adjust error handling or retry behavior directly on the canvas.

Each function type maps to a dedicated pipeline node — Query, Execute, and Write — so you can clearly separate read, write, and data-loading operations in your flows.

When orchestrating larger workflows, visit the Connector Nodes page for guidance on where SQL Server nodes fit within multi-system automation patterns.

Zoom

SQL Server Query node in the pipeline designer

Common Use Cases

Query: Hourly Production Metrics

Scenario: Build hourly OEE dashboards pulling data from MES tables.

WITH Hourly AS (
    SELECT
        DATEADD(hour, DATEDIFF(hour, 0, event_time), 0) AS hour_bucket,
        line_id,
        SUM(runtime_minutes) AS runtime_minutes,
        SUM(planned_minutes) AS planned_minutes,
        SUM(good_units) AS good_units,
        SUM(reject_units) AS reject_units
    FROM dbo.OEEEvents
    WHERE event_time BETWEEN ((startTime)) AND ((endTime))
    GROUP BY DATEADD(hour, DATEDIFF(hour, 0, event_time), 0), line_id
)
SELECT
    hour_bucket,
    line_id,
    CAST((good_units * 1.0) / NULLIF(good_units + reject_units, 0) * 100 AS DECIMAL(5,2)) AS quality_pct,
    CAST(runtime_minutes / NULLIF(planned_minutes, 0) * 100 AS DECIMAL(5,2)) AS availability_pct
FROM Hourly
ORDER BY hour_bucket DESC, line_id;

Pipeline Integration: Populate BI datasets, KPI dashboards, or notify teams when efficiency dips.

---

Execute: Updating Work Order Progress

Scenario: Update work order completion details from barcode scanners or PLC events.

UPDATE dbo.WorkOrders
SET
    completed_quantity = ((completedQuantity)),
    scrap_quantity = ((scrapQuantity)),
    status = ((newStatus)),
    last_updated_at = SYSDATETIME(),
    last_updated_by = ((userId))
WHERE work_order_id = ((workOrderId))
OUTPUT inserted.work_order_id, inserted.status, inserted.completed_quantity;

Pipeline Integration: Trigger on event streams to keep ERP and MES systems synchronized in real time.

---

Execute: Data Archiving and Cleanup

Scenario: Offload historical sensor data into archive tables to maintain performance.

WITH Archived AS (
    DELETE TOP (10000) FROM dbo.SensorReadings
    OUTPUT deleted.*
    WHERE reading_time < DATEADD(day, -((retentionDays)), SYSUTCDATETIME())
)
INSERT INTO dbo.SensorReadingsArchive (
    sensor_id, reading_time, temperature, pressure, vibration, archived_at
)
SELECT
    sensor_id, reading_time, temperature, pressure, vibration, SYSUTCDATETIME()
FROM Archived;

Pipeline Integration: Schedule via cron triggers to run during maintenance windows or low-traffic periods.

---

Write: Bulk Loading Sensor Data

Scenario: Load real-time sensor readings from IoT devices into an MSSQL table.

Configure a Write function with:

• Table Name: SensorReadings
• Create Table If Not Exists: enabled
• Allow Schema Evolution: enabled, so a new field from the devices becomes a new column instead of failing the batch

Connect it after data collection nodes (MQTT, OPC UA, Modbus, etc.) in your pipeline. The Write function automatically maps incoming fields (sensor_id, temperature, pressure, vibration) to table columns and inserts them in batches. If the table doesn't exist, it is created automatically with inferred types (BIGINT, FLOAT, NVARCHAR(MAX)).
