Google Cloud Functions Integration Guide

Connect to Google Cloud Functions (now branded Cloud Run functions) to call your own serverless code from a pipeline — a transform, an enrichment lookup, an inference endpoint, or a side effect the pipeline should not wait for. This guide covers connection setup, function configuration, and pipeline integration.

Overview

The Cloud Functions connector calls a function over its HTTPS trigger and hands the response back to the pipeline. It resolves a function by name through the Cloud Functions Admin API, so a pipeline author names the function rather than pasting a URL that changes when the function is redeployed. The connector provides:

• Synchronous invocation returning the HTTP status and the response body, decoded as JSON when it parses and delivered as text when it does not
• Fire-and-forget dispatch for work that must not hold up the pipeline
• Function discovery through the Admin API, across one region or every region in the project
• OIDC identity tokens minted per function URL, which is what a private function checks
• Invocation by name or by URL — a name resolves in the connection's project and region; a full https:// trigger reaches a function in any project
• Flexible authentication with a service account key or Application Default Credentials (GKE Workload Identity, GOOGLE_APPLICATION_CREDENTIALS, an attached service account)
• Custom API endpoint for emulators and private access
• Templatable function name, payload, region and filter, so one function serves many calls

Call-Only

Cloud Functions are invoked by MaestroHub; they do not push events back into it. To have a function start a pipeline, give the pipeline a Webhook Trigger and have the function POST to it, or publish from the function to Pub/Sub and use the Google Pub/Sub trigger.

Cloud Functions or Cloud Run?

A 2nd-gen Cloud Function is a Cloud Run service with a build pipeline attached. This connector talks to the Cloud Functions Admin API, so it can resolve a function by name and report its generation, state and runtime. To call a Cloud Run service that was never deployed as a function, use the REST/HTTP connector against its URL.

Connection Configuration

Google Cloud Functions Connection Creation Fields

1. Profile Information

Field	Default	Description
Profile Name	-	A descriptive name for this connection profile (required, max 100 characters)
Description	-	Optional description for this Cloud Functions connection

2. Project & Region

Field	Default	Description
Project ID	-	The GCP project that owns the functions (required)
Region	us-central1	The region the functions are deployed in (e.g. us-central1, europe-west1). Invoking by name resolves the function in this region.

A Function Is Regional

A function name is unique within one project and one region. order-router in us-central1 and order-router in europe-west1 are two functions. Create one connection per region you invoke into, or give the invoke node a full trigger URL, which carries its own region.

3. Authentication

Field	Default	Description
Service Account JSON Key	-	The whole service account JSON key. Leave empty to use Application Default Credentials.
Invocation Auth	oidc	oidc mints a Google-signed identity token for each function's URL. none sends no Authorization header.

You can authenticate the connector in one of two ways:

Option A — Service account JSON key (explicit)

Paste the key Google issues for the service account — the whole JSON object, not a path to it. Best for self-hosted deployments where the host has no Google identity of its own. MaestroHub stores it encrypted and never returns it to the browser.

Option B — Application Default Credentials (implicit)

Leave the key empty. The Google client library then resolves credentials in its standard order:

1. The GOOGLE_APPLICATION_CREDENTIALS environment variable
2. GKE Workload Identity, when running on GKE
3. The attached service account of the Compute Engine / Cloud Run host
4. gcloud auth application-default login credentials, in development

This is the recommended path for GCP-hosted MaestroHub deployments — no long-lived key is stored in the connection profile.

Two Different Permissions

Discovery and invocation are granted separately, and it is normal to have one without the other:

Operation	Required IAM permission	Typical role
Connect / health probe	cloudfunctions.functions.list	roles/cloudfunctions.viewer
Invoke by name (resolving the trigger)	cloudfunctions.functions.get	roles/cloudfunctions.viewer
Invoke a 2nd-gen function	run.routes.invoke on the underlying service	roles/run.invoker
Invoke a 1st-gen function	cloudfunctions.functions.invoke	roles/cloudfunctions.invoker
List Functions	cloudfunctions.functions.list	roles/cloudfunctions.viewer

cloudfunctions.functions.list is needed for the connection's startup health probe — without it the connection never reaches Connected, even when the identity is allowed to invoke every function in the project.

Invocation Auth Is Not a Convenience Setting

A Cloud Function requires authentication unless it was deployed with --allow-unauthenticated. Leave Invocation Auth on oidc unless you know the function grants allUsers. none is for public functions and for emulators — it sends no credential at all, and a private function answers 403.

The token's audience is the function's own URL, which is what Cloud Run checks. Nothing else needs configuring; MaestroHub mints one token source per URL and refreshes it as needed.

4. Advanced

Field	Default	Description
Custom API Endpoint	-	Custom Cloud Functions Admin API endpoint, for emulators or private access. Leave empty for Google Cloud.
Request Timeout	1m	Default timeout for invocations and Admin API calls (1s–60m). Individual functions may override it.

Timeout Ceiling

A 2nd-gen function's own maximum runtime is 60 minutes, and a 1st-gen function's is 9 minutes. The connection timeout bounds how long MaestroHub waits — it does not extend what Google allows. A function that runs longer than its own deployed timeout is killed by Google regardless of what is set here.

5. Connection Labels

Field	Default	Description
Labels	-	Key-value pairs to categorize and organize this connection (max 10 labels)

Example Labels

• env: prod – Environment
• project: acme-prod – GCP project
• region: us-central1 – Deployment region

Function Builder

Creating Google Cloud Functions Functions

Once you have a connection established, you can create reusable functions:

1. Open the connection and go to its Functions tab → New Function
2. Select the desired function type (Invoke, Invoke Async, or List Functions)
3. Configure the function parameters

Zoom

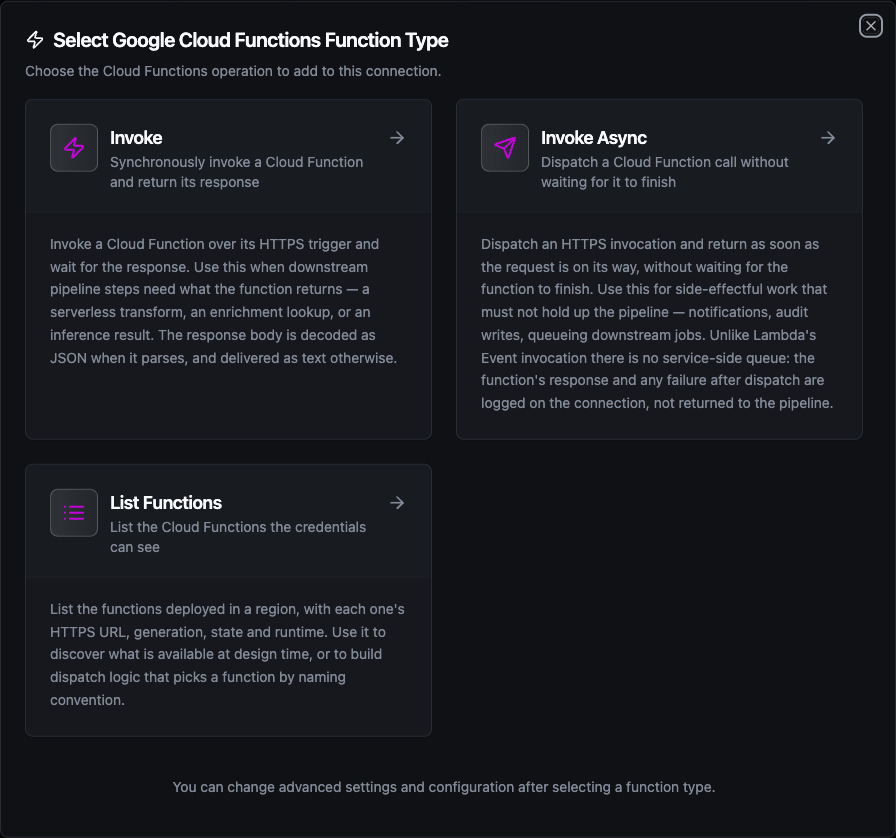

Select from three Cloud Functions function types: two invocation shapes and one discovery operation

Invoke Function

Purpose: Call a function over its HTTPS trigger and wait for the response. Use this when a downstream node needs what the function returns.

Configuration Fields

Field	Type	Required	Default	Description
Function Name or URL	String	Yes	-	Function name (resolved in the connection's project and region), or a full https:// trigger URL, which skips the lookup. Supports ((parameter)) syntax.
HTTP Method	Enum	No	POST	POST, GET, PUT, PATCH or DELETE. GET and DELETE send no body.
Payload	String	No	{}	Request body. JSON by default; any text is accepted when Content Type says so. Supports ((parameter)) syntax.
Content Type	String	No	application/json	Content-Type header for the body. A body sent as application/json is validated before it leaves.
Extra Headers	Object	No	-	Additional request headers. Authorization is set by the connection's Invocation Auth and cannot be overridden here.
Timeout Override	Duration	No	-	Overrides the connection-level request timeout. A Go duration string between 1s and 60m (e.g. 30s).

Use Cases:

• Run a serverless transform on incoming pipeline data
• Call an ML inference endpoint deployed as a function
• Look up reference data from a Firestore-backed function
• Call a function in another project by its full trigger URL

Name or URL — Pick Deliberately

A name is resolved once per connection through the Admin API and cached for the life of the connection, so invoking the same function per message costs one lookup, not one per message. It survives a redeployment that changes the URL, and it needs cloudfunctions.functions.get.

A URL skips the lookup entirely. Use it for a function in another project, when the identity has invoke permission but not list/get permission, or when you already hold the URL from a List Functions result.

A 4xx or 5xx Answer Fails the Node

A function that answers 400 or 500 has run and refused. The node fails, so a pipeline's error branch fires, and the response body is still delivered on result.payload so the branch can read why. A 4xx is treated as permanent (retrying the same body gets the same answer) and a 5xx or 429 as transient.

This is worth knowing if your function signals business outcomes with status codes: a 409 Conflict meaning "already processed" fails the node. Answer 200 with a body the pipeline can branch on instead.

Response Size Cap

A response is read up to 8 MB. Past that the body is truncated and the result's metadata says so. Large results belong in Cloud Storage with the object name in the response — read them with the Google Cloud Storage connector.

---

Invoke Async Function

Purpose: Dispatch an invocation and return immediately, without waiting for the function to finish. Use this for side-effectful work that must not hold up the pipeline.

Configuration Fields

Field	Type	Required	Default	Description
Function Name or URL	String	Yes	-	Function name or full https:// trigger URL. Supports ((parameter)) syntax.
Payload	String	Yes	{}	Request body POSTed to the function. Supports ((parameter)) syntax.
Content Type	String	No	application/json	Content-Type header for the body.
Extra Headers	Object	No	-	Additional request headers. Authorization cannot be overridden here.
Timeout	Duration	No	-	Bounds the dispatched request. The node returns before the function does, so this caps how long the call may run in the background — not how long the pipeline waits.

Use Cases:

• Notify a function of an event without blocking the pipeline
• Hand slow post-processing to a function and carry on
• Queue a downstream job from a pipeline step

There Is No Queue Behind This

Unlike AWS Lambda's Event invocation type, Google offers no service-side queue for an HTTPS trigger. MaestroHub sends the request and returns; the function's response and any failure after dispatch are logged on the connection, not returned to the pipeline. The node's result is {"dispatched": true} and nothing more.

Consequences worth planning for:

• A function that is down, slow, or rejects the payload produces a successful node and a warning in the connection's logs.
• The dispatch is bounded by the connection's own lifetime: an in-flight call is given a few seconds to finish when the connection is closed, then cancelled.
• Because delivery cannot be confirmed, this operation is not eligible for store-and-forward. Use the synchronous Invoke when the pipeline must know the work landed.

When a real queue is what you want, publish to Google Pub/Sub and trigger the function from the topic.

---

List Functions Function

Purpose: List the functions the credentials can see, with each one's HTTPS URL, generation, state and runtime.

Configuration Fields

Field	Type	Required	Default	Description
Region Override	String	No	-	Region to list instead of the connection's. Use - to list every region the project has functions in. Supports ((parameter)) syntax.
Page Size	Integer	No	50	Maximum functions to return in this page (1–1000).
Filter	String	No	-	Admin API filter expression, e.g. state="ACTIVE" or environment="GEN_2". Supports ((parameter)) syntax.
Page Token	String	No	-	Token from a previous call, to continue the listing. Supports ((parameter)) syntax.
Timeout	Duration	No	30m	Bound on this single operation (1s–1h).

Use Cases:

• Discover available functions before invoking one
• Audit the function inventory of a region, or of the whole project with -
• Build a dispatch table that picks a function by naming convention

The Listing Is Paged, Not Truncated

Page Size is pushed down to the Admin API, so a budget of 10 costs one small page rather than fetching the project's whole inventory and trimming it. When more remain, the result carries a nextPageToken; pass it back as Page Token to continue.

A wildcard (-) listing can also report an unreachable region. Functions in that region are missing from the result — treat a non-empty unreachable as an incomplete inventory, not a clean one.

Function Parameters

Every field marked "supports ((parameter)) syntax" can be templated, and MaestroHub detects the placeholders automatically as you type.

Zoom

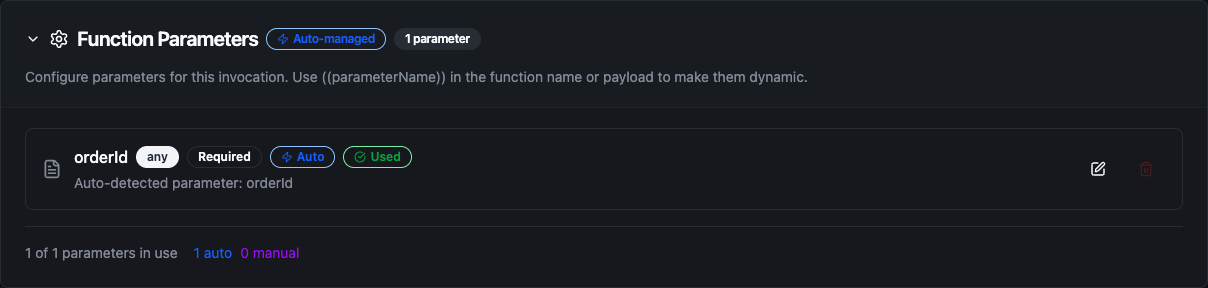

Placeholders written in the function name or payload become parameters the pipeline fills in at run time

A templated payload stays valid JSON: quote a placeholder that stands for a string ("orderId": "((orderId))") and leave one that stands for a number unquoted ("total": ((total))).

Pipeline Integration

Each function type has a matching pipeline node. See the Cloud Functions node reference for the node cards, their output shape, and how to read the result downstream.

Common Use Cases

Serverless Enrichment Mid-Pipeline

Scenario: An order pipeline needs a shipping estimate that a data-science team maintains as a Cloud Function.

Invoke Configuration:

• Function Name or URL: shipping-estimator
• HTTP Method: POST
• Payload:

{
  "orderId": "((orderId))",
  "destination": "((postcode))",
  "weightKg": ((weightKg))
}

Pipeline Integration: Place the Invoke node between the order-parsing node and the write node. Read the estimate downstream with $node["Estimate Shipping"].result.payload.days. If the estimator is unavailable the node fails, so add an error branch that writes the order with a default estimate rather than dropping it.

---

Fire-and-Forget Audit Trail

Scenario: Every processed batch should be recorded in an audit store, but the recording must never slow the line down or fail the run.

Invoke Async Configuration:

• Function Name or URL: audit-writer
• Payload:

{
  "batchId": "((batchId))",
  "line": "((line))",
  "recordCount": ((recordCount))
}

Pipeline Integration: Connect the Invoke Async node to the end of the processing branch. The node returns immediately and the pipeline finishes without waiting. Remember that a failure after dispatch is only visible in the connection's logs — if the audit trail is a compliance requirement rather than a convenience, use the synchronous Invoke so a failure fails the run.

---

Dispatch by Naming Convention

Scenario: Each site has its own transform function, named transform-<site>, and the pipeline serves every site.

Invoke Configuration:

• Function Name or URL: transform-((site))
• Payload: ((payload))

Pipeline Integration: The site comes from the trigger data, so one node serves every site. Each distinct name is resolved once and cached, so a pipeline that sees five sites makes five Admin API lookups for the life of the connection, not one per message.

---

Inventory Audit Across Regions

Scenario: Compliance requires a periodic inventory of every deployed function, its generation and its runtime.

Function: List Functions with Region Override -

Pipeline Integration: Schedule a daily pipeline that runs List Functions, iterates result.functions with a ForEach node, and writes the rows to an audit table (BigQuery, PostgreSQL, or Cloud Storage). Assert that result.unreachable is absent before treating the inventory as complete.

Troubleshooting

Symptom	Likely cause	What to do
Connection never reaches Connected	The identity lacks cloudfunctions.functions.list	Grant roles/cloudfunctions.viewer on the project, or a custom role with that permission. The probe runs regardless of which functions you intend to call.
googleapi: Error 403: caller has no access to project …	Wrong Project ID, or the key belongs to another project	Check the Project ID field against the key's project_id.
Invoke answers 403 and the function exists	Invocation Auth is none, or the identity lacks run.invoker	Set Invocation Auth to oidc, and grant roles/run.invoker on the function's underlying Cloud Run service (2nd gen) or roles/cloudfunctions.invoker (1st gen).
has no HTTPS trigger — it is event-driven	The function is event-driven (Pub/Sub, Storage, Firestore) or still deploying	Only HTTP-triggered functions can be invoked this way. Trigger an event-driven function through its own event source.
A redeployed function stops resolving	The cached trigger URL is stale	The cache is dropped automatically when the trigger answers 404. If the function was renamed, update the node's Function Name.
Invoke Async reports success but nothing happened	The failure occurred after dispatch	Check the connection's logs for the warning. Switch to the synchronous Invoke if the pipeline must know.
credentialsJson: must be the service account JSON key itself	A file path or a truncated paste was entered	Paste the whole JSON object, including type, client_email and private_key.
