AWS IoT Core Integration Guide

AWS IoT Core is Amazon's managed MQTT broker and device registry. This connector speaks the same MQTT 3.1.1 wire protocol devices use, so a pipeline can publish telemetry onto any topic, subscribe to commands coming back down, and keep a thing's device shadow in step with what the plant floor actually reports.

Overview

The AWS IoT Core connector provides:

• Publish to any MQTT topic, with Store & Forward buffering across broker outages
• Subscribe to topic filters (+ and # wildcards) as a pipeline trigger
• Device shadow reads and writes, on the classic shadow or a named one
• Shadow delta triggers that fire when desired and reported state diverge
• Two authentication methods: an X.509 device certificate over mutual TLS, or IAM credentials over a SigV4-signed WebSocket
• Port 443 with ALPN for networks that block 8883

Companion protocols

Pair a subscribe trigger with an OPC UA or Modbus write to apply cloud-issued commands on the shop floor, then close the loop with a shadow update so AWS can see what the device actually did.

Before you start

You need three things from AWS:

1. The data endpoint for your account. Find it under AWS IoT → Settings, or run:

   aws iot describe-endpoint --endpoint-type iot:Data-ATS

   It looks like a1b2c3d4e5f6g7-ats.iot.eu-central-1.amazonaws.com. Enter the bare host name — no https://, no path.

2. A credential. Either a device certificate and private key (created under AWS IoT → Security → Certificates, downloaded once at creation), or an IAM access key pair.

3. An IoT policy attached to that certificate or IAM identity, allowing at minimum iot:Connect on the client ID, plus iot:Publish, iot:Subscribe and iot:Receive on the topics the connection will use. A policy that omits a topic does not produce an error on that topic — AWS IoT Core disconnects the whole client.

Connection Configuration

Creating an AWS IoT Core connection

Navigate to Connect → New Connection → AWS IoT Core and configure the fields below.

1. Profile information

Field	Default	Description
Profile Name	-	A descriptive name for this connection profile (required, max 100 characters)
Description	-	Optional description for this connection
Labels	-	Key-value labels for organizing connections

2. Connection

Field	Default	Description
Device Data Endpoint	-	The account's AWS IoT data endpoint, as a bare host name (required)
AWS Region	us-east-1	The region the endpoint belongs to. Used to sign the WebSocket handshake under SigV4 (required)
MQTT Client ID	-	The client ID presented in the MQTT CONNECT packet (required, max 128 bytes)
Default Thing Name	-	The thing whose shadow the shadow functions read and write when they do not name one themselves

One connection per client ID

AWS IoT Core allows a single live connection per client ID. A second connection presenting the same ID disconnects the first, and the two then flap indefinitely. Give every MaestroHub connection profile its own client ID, and do not reuse an ID a device is already using.

3. Authentication

Field	Default	Description
Authentication Method	X.509 Device Certificate	X.509 Device Certificate (mutual TLS) or IAM Credentials (SigV4 over WebSocket)

X.509 device certificate — how a provisioned thing connects:

Field	Required	Description
Device Certificate (PEM)	Yes	The certificate AWS IoT Core issued for this thing, and which its policy is attached to
Device Private Key (PEM)	Yes	The matching private key. AWS shows it once, at certificate creation

IAM credentials (SigV4) — how a server-side application connects:

Field	Required	Description
Access Key ID	No	Leave both key fields empty to use the AWS SDK default credential chain — environment variables, shared config, an IAM role, or IRSA
Secret Access Key	Conditional	Required when Access Key ID is set
Session Token	No	Only needed with temporary credentials from AWS STS

Credentials are encrypted at rest and never logged. Once saved, secret fields show a stored-securely marker; leave them empty on edit to keep the existing value.

4. Advanced

Field	Default	Description
CA Certificate (PEM)	-	Leave empty to trust the host's certificate pool, which already carries the Amazon Trust Services roots AWS IoT Core presents
Broker Port	8883	MQTT port for X.509 connections. Set it to 443 when the network blocks 8883 — the connector then negotiates the x-amzn-mqtt-ca ALPN protocol, which is how AWS IoT Core serves MQTT on the HTTPS port. Ignored under SigV4, which always uses 443
Keep Alive	30s	MQTT keep-alive interval. AWS IoT Core accepts 30s to 1200s and disconnects a client that misses 1.5 intervals
Connection Timeout	30s	Bound on the TCP dial, TLS handshake and CONNACK wait

Testing the connection

Test Connection opens a real MQTT session against the endpoint. It fails on a rejected certificate, a denied iot:Connect, a client ID already in use, and an unreachable endpoint — all of which show the broker's own reason.

Health checks

How MaestroHub checks a live connection depends on whether you set a Default Thing Name:

• With a thing name — the health check is a real shadow read: the request leaves, the Device Shadow service answers, and a broker that has stopped answering surfaces as unhealthy. This needs iot:Subscribe and iot:Receive on that thing's shadow topics.
• Without one — there is no shadow to read, so the check falls back to socket liveness. That still notices a dead link through the MQTT keep-alive, but it cannot tell a live socket from a policy that denies every topic.

The connection log says which of the two is in force at connect time.

Functions

Each function is one operation on the connection. Create them from the Functions tab once the connection is saved.

Zoom

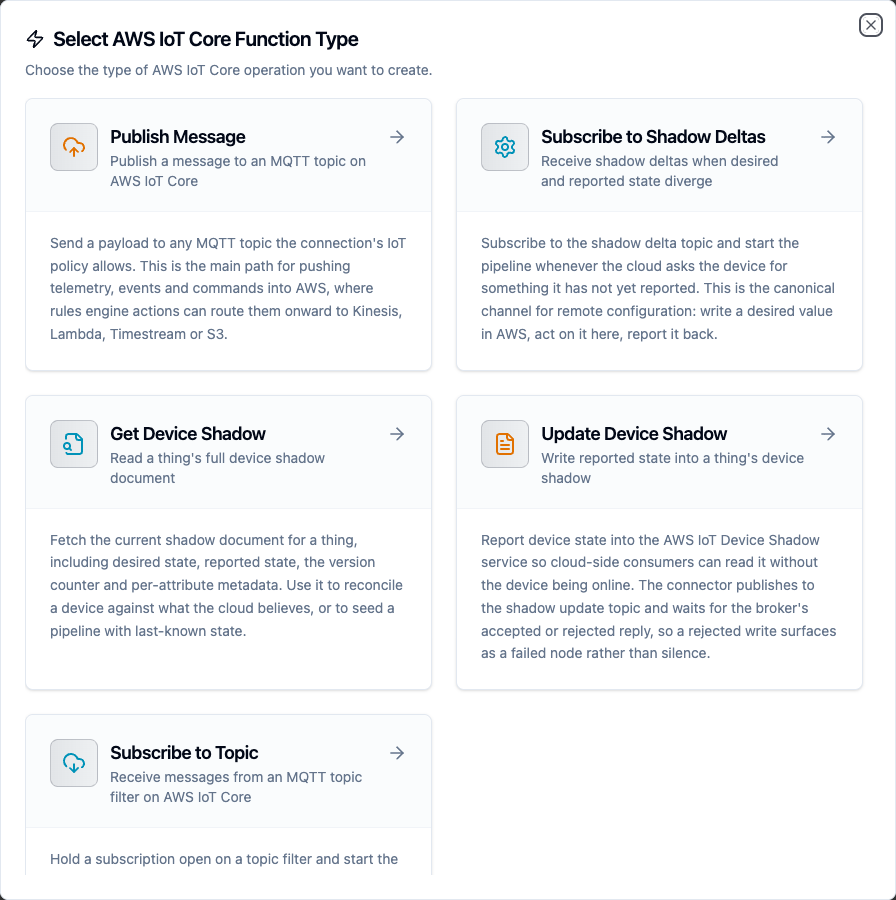

Choosing an AWS IoT Core function type

Function	Type	Used as	Purpose
Publish Message	awsiot.publish	Pipeline node	Send a payload to an MQTT topic
Subscribe to Topic	awsiot.subscribe	Trigger	Start a pipeline on each message matching a topic filter
Update Device Shadow	awsiot.shadow.update	Pipeline node	Write reported state into a thing's shadow
Get Device Shadow	awsiot.shadow.get	Pipeline node	Read a thing's full shadow document
Subscribe to Shadow Deltas	awsiot.shadow.delta	Trigger	Start a pipeline when desired and reported state diverge

Publish Message

Parameter	Type	Required	Default	Description
Topic	String	Yes	-	The MQTT topic to publish to. At most 256 bytes and 7 forward slashes
Payload	String	Yes	-	The message body. Objects are serialized as JSON; strings are sent as-is. At most 128 KB
QoS	Number	No	0	0 (at most once) or 1 (at least once). AWS IoT Core does not support QoS 2
Retain	Boolean	No	false	Store the message as the topic's retained message, so the next subscriber receives it immediately on subscribe
Timeout	Duration	No	30m	Bound on this single publish, including the PUBACK wait at QoS 1

Topic and payload both accept ((parameterName)) templates, so one function can serve a whole fleet.

Subscribe to Topic

Parameter	Type	Required	Default	Description
Topic Filter	String	Yes	-	The filter to subscribe to. + matches one level, # matches the rest of the topic and must be last
QoS	Number	No	0	1 asks the broker to redeliver until the message is acknowledged

The message body reaches the pipeline as it arrived on the wire. See the Subscribe trigger node for the event shape.

Update Device Shadow

Parameter	Type	Required	Default	Description
Reported State	Object	Yes	-	JSON object written under state.reported. The whole document is capped at 8 KB
Thing Name	String	No	Connection default	The thing whose shadow to update
Shadow Name	String	No	Classic shadow	The named shadow to update
Timeout	Duration	No	10s	How long to wait for the shadow service's accepted or rejected reply

The write waits for the service's reply, so a rejected write fails the node with the service's own code and message rather than passing silently.

Get Device Shadow

Parameter	Type	Required	Default	Description
Thing Name	String	No	Connection default	The thing whose shadow to read
Shadow Name	String	No	Classic shadow	The named shadow to read
Timeout	Duration	No	10s	How long to wait for the shadow service's accepted or rejected reply

Subscribe to Shadow Deltas

Parameter	Type	Required	Default	Description
Thing Name	String	No	Connection default	The thing whose shadow deltas to listen for
Shadow Name	String	No	Classic shadow	The named shadow to listen on

Function parameters

Templated fields turn into function parameters automatically. Fill them in the Test dialog to try the function before wiring it into a pipeline.

Zoom

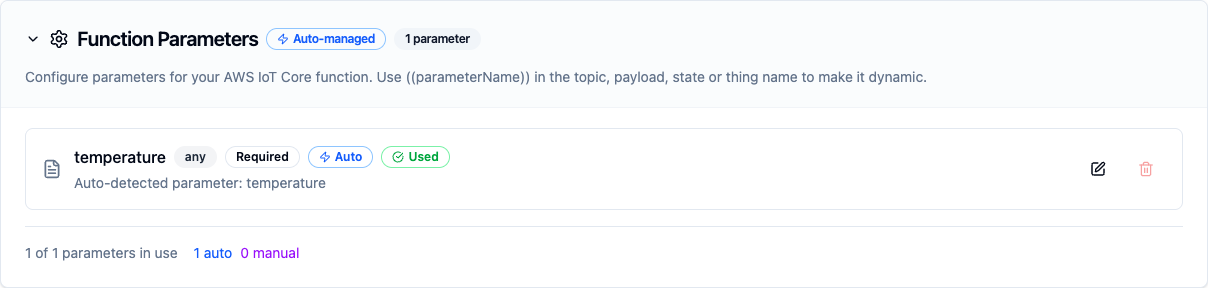

Templated fields become function parameters

Store & Forward

awsiot.publish and awsiot.shadow.update are eligible for Store & Forward: when the broker is unreachable, the payload is buffered durably and replayed once the connection recovers.

Store & Forward is not a per-connection switch on this form. Turn it on for the connection under Orchestrate → Store & Forward, then pick a delivery mode on each pipeline node that sends to this endpoint.

Shadow writes are buffered with a max-age cap rather than indefinitely: a shadow is last-writer-wins per thing, so replaying a stale report hours later would overwrite a fresher value.

Limits

AWS IoT Core enforces these; the connector refuses an oversized request before it reaches the wire, because the broker's own answer to one is to close the connection with no error payload.

Limit	Value
MQTT message payload	128 KB
Shadow state document	8 KB
Topic name	256 bytes, at most 7 forward slashes
Client ID	128 bytes
Subscriptions per connection	50
Publish requests per second, per connection	100

Troubleshooting

Symptom	Cause	Fix
Test Connection reports "not Authorised"	The IoT policy does not allow iot:Connect for this client ID	Check the policy attached to the certificate or IAM identity; iot:Connect is scoped to client/<clientId>
The connection flaps between connected and disconnected	Two clients share one client ID	Give each connection profile its own client ID
Test Connection reports a certificate error	The certificate is inactive, revoked, or from another account	Confirm the certificate is ACTIVE under AWS IoT → Security → Certificates
The connection is healthy but a publish never arrives	The policy allows iot:Connect but not iot:Publish on that topic	Add the topic to the policy. AWS answers an unauthorized publish by closing the connection, so watch the connection state while testing
Shadow functions time out	The policy does not grant iot:Subscribe and iot:Receive on the shadow reply topics	Grant both on $aws/things/<thing>/shadow/*
Nothing connects on port 8883	The network blocks 8883	Set Broker Port to 443; the connector then uses ALPN, which AWS IoT Core serves MQTT behind on the HTTPS port
