Google Cloud Dataflow Integration Guide

Connect to Google Cloud Dataflow to run Apache Beam stream and batch pipelines from MaestroHub. This guide covers connection setup, function configuration, and pipeline integration.

Overview

Dataflow is GCP's managed runner for Apache Beam. The connector covers three things a pipeline needs from it:

• Launching — start a job from a Flex Template or a classic template, with per-launch parameters and worker overrides
• Following — read a job's state and timings, list the jobs in a region, read its metric snapshot, and read the log messages that say why it failed
• Stopping — cancel a job outright, or drain a streaming one so buffered work finishes first
• Flexible authentication — a service-account key, or Application Default Credentials (GKE Workload Identity, GOOGLE_APPLICATION_CREDENTIALS, the GCE metadata server)

Launched, not waited on

Dataflow jobs run for minutes to hours. Launch Flex Template and Launch Classic Template return as soon as Dataflow accepts the request — they do not block until the pipeline finishes. Pair them with Get Job in a later node to read the state, so a two-hour job never holds a MaestroHub pipeline open.

Dataflow is regional

A job launched in us-central1 is invisible from europe-west1. The region is set on the connection, and every function on that connection addresses jobs in it.

Connection Configuration

Creating a Dataflow Connection

Go to Connect, click New Connection, and choose Google Cloud Dataflow.

1. Profile Information

Field	Required	Description
Profile Name	Yes	A descriptive name for this connection
Description	No	Free text
Labels	No	Key/value labels for organisation

2. Project & Region

Field	Required	Description
Project ID	Yes	The Google Cloud project that owns the Dataflow jobs
Region	Yes	The Dataflow regional endpoint holding the jobs, e.g. us-central1. Pick Custom Region… for a region not in the list

3. Authentication

Field	Required	Description
Service Account JSON Key	No	The whole service-account key file. Leave empty to use Application Default Credentials

Leaving the key empty is the right choice on GKE with Workload Identity, or anywhere GOOGLE_APPLICATION_CREDENTIALS is set. A pasted value that is not a service-account key is refused at save time, naming what is wrong — a console URL and an authorized_user key are the two common mistakes.

4. Advanced

Field	Required	Description
Custom Endpoint	No	A different Dataflow API endpoint, for an emulator or a private service endpoint. Leave empty for Google Cloud
Request Timeout	No	Default bound on a single Dataflow API call (1s–1h, default 30s)

The timeout bounds the API call, not the job

Request Timeout bounds the HTTP call to Dataflow. The job it launches runs on Google Cloud and is not bounded by it — a launch returns in under a second whether the job then runs for one minute or four hours.

IAM Permissions

The connection test calls dataflow.jobs.list. The roles/dataflow.developer role covers every function in this connector:

Operation	Permission
Launch Flex Template	dataflow.jobs.create
Launch Classic Template	dataflow.jobs.create
Get Job	dataflow.jobs.get
List Jobs	dataflow.jobs.list
Cancel or Drain Job	dataflow.jobs.update
Get Job Metrics	dataflow.jobs.get
List Job Messages	dataflow.messages.list

A launch additionally needs:

• iam.serviceAccounts.actAs on the worker service account — the project's Compute Engine default service account unless the function overrides it
• read access to the Cloud Storage bucket holding the template

Testing the Connection

Test Connection issues a one-item jobs.list against the configured project and region. It proves three things at once: the project exists, the region is enabled for Dataflow, and the credentials carry the role. A project with no jobs is still a successful test.

Function Builder

Creating Dataflow Functions

Open a saved connection, go to the Functions tab, and click New Function. The picker shows all seven operations:

Zoom

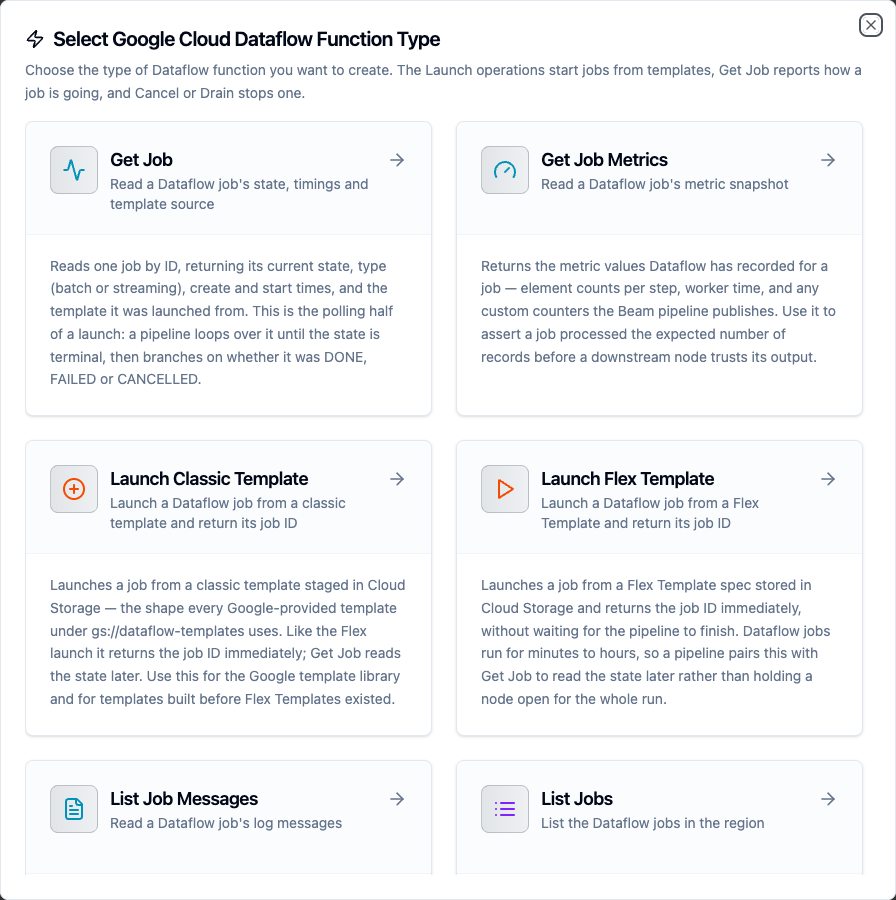

Choosing a Dataflow function type

Launch Flex Template Function

Launches a job from a Flex Template spec in Cloud Storage and returns the job ID.

Field	Required	Description
Job Name	Yes	Name for the new job. Must be unique among running jobs in the region, start with a lowercase letter, and contain only lowercase letters, digits and hyphens. Templatable
Template Spec Path	Yes	Cloud Storage path of the Flex Template spec file, e.g. gs://my-bucket/templates/aggregate.json. Templatable
Template Parameters (JSON object)	No	JSON object of template parameters. Dataflow requires string values, so numbers and booleans must be quoted. Templatable
Machine Type	No	Worker machine type for this launch, e.g. n1-standard-4
Max Workers	No	Autoscaling ceiling for this launch (1–1000)
Initial Workers	No	Starting worker count (1–1000). Cannot exceed Max Workers
Worker Service Account	No	The identity the workers run as. Empty uses the project's Compute Engine default
Temp Location	No	Cloud Storage path for temporary files
Subnetwork	No	regions/REGION/subnetworks/SUBNETWORK. Empty uses the default network
Timeout	No	Bound on the Launch API call itself

Result:

{
  "jobId": "2026-09-24_03_15_22-1234567890123456789",
  "jobName": "nightly-aggregation",
  "jobType": "JOB_TYPE_BATCH",
  "region": "us-central1",
  "createTime": "2026-09-24T03:15:22Z"
}

jobName is the name Dataflow accepted, which can differ from the one asked for when Dataflow disambiguates. Dataflow reports no state on a launch, so the job's first state — and every one after it — come from Get Job.

Template parameters are strings

{"maxRows": 5000} is rejected: Dataflow's template parameters are a string→string map, so write {"maxRows": "5000"}. The error names the offending key.

Paths are gs://, not console URLs

A https://console.cloud.google.com/storage/… link is a browser URL, not a Cloud Storage path. Both launch functions refuse it at save time; Dataflow itself would report only a generic "unable to read template".

Launch Classic Template Function

Launches a job from a classic template staged in Cloud Storage — the shape every Google-provided template under gs://dataflow-templates uses.

Field	Required	Description
Job Name	Yes	As above. Templatable
Template Path	Yes	Cloud Storage path of the staged classic template, e.g. gs://dataflow-templates/latest/PubSub_to_BigQuery. Templatable
Template Parameters (JSON object)	No	As above. Templatable
Machine Type, Max Workers, Initial Workers, Worker Service Account, Temp Location, Subnetwork	No	As above. Classic templates usually require Temp Location
Timeout	No	Bound on the Launch API call itself

The result shape is identical to the Flex launch.

Get Job Function

Reads one job by ID. This is the polling half of a launch.

Field	Required	Description
Job ID	Yes	The job ID returned by a launch. Templatable
Timeout	No	Bound on this single operation

Result:

{
  "jobId": "2026-09-24_03_15_22-1234567890123456789",
  "jobName": "nightly-aggregation",
  "currentState": "JOB_STATE_DONE",
  "currentStateTime": "2026-09-24T03:41:08Z",
  "requestedState": "",
  "jobType": "JOB_TYPE_BATCH",
  "region": "us-central1",
  "createTime": "2026-09-24T03:15:22Z",
  "startTime": "2026-09-24T03:16:40Z",
  "sdkVersion": "2.58.0",
  "labels": {"env": "prod"}
}

Every key is always present. startTime is empty while the job is still queued — that is how a polling loop tells a queued job from a running one without parsing the state string. requestedState is empty on a job nobody has asked to stop.

The job's template path is not returned: it lives in the job's Beam pipeline options, which the summary view Dataflow serves here does not include. Fetching the full view to recover one string would ship the whole serialized pipeline graph on every poll. For a Google-provided template the job's labels name it instead.

List Jobs Function

Returns the jobs in the configured region.

Field	Required	Description
Filter	No	ALL, ACTIVE (running and starting) or TERMINATED (done, failed, cancelled, drained). Applied by Dataflow
Name Filter	No	Case-sensitive substring the job name must contain. Templatable
Max Items	No	Maximum jobs to return (1–1000, default 100)
Timeout	No	Bound on this single operation

Result:

{
  "jobs": [
    {
      "jobId": "2026-09-24_03_15_22-1234567890123456789",
      "jobName": "nightly-aggregation",
      "currentState": "JOB_STATE_DONE",
      "currentStateTime": "2026-09-24T03:41:08Z",
      "jobType": "JOB_TYPE_BATCH",
      "region": "us-central1",
      "createTime": "2026-09-24T03:15:22Z"
    }
  ],
  "jobCount": 1,
  "truncated": false
}

jobs is always a list — empty rather than absent — so a ForEach over a region with no jobs does nothing rather than failing on a missing source.

Filter is server-side; Name Filter is not

Dataflow applies Filter itself. It offers no server-side name filter, so Name Filter narrows what the page returned. The connector reads full pages while a name filter is set, so a match further down the region is still found.

Cancel or Drain Job Function

Asks Dataflow to stop a running job.

Field	Required	Description
Job ID	Yes	The job to stop. Templatable
Requested State	Yes	JOB_STATE_CANCELLED stops at once and discards in-flight data. JOB_STATE_DRAINED stops ingestion and lets buffered work finish — streaming jobs only
Timeout	No	Bound on the Update API call itself

Result:

{
  "jobId": "2026-09-24_03_15_22-1234567890123456789",
  "jobType": "JOB_TYPE_BATCH",
  "requestedState": "JOB_STATE_CANCELLED"
}

This tells you what was asked, not what happened

Dataflow answers a state change with almost nothing — it reports no state of its own. The result carries the job, its type, and the state that was requested. Use Get Job to watch the job reach JOB_STATE_CANCELLING / JOB_STATE_DRAINING and then its terminal state.

Draining a batch job is refused by Dataflow — only a streaming job can be drained.

Get Job Metrics Function

Returns the metric values Dataflow recorded for a job.

Field	Required	Description
Job ID	Yes	The job whose metrics to read. Templatable
Since	No	RFC 3339 timestamp; only metrics that changed after this instant are returned. Templatable
Max Items	No	Maximum metric entries (1–5000, default 500)
Timeout	No	Bound on this single operation

Result:

{
  "metrics": [
    {
      "name": "ElementCount",
      "origin": "dataflow/v1b3",
      "step": "WriteToBigQuery",
      "kind": "sum",
      "value": 184320,
      "cumulative": true,
      "updateTime": "2026-09-24T03:41:02Z"
    }
  ],
  "metricCount": 1,
  "metricTime": "2026-09-24T03:41:05Z",
  "truncated": false
}

value is whichever of Dataflow's typed value fields this metric's kind populated, so a downstream expression reads one key rather than probing six. Counters the Beam pipeline publishes itself appear with origin: "user".

List Job Messages Function

Returns the messages Dataflow logged for a job.

Field	Required	Description
Job ID	Yes	The job whose messages to read. Templatable
Minimum Importance	No	JOB_MESSAGE_DEBUG, _DETAILED, _BASIC (default), _WARNING or _ERROR
From / Until	No	RFC 3339 window bounds. Templatable
Max Items	No	Maximum messages (1–1000, default 100)
Timeout	No	Bound on this single operation

Result:

{
  "messages": [
    {
      "id": "msg-8a1f3c5e",
      "importance": "JOB_MESSAGE_ERROR",
      "text": "Workflow failed. Causes: The template parameters were invalid.",
      "time": "2026-09-24T03:40:11Z"
    }
  ],
  "messageCount": 1,
  "truncated": false
}

This is where a failure says why

A failed job records the cause here and nowhere else in the Dataflow API. JOB_STATE_FAILED from Get Job tells you that it failed; JOB_MESSAGE_ERROR from this function tells you why. An alert that carries both is the one an operator can act on.

Using Parameters

Any field marked templatable accepts ((parameterName)). Parameters are detected as you type and listed in the Function Parameters card:

Zoom

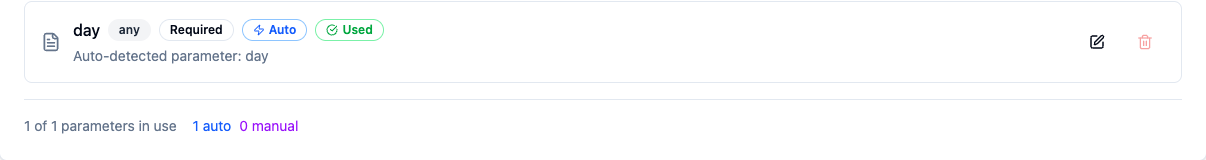

A parameter detected from ((day)) in the template parameters

A pipeline supplies their values at execution time, so one Launch function can serve every day of a backfill, and one Get Job function can follow whichever job a launch produced.

Pipeline Integration

Each function becomes a node in the pipeline editor under Databases. See the Google Cloud Dataflow node reference for node-level configuration.

The shape that comes up most often is launch → wait → read:

1. Launch Flex Template starts the job and emits jobId
2. A Delay node waits
3. Get Job reads the state using $node["Launch Flex Template"].result.jobId
4. A Condition node branches on currentState — loop back to the delay while it is JOB_STATE_RUNNING, continue on JOB_STATE_DONE, and on JOB_STATE_FAILED run List Job Messages to collect the cause

Common Use Cases

Nightly aggregation with a per-day parameter

Launch Flex Template with {"inputDate": "((day))"} runs the same template for whichever day the trigger supplies. The job ID goes into an execution log; Get Job reads the outcome on the next pass.

Blue/green redeploy of a streaming job

Cancel or Drain Job with JOB_STATE_DRAINED stops the old streaming job without losing buffered work, Get Job waits for it to reach JOB_STATE_DRAINED, and Launch Classic Template starts the replacement.

Failure alerts that carry the cause

A pipeline polls Get Job; on JOB_STATE_FAILED it calls List Job Messages with Minimum Importance JOB_MESSAGE_ERROR and posts the text to Slack, so the alert names the failure instead of a bare state.

Asserting a load before trusting it

Get Job Metrics reads the ElementCount for the write step; a Condition node compares it against the expected row count before a downstream node consumes the output.

Troubleshooting

Symptom	Cause	Fix
Dataflow found nothing at …	Wrong project ID, region, or job ID	Use List Jobs on the same connection to see what exists in that region
the credentials cannot use Dataflow in project … region …	The service account lacks the Dataflow role	Grant roles/dataflow.developer
no Google credentials available for …	No key pasted and ADC does not resolve here	Paste a service-account key, or run where Workload Identity / GOOGLE_APPLICATION_CREDENTIALS is available
Service account key must be valid JSON	A console URL or a partial file was pasted	Paste the whole key file
This is a "authorized_user" key, not a service-account key	A gcloud user credential was pasted	Download a key for a service account instead
Job name must start with a lowercase letter…	Uppercase or an invalid character in the job name	Use lowercase letters, digits and hyphens
Template spec path must be a Cloud Storage path beginning with gs://	A console URL was pasted	Use the gs:// path
Value of "x" must be a string	A template parameter is a number or boolean	Quote it: {"x": "5000"}
Initial Workers cannot exceed Max Workers	The worker override pair is inconsistent	Lower Initial Workers, or raise Max Workers
Draining is only supported for streaming jobs	Drain was requested on a batch job	Use JOB_STATE_CANCELLED
requestedState must be JOB_STATE_CANCELLED or JOB_STATE_DRAINED	Another state reached the API	Dataflow treats other states as a silent no-op; the connector refuses them instead
Listing looks short	The Max Items budget stopped it	Raise Max Items; truncated in the result says the cut happened
A launched job has no template parameters	The parameters JSON was empty or its placeholders were unresolved	Supply values for every ((name)) the field uses — an unresolved placeholder resolves to an empty string
