Microsoft Teams Integration Guide

Integrate Microsoft Teams with MaestroHub to send automated notifications, alerts, and production updates directly to your team channels. This comprehensive guide covers everything from Azure AD app registration to sending messages in your pipelines.

Overview

The Microsoft Teams connector enables you to:

• Send channel messages to notify teams about production events, alerts, and workflow updates
• Authenticate via OAuth 2.0 with secure, user-delegated permissions through Microsoft Graph API
• List teams and channels programmatically to dynamically route messages
• Automate notifications for quality issues, machine status changes, work order updates, and more

Microsoft Graph API

The MS Teams connector uses Microsoft Graph API with OAuth 2.0 delegated permissions. This means the connection authenticates as a specific user who must have access to the teams and channels where messages will be sent.

Prerequisites

Before creating a Microsoft Teams connection in MaestroHub, you need to:

1. Azure Account: Have access to Microsoft Azure Portal
2. Azure AD Tenant: Have an Azure Active Directory tenant (organization directory)
3. App Registration Permissions: Ability to register applications in Azure AD (admin privileges may be required)
4. Microsoft Teams Access: The user who authenticates must be a member of the Teams where messages will be sent

Admin Approval

In enterprise environments with Microsoft Entra ID (Azure AD), you may need administrator approval to grant API permissions to your application. Contact your IT administrator if you encounter permission request errors during authentication.

Azure AD Application Setup

Step 1: Register an Application and Configure Redirect URI

Register an application in Azure AD and configure the OAuth callback URL:

1. Open the Microsoft Application Registration Portal

2. Click + New registration

3. Enter an application name (e.g., MaestroHub MS Teams Integration)

4. Under Supported account types, select:

   • Accounts in this organizational directory only (single tenant) - Recommended for most organizations
   • OR Accounts in any organizational directory (multi-tenant) - If multiple tenants need access

5. Under Redirect URI (optional):

   • Select a platform: Choose Web from the dropdown
   • Redirect URI: Copy the URI from MaestroHub's MS Teams connection creation page and paste it here
   Getting the Redirect URI from MaestroHub

   1. Open MaestroHub and navigate to Connections → New Connection → Microsoft Teams
   2. In the connection form, you'll see the Redirect URI field (auto-populated)
   3. Copy this URI value (e.g., https://your-domain.com/connect/msteams/oauth/callback)
   4. Paste it into the Azure AD registration form

6. Click Register

After registration, you'll see the application's Overview page.

Step 2: Generate Client Secret

Create a client secret for secure authentication:

1. Navigate to Certificates & secrets in the left sidebar
2. Under Client secrets, click + New client secret
3. Enter a description (e.g., MaestroHub Secret)
4. Select an expiration period:
   • 6 months or 12 months (requires manual renewal)
   • 24 months (recommended for production stability)
   • Custom - set your own expiration date
5. Click Add
6. Important: Copy the Value immediately - you cannot view it again after leaving this page

Step 3: Configure API Permissions

Grant the application permissions to access Microsoft Graph API on behalf of users:

1. Navigate to API permissions in the left sidebar
2. Click + Add a permission
3. Select Microsoft Graph
4. Choose Delegated permissions (not Application permissions)
5. Add the following permissions:

Required Permissions

Permission	Type	Purpose
User.Read	Delegated	Sign in and read user profile (always required for OAuth)
ChannelMessage.Send	Delegated	Send messages to team channels

Refresh Token Access

When you grant any delegated permission, the offline_access scope is implicitly granted, allowing MaestroHub to obtain refresh tokens for long-lived access to resources on your behalf.

Optional Permissions (Recommended)

Permission	Type	Purpose
Team.ReadBasic.All	Delegated	List teams for dropdown selection in UI
Channel.ReadBasic.All	Delegated	List channels for dropdown selection in UI

Permission Impact

• Without optional permissions: You can still send messages by manually entering Team ID and Channel ID
• With optional permissions: MaestroHub can populate dropdown lists of teams and channels for easier configuration

6. After adding permissions, click Grant admin consent for [Your Organization]
   • This step requires Azure AD administrator privileges
   • Without admin consent, users will see a consent prompt when authenticating
   • In enterprise environments, this is typically required

Consent Requirements

If you see an error "Need admin approval" during authentication, an administrator must grant consent for the application. See the Microsoft documentation on admin consent.

Step 4: Summary - Information for MaestroHub

Before proceeding to MaestroHub, verify you have these values from Azure AD:

Value	Where to Find
Tenant ID	App registration → Overview → Directory (tenant) ID
Client ID	App registration → Overview → Application (client) ID
Client Secret	App registration → Certificates & secrets → Client secret value
Redirect URI	App registration → Authentication → Web redirect URI

You're now ready to create a Microsoft Teams connection in MaestroHub!

Connection Configuration

Creating a Microsoft Teams Connection

Navigate to Connections → New Connection → Microsoft Teams and configure the following:

Microsoft Teams Connection Creation Fields

1. Profile Information

Field	Default	Description
Profile Name	-	A descriptive name for this connection profile (required, max 100 characters)
Description	-	Optional description for this MS Teams connection

2. Azure AD OAuth Configuration

Field	Default	Description
Tenant ID	-	Azure AD tenant (directory) ID from your app registration - required
Client ID	-	Application (client) ID from your app registration - required
Client Secret	-	Client secret value from Azure AD (required, stored encrypted)
Redirect URI	{origin}/connect/msteams/oauth/callback	OAuth callback URL (must match Azure AD app configuration) - auto-populated

Important Configuration Notes

• Tenant ID: Found in Azure AD app registration → Overview → Directory (tenant) ID
• Client ID: Found in Azure AD app registration → Overview → Application (client) ID
• Client Secret: Created in Azure AD app registration → Certificates & secrets
• Redirect URI: Must exactly match the redirect URI configured in your Azure AD app registration

3. OAuth Authentication Flow

After filling in the Azure AD configuration, you must authenticate:

1. Click Connect with Microsoft button in the Security tab
2. A popup window opens, redirecting you to Microsoft login
3. Sign in with a Microsoft account that:
   • Belongs to the Azure AD tenant
   • Has access to Teams where you want to send messages
   • Has permissions granted for the scopes requested
4. Approve the permission consent (if admin consent wasn't granted)
5. Upon success, the popup closes and MaestroHub receives OAuth tokens

OAuth Token Management

• Access Token: Short-lived token (typically 1 hour) for API calls - stored encrypted
• Refresh Token: Long-lived token to renew access tokens - stored encrypted
• Token Expiry: Automatically tracked; MaestroHub refreshes tokens before expiration
• Re-authentication: Only needed if refresh token expires or permissions change

4. Connection Labels

Field	Default	Description
Labels	-	Key-value pairs to categorize and organize this MS Teams connection (max 10 labels)

Example Labels

• env: prod – Environment
• team: operations – Responsible team
• purpose: alerts – Connection purpose

Function Builder

Creating Microsoft Teams Functions

Once you have a connection established, you can create reusable messaging functions:

1. Navigate to Functions → New Function (or use the Functions tab in the connection editor)
2. Select Microsoft Teams as the function type
3. Choose the function operation (Send Message to Channel, Get Teams, Get Channels)
4. Configure function parameters

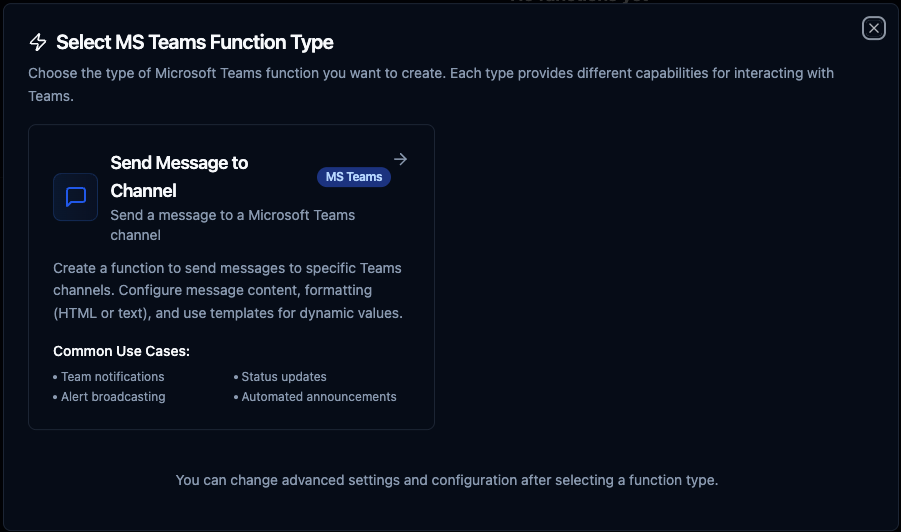

Create reusable MS Teams functions for messaging and team management

Send Message to Channel Function

Purpose: Send a text or HTML message to a specific Microsoft Teams channel. Ideal for automated notifications, alerts, production updates, and workflow status messages.

Configuration Fields

Field	Type	Required	Default	Description
Function Name	String	Yes	-	Descriptive name for this function (e.g., "Production Alert Notification")
Team ID	String	Yes	-	Microsoft Teams team ID where the channel exists. Supports parameters: ((teamId))
Channel ID	String	Yes	-	Microsoft Teams channel ID where the message will be sent. Supports parameters: ((channelId))
Content	String	Yes	-	Message content to send. Supports parameters: ((message)) or ((alertDetails))
Content Type	String	No	text	Message format: text (plain text) or html (HTML formatted)

Content Type Options

• text: Plain text messages (simple, no formatting)
• html: HTML formatted messages (rich formatting with tags like <b>, <i>, <br>, <a>)

Pipeline Integration

Use the Microsoft Teams functions you create here as nodes inside the Pipeline Designer to send notifications and integrate team collaboration into your automation workflows. Drag function nodes onto the canvas, bind parameters to upstream outputs or constants, and route messages based on your business logic.

For end-to-end orchestration ideas, such as combining MS Teams notifications with database queries, MQTT events, REST API calls, or OPC UA data, explore the Connector Nodes page.

MS Teams function node in the pipeline designer with connection, function, and parameter configuration

Common Use Cases

Production Line Alert Notification

Scenario: Notify the production team immediately when a machine fault is detected.

Pipeline Flow:

1. OPC UA Read node monitors machine status tag
2. Filter node detects status = "fault"
3. MS Teams Send Message node sends alert to "Production Alerts" channel

Function Configuration:

Function: Send Message to Channel
Team ID: ((productionTeamId))
Channel ID: ((alertsChannelId))
Content: ⚠️ <b>Machine Fault Detected</b><br>
         Machine: ((machineName))<br>
         Status: ((status))<br>
         Error Code: ((errorCode))<br>
         Action Required: Immediate inspection
Content Type: html

Pipeline Parameters (from Filter node output):

{
  "productionTeamId": "a1b2c3d4-1234-5678-90ab-cdef12345678",
  "alertsChannelId": "19:abc123def456@thread.tacv2",
  "machineName": "Press-03",
  "status": "fault",
  "errorCode": "E102 - Hydraulic Pressure Low"
}
