Amazon Redshift Integration Guide

Connect to Amazon Redshift to query a cloud data warehouse, land pipeline output in it, and move data between it and S3. This guide covers choosing a transport, connection setup, function configuration, and pipeline integration.

Overview

Amazon Redshift is AWS's cloud data warehouse for BI and historical analytics. The connector covers the warehouse verbs a pipeline needs — query, execute, write — plus the two S3 bulk paths and the catalog reads that make a warehouse navigable:

• Two transports, chosen per connection: the Redshift Data API, or a direct PostgreSQL-wire connection
• Query and execute arbitrary SQL, with ((parameter)) templating
• Write pipeline records to a table, creating or widening it to fit
• COPY from S3 for bulk loads and UNLOAD to S3 for exports
• Browse the schemas and tables a connection can see
• Works with both provisioned clusters and Redshift Serverless

Choosing a transport

This is the first decision, and the only one that is hard to change later — the two halves of the connection form are different sets of fields.

	Redshift Data API	Direct connection
How it reaches the warehouse	HTTPS to AWS, signed with IAM	PostgreSQL wire protocol, port 5439
Network route to the cluster	Not needed	Required — the cluster must be reachable from this MaestroHub instance
Credentials	AWS IAM, plus a database user or a Secrets Manager secret	A database username and password
Redshift Serverless behind a private VPC	The only option	Not reachable
Database per statement	Yes — a function can override it	No — a session is bound to one database
Best for	Cloud-hosted MaestroHub, Serverless workgroups, IAM-governed estates	A self-hosted instance with network access and database credentials

Pick Data API if you are unsure. It needs no network path to the cluster, which is the constraint that most often blocks the other one.

Both transports behave identically above the wire

Every operation returns the same result shape on either transport, so a pipeline built against one keeps working if you later point it at the other. The two differences that are visible to a pipeline are listed in the table above: the per-statement database override, and what a connection needs to reach the cluster at all.

Connection Configuration

Creating an Amazon Redshift Connection

Navigate to Connections → New Connection → Amazon Redshift and configure the following.

Zoom

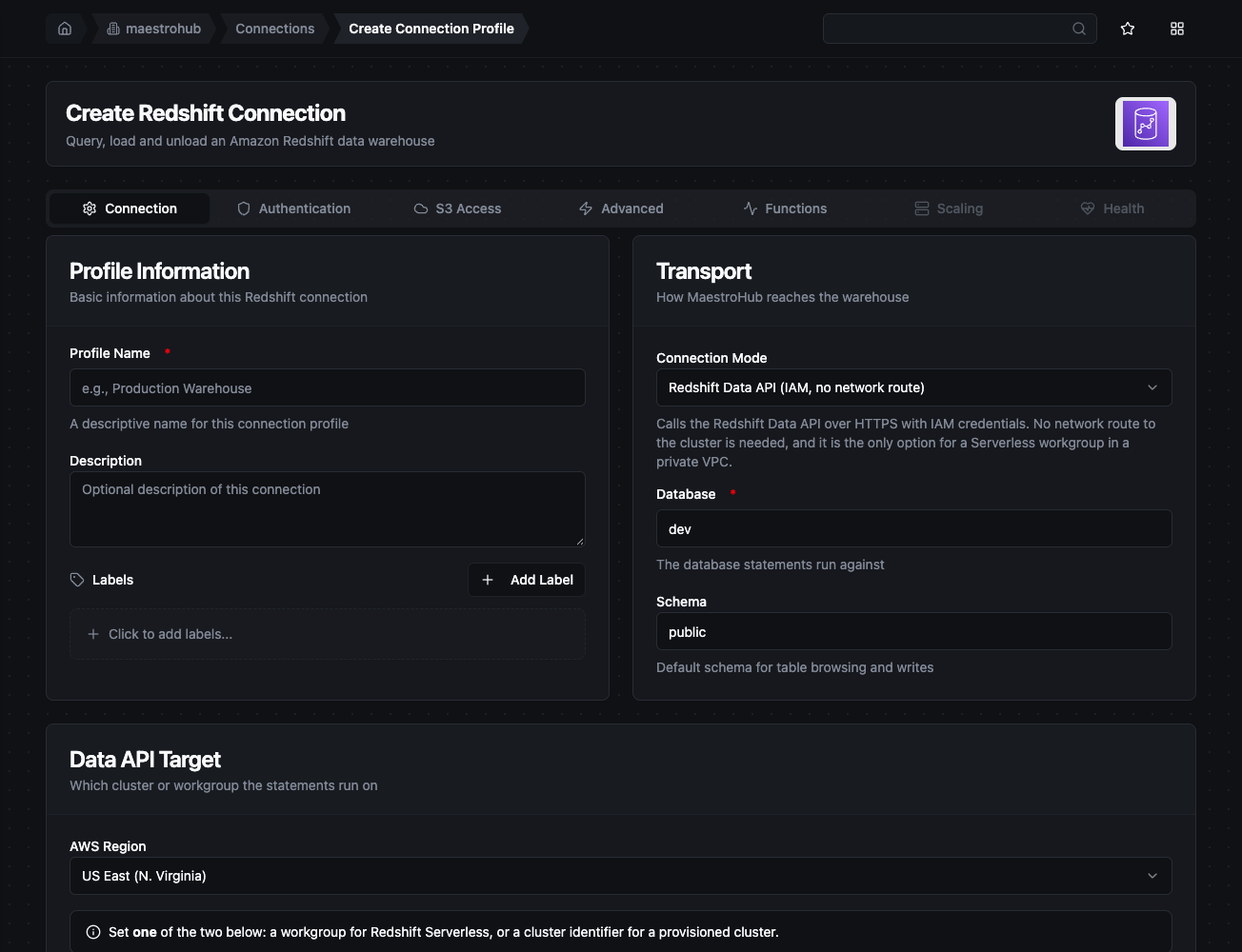

The transport selector decides which fields the rest of the form asks for

1. Profile Information

Field	Default	Description
Profile Name	-	A descriptive name for this connection profile (required, max 100 characters)
Description	-	Optional description for this connection

2. Transport

Field	Default	Description
Connection Mode	Redshift Data API	Which transport this connection uses. Changing it changes which fields below apply
Database	-	The database statements run against (required)
Schema	public	Default schema for table browsing and writes

3a. Data API Target — Data API mode only

Field	Default	Description
AWS Region	us-east-1	The region hosting the cluster or workgroup
Serverless Workgroup	-	Redshift Serverless workgroup name. Set this or Cluster Identifier, never both
Cluster Identifier	-	Provisioned cluster identifier. Set this or Serverless Workgroup, never both

3b. Cluster Endpoint — direct mode only

Field	Default	Description
Host	-	The cluster or workgroup endpoint hostname (required in direct mode)
Port	5439	Redshift's wire-protocol port

4a. Authentication — Data API mode

Field	Default	Description
Database User	-	Runs statements as this user using temporary IAM credentials. For a provisioned cluster, set this or a Secrets Manager ARN
Secrets Manager ARN	-	A secret holding the database credentials. Masked on edit
Access Key ID	-	AWS Access Key ID. Masked on edit. Leave empty to use the AWS SDK default credential chain (env vars, shared config, IAM role, IRSA)
Secret Access Key	-	AWS Secret Access Key. Masked on edit
Session Token	-	Session token for temporary STS credentials. Masked on edit

Prefer IAM roles over static keys

On EC2/ECS/EKS, leave the key fields empty and attach an IAM role (or IRSA) — the connector picks up credentials from the AWS SDK default chain, so no AWS secret is stored in MaestroHub. The identity needs redshift-data:* and, for a provisioned cluster with a Database User, redshift:GetClusterCredentials.

4b. Authentication — direct mode

Field	Default	Description
Username	-	Redshift database user (required in direct mode)
Password	-	Database password. Masked on edit
SSL Mode	require	disable, require, verify-ca, or verify-full
CA Certificate	-	PEM-encoded CA used to verify the server. Required for verify-ca and verify-full. Masked on edit

A cluster requires TLS

require is the default because Redshift refuses plaintext connections. disable exists for a local stand-in, not for a cluster. verify-full is the setting that actually checks you are talking to your cluster and not something in the middle — it needs the Redshift CA bundle in the CA Certificate field.

5. S3 Access

Field	Default	Description
Default IAM Role ARN	-	The role Redshift assumes to reach S3 during COPY and UNLOAD. Used when an operation supplies no role of its own

MaestroHub never touches the bucket

COPY and UNLOAD are executed by Redshift, which assumes this role itself. The role has to be attached to the cluster or workgroup, and MaestroHub needs no S3 permission of its own for either operation. Leave this empty if you will not use them.

6. Advanced

Field	Default	Description
Connection Timeout	30s	How long to wait for the connection, or for the Data API reachability probe
Max Result Rows	1000	Maximum rows a query returns before truncating (1–100000)
Poll Interval (Data API)	500ms	How often to poll statement status while waiting for one to finish
Custom Endpoint (Data API)	-	Point the Data API at a compatible service, for testing. Leave empty for AWS
Max Open / Idle Connections (direct)	10 / 5	Connection-pool sizing
Connection Max Lifetime / Idle Time (direct)	900s / 300s	How long a pooled connection lives, and how long it may sit idle

Notes

• Required fields: Profile Name and Database, plus Host and Username in direct mode, or a workgroup / cluster identifier in Data API mode.
• Row cap: result sets larger than Max Result Rows are truncated, and the call's metadata says so — read _metadata.truncated in a pipeline.
• Statement timeout: set it on the function (each operation has its own Timeout field), or on the connection profile itself. The connector does not add a third control. Whichever bound applies, direct mode pushes it into the session as a server-side statement_timeout, so a runaway query stops consuming a WLM slot rather than running on after the caller gives up, and Data API mode cancels the statement server-side when it expires.
• Security: the password, the CA certificate, the AWS keys, the session token and the Secrets Manager ARN are encrypted at rest and masked on edit. Leave a secret empty to keep the stored value.

Function Builder

Creating Redshift Functions

Once a connection exists, create reusable functions:

1. Open the connection and go to its Functions tab → New Function
2. Choose a Redshift function type
3. Configure the function parameters

Zoom

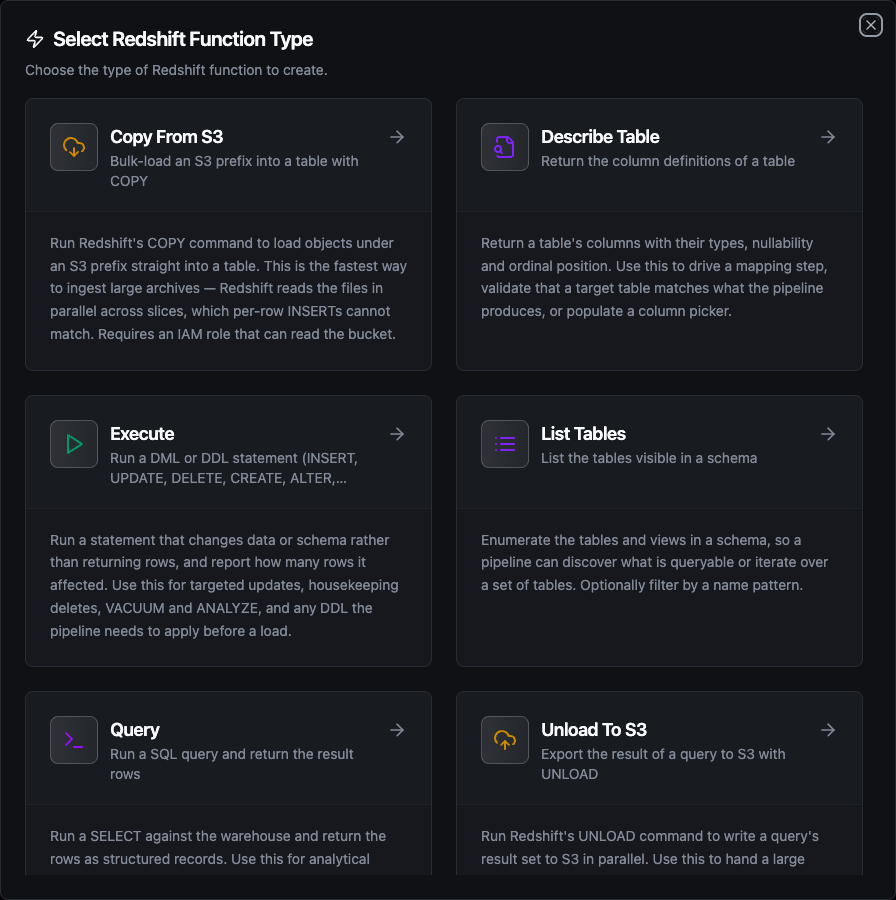

Seven function types: Query, Execute, Write, Copy From S3, Unload To S3, List Tables and Describe Table

Query Function

Purpose: run a SELECT and return the rows as structured records. This is the path for BI aggregates, historical reads, and enrichment lookups against warehouse tables.

Configuration Fields

Field	Type	Required	Default	Description
SQL Query	String	Yes	-	SQL to run. Supports ((param)) templating
Database	String	No	connection default	Override the connection's database. Data API mode only — see the note below
Max Rows	Number	No	connection default	Maximum rows to return (1–100000)
Timeout	Duration	No	30m	Bound on this statement

Example Configuration

{
  "sql": "SELECT machine_id, AVG(temperature) AS avg_temp FROM sensor_history WHERE day = '((day))' GROUP BY machine_id",
  "maxRows": 5000
}

Response Format

{
  "rows": [
    { "machine_id": "press-02", "avg_temp": 42.7 }
  ],
  "rowCount": 1
}

The Database override is Data API only

A direct connection is bound to one database for the whole session, so a per-statement override cannot take effect. Rather than run the statement against the wrong database, the connector refuses it and names the two ways forward: a second connection for that database, or switching this one to Data API mode.

Execute Function

Purpose: run a statement that changes data or schema rather than returning rows, and report how many rows it affected. Use it for targeted updates, housekeeping deletes, VACUUM and ANALYZE, and any DDL a pipeline applies before a load.

Configuration Fields

Field	Type	Required	Default	Description
SQL Statement	String	Yes	-	Statement to run. Supports ((param)) templating
Database	String	No	connection default	Data API mode only
Timeout	Duration	No	30m	Bound on this statement

Response Format

{ "rowsAffected": 3 }

rowsAffected is -1 when the statement type has no row count of its own — a DDL statement, for instance. That is passed through rather than flattened to 0, so "matched no rows" stays distinguishable from "not a counting statement".

Write Function

Purpose: insert pipeline records into a table, deriving the column list from the batch and optionally creating or widening the table to fit.

Configuration Fields

Field	Type	Required	Default	Description
Table Name	String	Yes	-	Target table. Supports ((param)) templating
Data	Any	Yes	((data))	Rows to write. ((data)) takes them from the upstream node; a literal JSON array writes a fixed batch
Schema Hints	Object	No	-	Column types for table creation, e.g. {"temp": "Float64"}. Without hints the types are inferred from the data
Create Table If Not Exists	Boolean	No	false	Create the table on first write
Allow Schema Evolution	Boolean	No	inherits Create Table	Add columns when the payload carries fields the table lacks
Batch Size	Number	No	500	Rows per INSERT statement
Timeout	Duration	No	30m	Bound on this operation

Response Format

{ "rowsInserted": 3 }

For bulk loads, use Copy From S3

Write inserts through the leader node, which is the right shape for pipeline output and the wrong one for large archives. Redshift's own guidance is to land the files in S3 and COPY them, which reads in parallel across slices. A few hundred rows per pipeline run is Write's territory; a few million is COPY's.

What "Allow Schema Evolution" turned off actually does

Left unset, it follows Create Table If Not Exists — the long-standing behaviour. Turned on, a batch carrying a new field adds the column. Turned explicitly off, a batch that would need a new column is refused, naming the fields — rather than dropping them silently, which loses data no one notices.

Copy From S3 Function

Purpose: run Redshift's COPY to load objects under an S3 prefix straight into a table.

Configuration Fields

Field	Type	Required	Default	Description
Table Name	String	Yes	-	Table to load into
S3 URI	String	Yes	-	Prefix or object to read, e.g. s3://ot-archive/2024/06/
Format	Enum	No	CSV	CSV, JSON, PARQUET or AVRO
IAM Role ARN	String	No	connection default	Overrides the connection's Default IAM Role ARN
Column List	String	No	-	Comma-separated columns, when the file layout is narrower than the table
Extra COPY Options	String	No	-	Clauses appended verbatim, e.g. IGNOREHEADER 1 TIMEFORMAT 'auto'
Timeout	Duration	No	30m	Bound on this operation

Example Configuration

{
  "table": "sensor_archive",
  "s3Uri": "s3://ot-archive/2024/06/",
  "format": "PARQUET",
  "iamRole": "arn:aws:iam::123456789012:role/RedshiftS3Access"
}

Response Format

{ "table": "sensor_archive", "s3Uri": "s3://ot-archive/2024/06/", "rowsLoaded": 148213 }

Unload To S3 Function

Purpose: run Redshift's UNLOAD to write a query's result set to S3 in parallel. Use it to hand a large extract to another system, or to stage data downstream without streaming every row through MaestroHub.

Configuration Fields

Field	Type	Required	Default	Description
SQL Query To Export	String	Yes	-	The query whose result set is written to S3
S3 Destination Prefix	String	Yes	-	Where the export is written; Redshift appends a part number per slice
Format	Enum	No	CSV	CSV, JSON or PARQUET — UNLOAD cannot write Avro
IAM Role ARN	String	No	connection default	Overrides the connection's Default IAM Role ARN
Parallel	Boolean	No	true	One file per slice. Off produces a single file
Allow Overwrite	Boolean	No	false	Overwrite existing files instead of failing
Extra UNLOAD Options	String	No	-	Clauses appended verbatim, e.g. GZIP MAXFILESIZE 100 MB
Timeout	Duration	No	30m	Bound on this operation

Response Format

{ "s3Uri": "s3://exports/readings_", "rowsUnloaded": 148213 }

The two "Extra options" fields are SQL, not values

Everything else a function takes is bound or quoted before it reaches the warehouse. The two options fields exist so you can append clauses this connector does not model, which means they are SQL by definition and are spliced in as written. They are confined to the end of the statement and refused if they contain a statement separator or a comment marker (;, --, /*), so an options field can extend the command but cannot become a second one. Treat them as you would any SQL you write yourself.

List Tables Function

Purpose: enumerate the tables and views in a schema, so a pipeline can discover what is queryable or iterate over a set of tables.

Field	Type	Required	Default	Description
Schema	String	No	connection default	Schema to list
Name Filter	String	No	-	SQL LIKE pattern, e.g. sensor_%
Timeout	Duration	No	30m	Bound on this operation

Response Format

{
  "tables": [
    { "schema": "public", "name": "sensor_history", "type": "TABLE" }
  ],
  "count": 1
}

Describe Table Function

Purpose: return a table's columns with their types and nullability, in ordinal order. Use it to drive a mapping step, validate a target table against what the pipeline produces, or populate a column picker.

Field	Type	Required	Default	Description
Table Name	String	Yes	-	Table to describe
Schema	String	No	connection default	Schema holding the table
Timeout	Duration	No	30m	Bound on this operation

Response Format

{
  "schema": "public",
  "table": "sensor_history",
  "columns": [
    { "name": "machine_id", "type": "character varying", "nullable": false }
  ],
  "columnCount": 1
}

Using Parameters

The ((parameterName)) syntax turns a function into a dynamic, reusable building block. Parameters are auto-detected from the SQL and the other templated fields, and can be configured with:

Configuration	Description	Example
Type	Data type validation	string, number, boolean, datetime, json, buffer
Required	Make the parameter mandatory or optional	Required / Optional
Default Value	Fallback when none is supplied	2024-01-01, 1000
Description	Help text	"Partition day (YYYY-MM-DD)"

Zoom

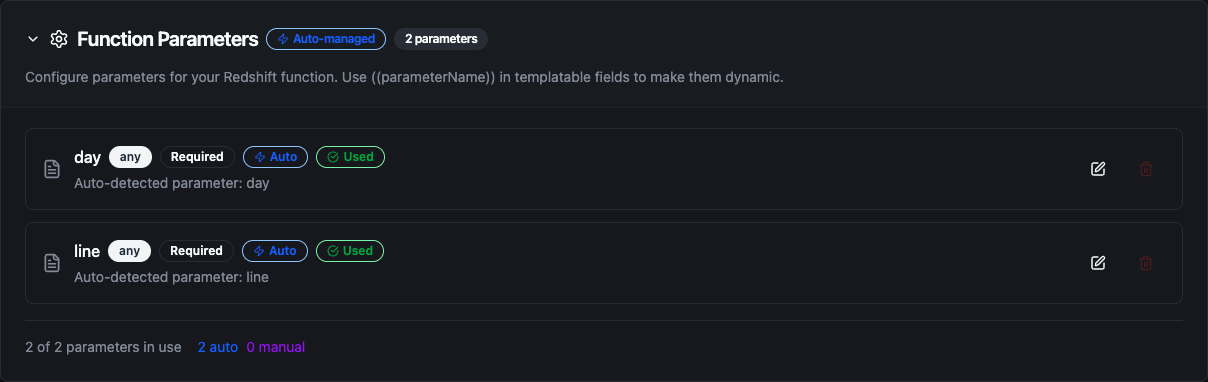

Parameters detected from the SQL and other templated fields, configured with type, requiredness and defaults

Where templating applies

The SQL, table name, S3 URI, schema and data fields accept ((parameter)) templating. Values are supplied by upstream pipeline nodes at execution time. Row values in a Write are always bound, never pasted into the statement.

Table types on write

When Create Table If Not Exists creates a table, the column types come from the data or from your Schema Hints. Two Redshift specifics are worth knowing, because both are silent if you get them wrong:

Hint	Redshift column	Why
String	VARCHAR(65535)	Redshift's TEXT is an alias for VARCHAR(256) — a longer value fails the load on a column the connector itself created, so strings are created at full width
Any	SUPER	Redshift has no JSONB; SUPER is its own shape for semi-structured values
Float64	DOUBLE PRECISION
Int64	BIGINT
DateTime	TIMESTAMPTZ
Boolean	BOOLEAN

Native Redshift type names (VARCHAR, DECIMAL, TIMESTAMPTZ, SUPER, VARBYTE, …) pass through unchanged when you use them in Schema Hints.

Pipeline Integration

Use the Redshift functions you create here as nodes in the Pipeline Designer. Drop a node on the canvas, bind its parameters to upstream outputs or constants, and configure error handling as needed.

Common patterns:

• Read → Transform → Act: query historical data, process the rows, and send the result to a dashboard or a notification
• Collect → Write: batch pipeline telemetry and land it in a warehouse table
• Land → COPY: write files to S3 with the S3 connector, then bulk-load them with Copy From S3
• Query → UNLOAD: export a large extract to S3 for another system to pick up
• Discover → Query: list tables, then fan a Query node out over the names

For the node reference, see Amazon Redshift nodes. For broader orchestration patterns, see Connector Nodes.

Zoom

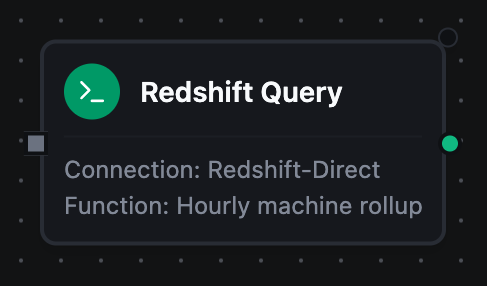

A Redshift Query node with its connection and function bound

Common Use Cases

Landing OT telemetry in the warehouse

Scenario: batch sensor readings from the shop floor into a warehouse table for BI.

Write Configuration:

{
  "table": "sensor_history",
  "data": "((data))",
  "createTableIfNotExists": true,
  "allowSchemaEvolution": true,
  "batchSize": 500
}

Pipeline Integration: an MQTT or OPC UA trigger feeds a buffer node, whose batch goes to the Write node. Schema evolution means a new sensor field appears as a new column instead of being dropped.

---

Bulk-loading an S3 archive

Scenario: a month of exported telemetry sits in S3 and needs to be queryable.

Copy From S3 Configuration:

{
  "table": "sensor_archive",
  "s3Uri": "s3://ot-archive/((month))/",
  "format": "PARQUET",
  "copyOptions": "COMPUPDATE OFF STATUPDATE OFF"
}

Pipeline Integration: run on a schedule with ((month)) bound to the previous month. Redshift reads the files in parallel across slices, which no INSERT path can match.

---

Exporting an extract for a downstream system

Scenario: hand a partner system a filtered slice of history without streaming it through MaestroHub.

Unload To S3 Configuration:

{
  "sql": "SELECT * FROM sensor_history WHERE line_id = '((line))' AND ts >= '((from))'",
  "s3Uri": "s3://exports/((line))/",
  "format": "PARQUET",
  "allowOverwrite": true
}

Pipeline Integration: the rows never enter the pipeline — Redshift writes them straight to S3, and the node returns only the destination and the row count.

---

Validating a target table before a load

Scenario: catch a schema drift before a write fails halfway through a batch.

Use Describe Table to read the target's columns, compare them against what the pipeline produces in a transform node, and branch to an alert when they disagree.
