LoRaWAN Integration Guide

Connect MaestroHub to a LoRaWAN Network Server (LNS) to ingest field-deployed sensor telemetry — wireless temperature, humidity, level, vibration, GPS trackers, and any other LoRaWAN device — and process it inside MaestroHub pipelines. This guide explains the LoRaWAN concepts you need, walks through connection setup, and shows the event shape downstream nodes consume.

What Is LoRaWAN, and Why Do I Need an LNS?

LoRaWAN is a low-power, long-range wireless protocol used heavily in industrial monitoring (think: hundreds of battery-powered sensors across a facility, reporting every few minutes for years on a single battery). LoRaWAN devices do not speak HTTP, MQTT, or any IP protocol — they transmit short radio frames to nearby gateways, which forward them to a LoRaWAN Network Server (LNS). The LNS terminates the LoRaWAN session, decrypts the frame, and exposes the payload over a familiar IT-friendly interface — almost always MQTT.

So MaestroHub does not connect to LoRaWAN devices directly. It connects to the LNS's MQTT broker, where uplinks land already decrypted as JSON.

Common LoRaWAN Network Servers MaestroHub supports out of the box:

LNS	Profile to pick	Topic shape
ChirpStack v4 (self-hosted, AWS, GCP marketplace)	chirpstack	application/{appID}/device/{devEUI}/event/up
ChirpStack v3 (older self-hosted deployments)	chirpstack_v3	application/{appID}/device/{devEUI}/rx
The Things Stack v3 (TTN cloud, TTI cloud, self-hosted)	the_things_stack	v3/{appID}@{tenant}/devices/{devID}/up
Milesight UG6x gateway (built-in LNS)	milesight	ChirpStack v3-compatible envelope
RAK WisGate (built-in LNS)	rak	ChirpStack v3-compatible envelope
AWS IoT Core for LoRaWAN, generic JSON LNS	generic	Free-form

Each LNS publishes uplinks in a slightly different JSON envelope shape. Picking the right profile tells MaestroHub which envelope to expect, so it can normalize every uplink — regardless of LNS — into a single LoRaWANUplinkEvent shape your pipeline can rely on.

Overview

The LoRaWAN connector delivers:

• Multi-LNS support — ChirpStack v4 / v3, The Things Stack v3, Milesight, RAK, and a Generic JSON profile for AWS IoT Core for LoRaWAN and other systems
• Vendor-agnostic event shape — every uplink, regardless of source LNS, becomes a single LoRaWANUplinkEvent with consistent field names
• MQTT 3.1.1 and 5.0 over TCP, TLS, WebSockets, and secure WebSockets
• Username/password and TLS client certificate authentication — covers ChirpStack API keys, TTS application keys, and AWS mTLS
• Strict and permissive parser modes — choose between dropping malformed uplinks (strict) or forwarding them with a parse_status: warning (permissive)
• Per-DevEUI and per-application allowlists — narrow function output to specific devices or applications

Companion Protocols

LoRaWAN sensor telemetry pairs naturally with downstream nodes for transformation, contextualization, and forwarding. Combine LoRaWAN triggers with InfluxDB / TimescaleDB writes for historian storage, MQTT publish for SCADA bridging, or SiteWise writes for AWS asset modeling.

Connection Configuration

Creating a LoRaWAN Connection

Navigate to Connections → New Connection → LoRaWAN and fill in these details.

LoRaWAN Connection Creation Fields

1. Profile Information

Field	Default	Description
Profile Name	-	A descriptive name for this connection profile (required, max 100 characters)
Description	-	Optional description for this LoRaWAN connection

2. LNS Profile

Field	Default	Description
LNS Profile	chirpstack	The LoRaWAN Network Server flavor your broker speaks. Determines the JSON envelope MaestroHub expects on every uplink. Required.

Profile Options

Value	Use when…
chirpstack	ChirpStack v4 (self-hosted, AWS Marketplace, GCP Marketplace deployments)
chirpstack_v3	Older ChirpStack v3 deployments still in production
the_things_stack	The Things Network (TTN) Community Edition, The Things Stack Cloud, self-hosted TTS
milesight	Milesight UG6x series gateways using their built-in LNS (envelope is v3-compatible)
rak	RAK WisGate gateways using their built-in LNS (envelope is v3-compatible)
generic	AWS IoT Core for LoRaWAN, custom LNS, anything that publishes free-form JSON to MQTT

Picking the Profile

If you don't know which LNS you have, check the URL of the admin UI: chirpstack.example.com or eu1.cloud.thethings.network give it away. If the device data lands on AWS via IoT Core for LoRaWAN, pick generic.

3. MQTT Broker Configuration

Field	Default	Description
Broker Hostname	-	LNS-side MQTT broker hostname or IP (e.g., chirpstack.example.com, eu1.cloud.thethings.network). Required.
Port	Auto	Broker port. Auto-selects based on Protocol: 1883 (tcp), 8883 (ssl), 80 (ws), 443 (wss).
Protocol	tcp	tcp (plaintext), ssl (TLS), ws (WebSocket), wss (WebSocket over TLS).
Client ID	Auto	Unique client identifier. Auto-generated as maestrohub-lw-<connectionID> if empty. Avoid setting a fixed value when running multiple replicas — duplicate client IDs cause broker-side disconnects.

4. Tenant & Application Scope

Field	Default	Description
Tenant ID	-	Optional. Required for multi-tenant LNS topic templates: The Things Stack uses v3/<app>@<tenant>/..., ChirpStack v4 carries the tenant in the envelope but not the topic.
Application ID	-	Optional default application ID. When present, the UI suggests narrower default topic filters (e.g., application/12/device/+/event/up instead of application/+/device/+/event/up). Empty = wildcard across all applications.

5. Authentication

Field	Default	Description
Username	-	Broker username. TTS form: <application-id>@<tenant-id> (e.g., myapp@my-tenant). ChirpStack form: an API key user (anything; the password carries the API token).
Password	-	Broker password / API key. Encrypted at rest. Masked on edit; leave empty to keep the stored value.

TTS Authentication

The Things Stack uses API keys, not user passwords. In the TTS console, generate an API key for your application with traffic:read rights, then use:

• Username: <application-id>@<tenant-id> (e.g., factory-sensors@acme-corp)
• Password: the API key starting with NNSXS....

ChirpStack Authentication

ChirpStack v4 uses application-level API keys issued from the Application → Integrations → MQTT page. The username is irrelevant; put any string. The password is the API key.

6. MQTT Advanced

Field	Default	Description
MQTT Version	3.1.1	Protocol version (3.1, 3.1.1, 5.0). The Things Stack v3 only supports 3.1.1 — enforced at save time.
Keep Alive (seconds)	60	MQTT keep-alive interval (0–65535).
Connection Timeout (seconds)	30	TCP connect timeout (1–300).
Clean Session	true	Start with a clean session (no persistent subscriptions). Set to false if your broker queues messages for you during brief disconnects.
Parser Mode	permissive	How the connector handles parse errors. See below.

Parser Mode

Value	Behavior
permissive (default)	A malformed envelope is still emitted, with parse_status: error (or warning for partial parses) and a warnings array. Pipelines can filter on parse_status to handle bad data explicitly.
strict	A malformed envelope is dropped after logging — the pipeline never sees it. Use when downstream nodes assume well-formed data and you want loud failures instead of silent garbage.

7. TLS / SSL

Field	Default	Description
Enable TLS	false	Enable TLS/SSL. Auto-true when Protocol is ssl or wss.
Skip Certificate Verification	false	Skip TLS certificate verification. Development only — never use in production.
Client Certificate (PEM)	-	PEM-encoded client certificate for mutual TLS. Required for AWS IoT Core for LoRaWAN.
Client Private Key (PEM)	-	PEM-encoded client private key. Encrypted at rest, masked on edit.
CA Certificate (PEM)	-	PEM-encoded CA certificate. Only required for self-signed brokers.

Client Cert + Key Must Pair

If you provide a client certificate, you must provide a client private key (and vice versa). The connector rejects half-configured mTLS at save time.

AWS IoT Core for LoRaWAN

For AWS IoT Core for LoRaWAN:

• Profile: generic
• Broker Hostname: your AWS IoT data endpoint (e.g., a1b2c3d4ef5g6h-ats.iot.us-east-1.amazonaws.com)
• Protocol: ssl, Port: 8883
• Auth: Leave Username/Password empty; use Client Certificate + Private Key (the AWS IoT thing certificate)

8. Connection Labels

Field	Default	Description
Labels	-	Key-value pairs to categorize and organize this connection (max 10 labels)

Example Labels

• environment: production
• lns: chirpstack-eu1
• team: facilities

Notes

• Profile changes after saving affect parsing of new uplinks immediately — there is no migration step. Existing functions on the connection keep working but the envelope shape switches.
• The Things Stack v3 rejects MQTT 5.0 and QoS > 0. The connector enforces both at save time, so misconfiguration surfaces immediately rather than at the first message.
• One connection → one MQTT session. Two connections sharing a Client ID will fight at the broker. If you need to scale ingestion, leave Client ID auto-generated.

---

Function Builder

Creating a LoRaWAN Function

After saving the connection:

1. Open the Functions tab on your connection
2. Click New Function

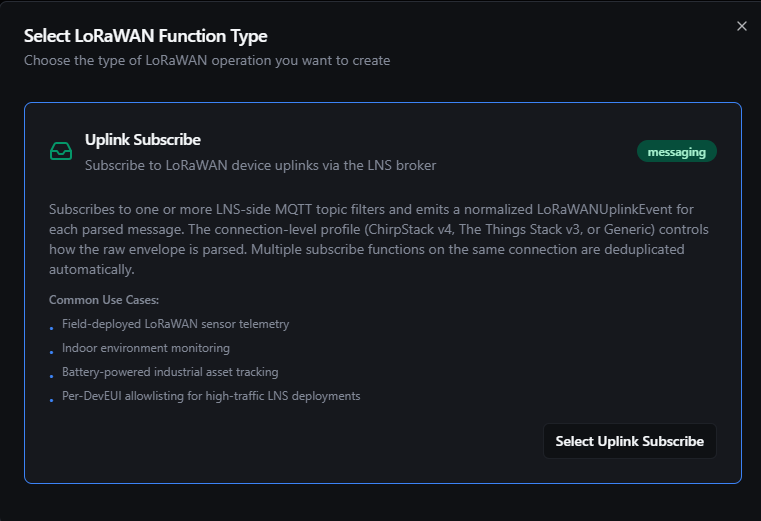

3. Choose Uplink Subscribe as the function type
4. Configure the topic filters and (optionally) per-device or per-application allowlists

Define which LNS topics to listen on, and optionally which DevEUIs or applications to forward

The LoRaWAN connector currently exposes a single function type — Uplink Subscribe. Other operations (downlinks, join-accept listeners, status events) will land in V2.

Uplink Subscribe Function

Purpose: Subscribe the connector to one or more LNS-side MQTT topic filters. Every incoming uplink is parsed with the connection's profile and emitted as a normalized LoRaWANUplinkEvent to whatever pipelines reference this function via a LoRaWAN Trigger node.

Configuration Fields

Field	Type	Required	Default	Description
Function Name	String	Yes	-	Unique name for this function (max 100 characters)
Description	String	No	-	Optional description
Topic Filters	Array	Yes	Profile-suggested	MQTT topic filters to subscribe to. Wildcards + (single segment) and # (rest) supported. The UI suggests profile-aware defaults — see the table below.
QoS Level	Integer	No	0	MQTT QoS for the subscription (0, 1, or 2). The Things Stack v3 requires QoS 0 — enforced at save time.
Device EUI Allowlist	Array	No	-	Optional list of DevEUIs to forward. Empty = forward all devices on the matched topics. Case-insensitive.
Application ID Allowlist	Array	No	-	Optional list of application IDs to forward. Empty = forward all applications. Case-sensitive (vendor-defined).

Default Topic Filters per Profile

The UI seeds a sensible default based on the connection's profile and the connection-level Application ID. You can override anytime.

Profile	Topic filter suggestion
chirpstack (v4)	application/+/device/+/event/up (all apps, all devices). With Application ID = 12: application/12/device/+/event/up
chirpstack_v3	application/+/device/+/rx
the_things_stack (multi-tenant)	v3/+/devices/+/up. With Application = myapp + Tenant = acme: v3/myapp@acme/devices/+/up
the_things_stack (single-tenant)	v3/+/devices/+/up. With Application = myapp: v3/myapp/devices/+/up
milesight, rak	Defaults to the v3-compatible shape application/+/device/+/rx
generic	None — Generic has no envelope assumption, so you must supply a filter explicitly

How Multiple Functions Compose

Multiple Uplink Subscribe functions on the same connection can coexist. The connector deduplicates broker-level subscriptions: if function A subscribes to application/+/device/+/event/up and function B subscribes to application/12/device/+/event/up, the broker delivers each message once and the connector fans it out to both functions in memory — saving bandwidth on the broker.

This makes it natural to split functions per use case (e.g., one function for "all temperature sensors", another for "all GPS trackers") without paying the network cost twice.

Allowlist Behavior

Per-function deviceFilter and applicationFilter apply after parsing, against the parsed event fields:

• An empty list means "accept all" — no filtering.
• A non-empty list keeps only events whose dev_eui (or application_id) appears in the list.
• DevEUIs are matched case-insensitively (the parser lowercases on emit).
• Application IDs are matched case-sensitively (vendors use mixed casing).

Function Example — ChirpStack v4

Function Configuration:

• Topic Filters: ["application/12/device/+/event/up"]
• QoS Level: 0
• Device EUI Allowlist: (empty)
• Application ID Allowlist: (empty)

At runtime, this subscribes the connector to every device under application 12 on the configured ChirpStack v4 broker. Every uplink is normalized and emitted to any downstream LoRaWAN trigger on this function.

Function Example — The Things Stack v3 (multi-tenant)

Function Configuration:

• Topic Filters: ["v3/factory-sensors@acme-corp/devices/+/up"]
• QoS Level: 0 (TTS requires QoS 0)
• Device EUI Allowlist: ["0102030405060708"]

At runtime, only uplinks from a specific device (0102030405060708) under the factory-sensors application in the acme-corp tenant flow downstream — all other devices on the same topic are silently dropped at the connector layer.

---

Pipeline Integration

Use this Subscribe function as the source for a LoRaWAN Trigger node in the Pipeline Designer. The trigger node fires once per uplink, exposing the normalized event to downstream nodes via the $input variable.

For broader patterns that mix LoRaWAN with downstream historian writes, MQTT bridging, or alerting, see the Connector Nodes page.

LoRaWAN trigger feeding a transform → InfluxDB write pipeline

---

Event Shape Reference

Every uplink is normalized into the same LoRaWANUplinkEvent shape regardless of which LNS produced it. Downstream nodes never need to branch on the source profile.

The full shape (from a happy-path ChirpStack v4 uplink with a decoded payload):

{
  "schema_version": "1.0",
  "profile": "chirpstack",
  "event_type": "uplink",
  "connection_id": "bf29be94-fc0a-4dc4-8e5c-092f1b74eb4b",
  "function_id": "aef374c3-aa2b-454e-aabc-5657faac5950",
  "source_topic": "application/12/device/0101010101010101/event/up",
  "received_at": "2026-05-05T10:23:01.412Z",
  "tenant_id": "tenant-7",
  "application_id": "12",
  "device_profile_id": "profile-em300",
  "device_name": "Boiler Room Sensor 7",
  "dev_eui": "0101010101010101",
  "dev_addr": "00189440",
  "f_port": 1,
  "f_cnt": 142,
  "confirmed": false,
  "raw_payload_base64": "AwH//w==",
  "raw_payload_hex": "0301ffff",
  "decoded_payload": {
    "temperature": 24.8,
    "humidity": 51.2
  },
  "radio": {
    "rx_info": [
      {
        "gateway_id": "0016c001f153a14c",
        "rssi": -57,
        "snr": 10.0
      }
    ],
    "tx_info": {
      "frequency": 868300000,
      "data_rate": {
        "spreading_factor": 7,
        "bandwidth": 125000,
        "code_rate": "4/5"
      }
    }
  },
  "parse_status": "ok"
}

Field Reference

Field	Type	Description
schema_version	string	Event shape version. 1.0 for V1; bumped on breaking changes.
profile	string	The LNS profile that produced this event (chirpstack, the_things_stack, etc.)
event_type	string	Always uplink in V1
connection_id	string	UUID of the connection profile
function_id	string	UUID of the subscribe function that matched
source_topic	string	The exact MQTT topic the uplink arrived on
received_at	RFC3339 timestamp	LNS-reported uplink time, falling back to ingestion time when the LNS doesn't include one
tenant_id	string	LNS tenant ID (ChirpStack v4 multi-tenant, TTS); empty for single-tenant deployments
application_id	string	LNS application ID
device_profile_id	string	Device profile / model ID assigned in the LNS (ChirpStack only)
device_name	string	Human-readable device name set in the LNS
dev_eui	string	16-hex-char device EUI, lowercased
dev_addr	string	LoRaWAN session DevAddr (changes on rejoin), lowercased
f_port	integer	LoRaWAN application port (omitted if not in the envelope; 0 is a meaningful value)
f_cnt	integer	LoRaWAN frame counter (omitted if not in the envelope)
confirmed	boolean	Whether the device requested an ACK
raw_payload_base64	string	Encrypted-data-decrypted payload bytes, base64-encoded
raw_payload_hex	string	Same bytes as hex (convenience — derived from raw_payload_base64)
decoded_payload	object	Codec output if the LNS ran a payload codec. Empty / absent otherwise — see below.
radio.rx_info[]	array	One entry per gateway that received this uplink (LoRaWAN frames are often heard by multiple gateways)
radio.tx_info	object	The radio parameters the device transmitted at (frequency, spreading factor, bandwidth, code rate)
parse_status	string	ok, warning, or error
warnings	array	Human-readable warnings when parse_status is warning

When Will decoded_payload Be Present?

LoRaWAN devices send raw bytes over the air. Whether decoded_payload is populated depends on whether the LNS ran a codec — a small JavaScript function that maps device bytes to a JSON object.

Scenario	decoded_payload
LNS has a codec configured for the device profile (most common in production)	Populated with the codec's JSON output
LNS has no codec, or a codec error occurred	Empty / absent — the bytes are still in raw_payload_base64 and raw_payload_hex
Device uses Cayenne LPP and the LNS has the standard LPP codec	Populated with {"temperature_1": 24.8, "humidity_2": 51.2, ...}

If decoded_payload is empty, you can decode the raw bytes inside MaestroHub using a JavaScript node downstream of the LoRaWAN trigger. See the LoRaWAN Trigger documentation for a working example.

Production Tip

Configure codecs on the LNS side when possible — it gives every consumer (MaestroHub, Grafana, AWS, anyone subscribing to the same broker) the decoded values for free. Only fall back to in-MaestroHub JavaScript decoding when you can't change the LNS configuration.

---

Common Use Cases

Industrial Sensor Telemetry

Hundreds of battery-powered LoRaWAN sensors (Milesight EM300 temperature/humidity, Decentlab DL-MBX-100 level sensors, Adeunis pulse counters) report every 5–15 minutes across a factory or campus. Subscribe the connector once to application/+/device/+/event/up (ChirpStack) and let pipeline-side filters pick out which sensors feed which destinations — historian, dashboards, alerting.

Asset Tracking

Battery-powered GPS trackers report position once an hour. The trigger fires per uplink, the JS node decodes lat/lon from the raw bytes (or reads the LNS-decoded GPS object), and a downstream node writes to the asset's row in your tracking database.

Cold Chain Monitoring

Temperature-and-humidity sensors in refrigerated trucks or cold storage uplink every minute. Combine the LoRaWAN trigger with a Condition node ("if temperature > 8 °C") and a Slack/SMS notification node to alert operators in real time.

Multi-Tenant LNS Bridging

A managed-service operator runs ChirpStack v4 with one tenant per customer. Create one connection per tenant (each with its tenant_id and an API key scoped to that tenant), then route their telemetry to per-customer destinations — without ever risking cross-tenant data leakage.

Cloud-Edge Bridging

A Milesight or RAK gateway runs its built-in LNS at a remote site with intermittent connectivity. Pick the matching profile, point at the gateway's local broker, and let MaestroHub's pipeline retry/buffer logic handle the WAN side.
