Amazon SNS Integration Guide

Connect to Amazon Simple Notification Service (SNS) to publish messages that fan out to SQS queues, Lambda functions, HTTPS endpoints, email, SMS, and mobile push subscribers. This guide covers connection setup, function configuration, and pipeline integration for SNS deployments.

Overview

The Amazon SNS connector enables integration with AWS's fully managed pub/sub messaging service, commonly used for event fan-out, alarm distribution, and cross-service notifications. It provides:

• Message publishing to Standard and FIFO SNS topics with support for ordering, deduplication, and per-protocol payloads
• Message attributes for subscription filter policies, so a single topic can route messages to the right subset of subscribers
• FIFO topic support with MessageGroupId for ordered delivery and MessageDeduplicationId for exactly-once semantics within a 5-minute window
• Topic discovery via the List Topics operation, useful for inventory and pre-publish validation
• Flexible authentication with IAM access keys or the AWS SDK default credential chain (environment variables, shared config, IRSA, instance profile)
• Custom endpoint support for LocalStack and other AWS-compatible services
• Per-publish timeout override so individual operations can deviate from the connection-level default

Publish-Only Fan-Out

Amazon SNS is a fan-out service — subscribers (SQS, Lambda, HTTPS, email, SMS, mobile push) receive messages directly from AWS, not from MaestroHub. The connector publishes messages to topics; it does not consume them. If you need to react to events delivered to an SQS queue, use the Amazon SQS connector instead.

Connection Configuration

Amazon SNS Connection Creation Fields

1. Profile Information

Field	Default	Description
Profile Name	-	A descriptive name for this connection profile (required, max 100 characters)
Description	-	Optional description for this SNS connection

2. AWS Region

Field	Default	Description
AWS Region	us-east-1	AWS region where the SNS topics live (e.g., us-east-1, eu-central-1). Must match the region of the target topics — SNS is regional.

Region Must Match Topic ARN

A topic ARN encodes its region (e.g., arn:aws:sns:eu-central-1:...). Publishes to an ARN in a different region than the connection's AWS Region will fail. Create a separate connection per region, or use the region embedded in the ARN as your selection guide.

3. Authentication

Field	Default	Description
Access Key ID	-	AWS Access Key ID. Leave empty to use the AWS SDK default credential chain (env vars, shared config, IAM role, IRSA).
Secret Access Key	-	AWS Secret Access Key. Required when Access Key ID is set; leave empty to use the default credential chain.
Session Token	-	Session token for temporary credentials (optional, used with AWS STS).

You can authenticate the connector in one of two ways:

Option A — Static IAM access keys (explicit)

Provide an Access Key ID and Secret Access Key (and optionally a Session Token for STS-based temporary credentials). Best for self-hosted deployments where the host has no AWS identity of its own.

Option B — AWS SDK default credential chain (implicit)

Leave both Access Key ID and Secret Access Key empty. The connector then resolves credentials in the standard AWS SDK order:

1. Environment variables (AWS_ACCESS_KEY_ID, AWS_SECRET_ACCESS_KEY, AWS_SESSION_TOKEN)
2. Shared credentials file (~/.aws/credentials)
3. IAM Roles for Service Accounts (IRSA) when running on EKS
4. EC2 instance profile / ECS task role

This is the recommended path for AWS-hosted MaestroHub deployments — no long-lived keys need to be stored in the connection profile.

Set Both or Neither

The Access Key ID and Secret Access Key must be set together. Setting only one is rejected at validation time. Session Token is optional and only used alongside static keys.

IAM Permissions

The IAM principal used by the connector must have:

Operation	Required IAM Action	Scope
Connect / health probe	sns:ListTopics	Region-level
Publish	sns:Publish	The specific topic ARN(s) you publish to
List Topics function	sns:ListTopics	Region-level

A minimal least-privilege policy publishes only to a known set of topic ARNs. The sns:ListTopics permission is needed for the connection's startup health probe — without it, the connection will fail to reach Connected state.

4. Custom Endpoint

Field	Default	Description
Custom Endpoint	-	Custom SNS endpoint URL for LocalStack or other AWS-compatible services. Leave empty for AWS SNS.

LocalStack Development

For local development with LocalStack, set the custom endpoint to http://localhost:4566 (or wherever LocalStack is running). When using LocalStack you must still supply an AWS Region and credentials — any non-empty values are accepted, since LocalStack does not validate them.

5. Advanced

Field	Default	Description
Request Timeout (seconds)	30	Default timeout for SNS API calls (1–300 seconds). Individual publish calls may override this per-function.
Max Retries	3	Maximum SDK retry attempts for transient failures (0–10). The AWS SDK applies exponential backoff with jitter between attempts.

6. Connection Labels

Field	Default	Description
Labels	-	Key-value pairs to categorize and organize this SNS connection (max 10 labels)

Example Labels

• env: prod – Environment
• team: platform-events – Responsible team
• account: 123456789012 – AWS account ID

Function Builder

Creating Amazon SNS Functions

Once you have a connection established, you can create reusable functions:

1. Navigate to Functions → New Function
2. Select the desired function type (Publish or List Topics)
3. Choose your SNS connection
4. Configure the function parameters

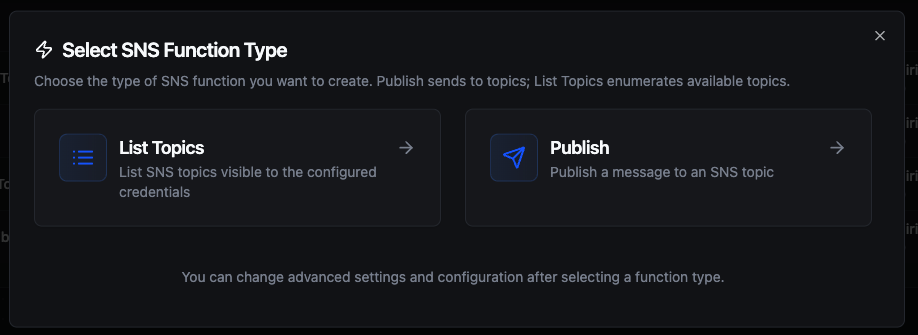

Select from two Amazon SNS function types: Publish for sending messages and List Topics for discovery

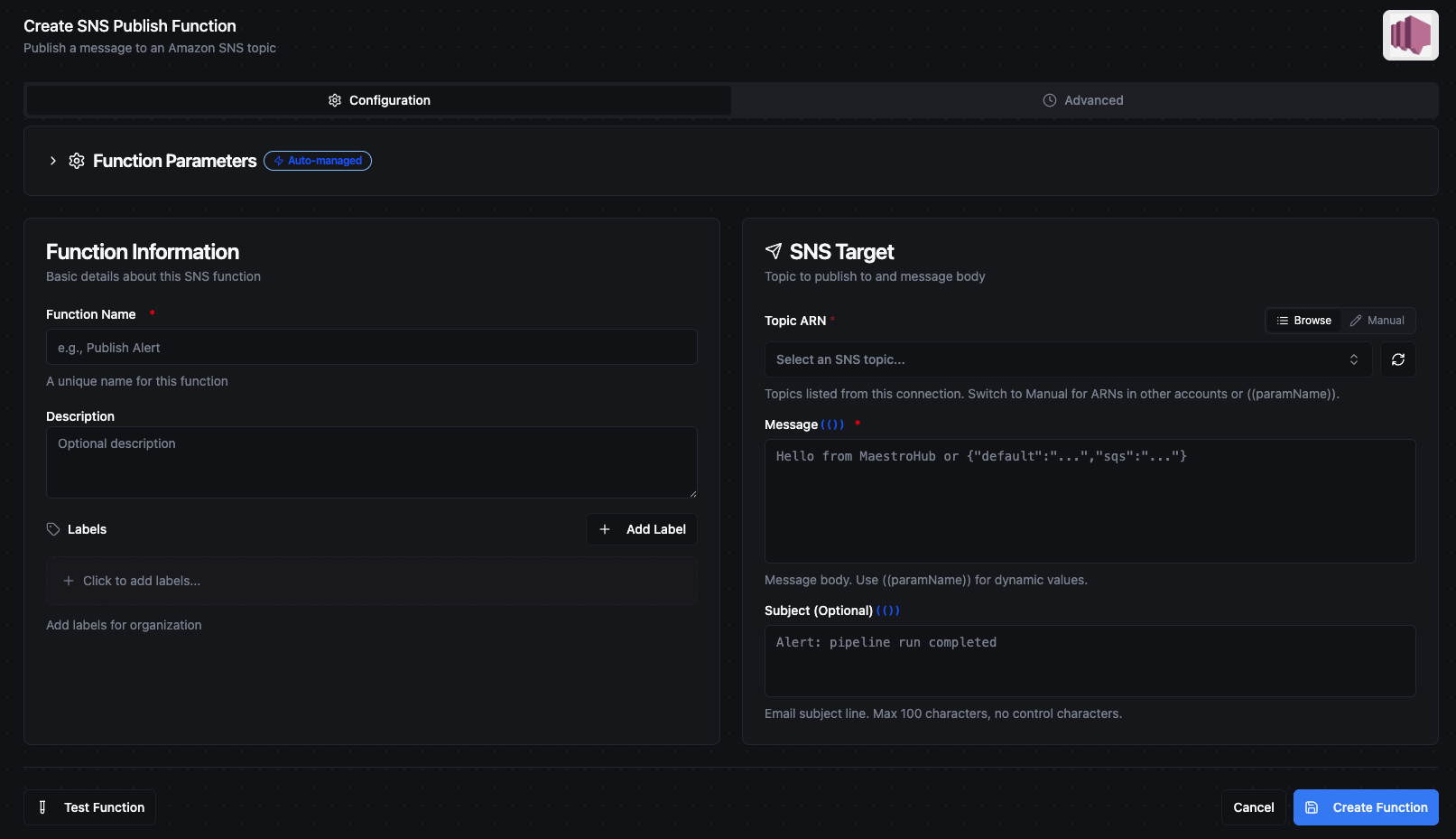

Publish Function

Purpose: Publish a message to an SNS topic for fan-out delivery to all matching subscribers. Use this for event broadcasting, alarm distribution, cross-service notifications, and IoT telemetry summaries.

Configuration Fields

Field	Type	Required	Default	Description
Topic ARN	String	Yes	-	Full ARN of the SNS topic (e.g., arn:aws:sns:us-east-1:123456789012:my-topic). FIFO topics end in .fifo. Supports ((parameter)) syntax.
Message	String	Yes	-	Message body. With messageStructure=json, this must be a JSON object mapping protocol keys to per-protocol payloads. Supports ((parameter)) syntax.
Subject	String	No	-	Optional subject line (used by email subscriptions and as a message attribute). Max 100 characters, must not contain control characters. Supports ((parameter)) syntax.
Message Structure	Enum	No	string	string: same payload for every protocol. json: per-protocol payloads keyed by protocol name in the message body.
Message Attributes (JSON)	String	No	-	JSON object of message attributes (name → {dataType, stringValue}). Used by subscription filter policies. Supports ((parameter)) syntax.
Message Group ID	String	No*	-	Required for FIFO topics. Messages with the same group ID are delivered in order. Supports ((parameter)) syntax.
Message Deduplication ID	String	No	-	FIFO only. Used for 5-minute deduplication. Omit when the topic has content-based deduplication enabled. Supports ((parameter)) syntax.
Timeout Override (seconds)	Number	No	-	Overrides the connection-level request timeout (0–300). Set to 0 or leave empty to use the connection default.

* Required when publishing to a FIFO topic (Topic ARN ending in .fifo).

Use Cases:

• Fan out alarm events to ops queues, on-call Lambdas, and email/SMS subscribers in one publish
• Stream IoT telemetry summaries to multiple analytics consumers
• Broadcast pipeline lifecycle events (started, succeeded, failed) to downstream systems
• Emit application events that need protocol-specific payloads (a short SMS, a verbose email, a JSON HTTPS payload)

Message Structure: string vs json

• string (default): the Message field is sent verbatim to every subscriber, regardless of protocol. Simplest choice for most pipelines.
• json: the Message field must be a JSON object with one key per protocol you want to customize. Each protocol receives only its own payload. The default key is required as a fallback for protocols you didn't specify.

Example json payload:

{
  "default": "Pump A1 fault — see dashboard",
  "email": "Pump A1 has reported a critical bearing temperature of 92°C at 14:32 UTC. See the dashboard for the full trend.",
  "sms": "Pump A1 fault (92°C)",
  "https": "{\"machineId\":\"A1\",\"fault\":\"bearing-temp\",\"value\":92}"
}

FIFO Topic Requirements

FIFO topic ARNs always end in .fifo. When publishing to a FIFO topic:

• Message Group ID is required — messages within the same group are delivered to subscribers in publish order.
• Message Deduplication ID provides 5-minute exactly-once semantics. Omit it only when the topic has content-based deduplication enabled — in that case SNS hashes the message body to derive the dedup key automatically.

Standard (non-FIFO) topics ignore both fields.

Message Attribute Format

The messageAttributes field must be a JSON object where each value declares its dataType and value field. SNS supports String, String.Array, Number, and Binary data types.

{
  "severity": { "dataType": "String", "stringValue": "critical" },
  "site":     { "dataType": "String", "stringValue": "chicago" },
  "score":    { "dataType": "Number", "stringValue": "87" }
}

These attributes drive subscription filter policies — set them deliberately so the same topic can route to different subscriber subsets.

---

List Topics Function

Purpose: List the SNS topics visible to the connection's IAM principal in the configured region. Useful for topic discovery, inventory audits, and pre-publish validation of topic ARNs.

Configuration Fields

Field	Type	Required	Default	Description
Max Items	Number	No	1000	Maximum number of topics to return (100–10000). The connector paginates AWS responses internally (up to ~100 topics per AWS call) and stops once this budget is reached.

Use Cases:

• Audit topic inventory for a region before onboarding new pipelines
• Validate that a target Topic ARN exists before a deployment
• Build operational dashboards that summarize messaging surface area

Pagination Is Internal

AWS returns up to ~100 topics per ListTopics call. The connector aggregates pages internally up to your Max Items budget — you never need to drive pagination yourself. If your account has more topics than the budget, the result is marked as truncated.

---

Using Parameters

The ((parameterName)) syntax creates dynamic, reusable functions. Parameters are automatically detected from your configuration fields and can be configured with:

Configuration	Description	Example
Type	Data type validation	string, number, boolean, datetime, json, buffer
Required	Make parameters mandatory or optional	Required / Optional
Default Value	Fallback value if not provided	arn:aws:sns:us-east-1:111111111111:alerts, info, {}
Description	Help text for users	"Target topic ARN", "Alert severity"

Configure dynamic parameters for Publish functions with type validation, defaults, and descriptions

Parameter Availability

Template parameters are available for Publish functions (Topic ARN, Message, Subject, Message Attributes, Message Group ID, Message Deduplication ID). The List Topics function takes only a static maxItems value — its scope is fixed at configuration time.

Pipeline Integration

Use the Amazon SNS functions you create here as nodes inside the Pipeline Designer. Drag them onto the canvas, bind parameters to upstream outputs or constants, and build event-driven fan-out flows without leaving the designer.

• Amazon SNS Publish — Publish a message to an SNS topic as a step within a running pipeline

For broader orchestration patterns that combine SNS with databases, REST, MQTT, or other connector steps, see the Connector Nodes page.

Need to React to Events, Not Just Publish?

SNS itself does not deliver messages back to MaestroHub — subscribers are AWS-native (SQS, Lambda, HTTPS endpoints, email, SMS, mobile push). To consume SNS-fanned-out messages in a pipeline trigger, subscribe an SQS queue to the topic and use the Amazon SQS trigger node. To react to HTTPS webhook deliveries, use the Webhook Trigger.

Common Use Cases

Alarm Fan-Out to Ops Tooling

Scenario: A pipeline detects a critical equipment fault and needs to notify on-call engineers via SMS, page the ops Lambda for automatic remediation, and log the event to an SQS queue for downstream analytics — all from a single publish.

Publish Configuration:

• Topic ARN: arn:aws:sns:us-east-1:123456789012:critical-alarms
• Subject: ((machineId)) — ((faultType))
• Message Structure: json
• Message:

{
  "default": "((machineId)) reported ((faultType)) at ((timestamp))",
  "sms": "ALARM ((machineId)) ((faultType))",
  "lambda": "{\"machineId\":\"((machineId))\",\"fault\":\"((faultType))\",\"value\":((value))}"
}

• Message Attributes:

{
  "severity": { "dataType": "String", "stringValue": "((severity))" },
  "site":     { "dataType": "String", "stringValue": "((site))" }
}

Pipeline Integration: Connect downstream of a threshold or anomaly-detection node. Subscriber filter policies on the topic route severity=critical to SMS + Lambda, severity=warning to email only, and all severities to the SQS analytics queue.

---

Ordered Per-Machine Event Stream (FIFO)

Scenario: Equipment lifecycle events (started, ramped, stopped) must be delivered to downstream consumers in the order they were emitted per machine. Cross-machine ordering does not matter.

Topic: FIFO topic arn:aws:sns:us-east-1:123456789012:equipment-lifecycle.fifo

Publish Configuration:

• Topic ARN: arn:aws:sns:us-east-1:123456789012:equipment-lifecycle.fifo
• Message: {"machineId":"((machineId))","event":"((eventType))","ts":"((timestamp))"}
• Message Group ID: ((machineId)) — guarantees per-machine ordering
• Message Deduplication ID: ((eventId)) — exactly-once within 5 minutes

Pipeline Integration: Publish from the pipeline that processes raw equipment events. SQS FIFO subscribers receive messages for the same machineId strictly in order, while different machines fan out in parallel.

---

Pipeline Lifecycle Notifications

Scenario: Notify operators when a critical pipeline succeeds or fails. Email subscribers want a full report; SMS subscribers want a one-line summary; an HTTPS subscriber wants a structured payload for a status page.

Publish Configuration:

• Topic ARN: arn:aws:sns:us-east-1:123456789012:pipeline-status
• Subject: Pipeline ((pipelineName)) — ((status))
• Message Structure: json
• Message:

{
  "default": "Pipeline ((pipelineName)) finished with status ((status))",
  "email": "Pipeline ((pipelineName)) finished with status ((status)).\nRuntime: ((runtimeSec))s\nRecords processed: ((recordCount))",
  "sms": "((pipelineName)): ((status))",
  "https": "{\"pipeline\":\"((pipelineName))\",\"status\":\"((status))\",\"runtimeSec\":((runtimeSec))}"
}

Pipeline Integration: Add the Publish node to the pipeline's success and failure branches. The same topic serves operators with different preferences without duplicate publishes.

---

Topic Inventory Audit

Scenario: Compliance requires a periodic inventory of all SNS topics in each region, with tagged ownership metadata for review.

Function: List Topics with Max Items: 5000

Pipeline Integration: Schedule a daily pipeline that runs List Topics across each regional connection, then writes the results to an audit table (PostgreSQL, BigQuery, or S3). Combine with AWS resource-tag APIs for a complete ownership report.
