Google Cloud Firestore Integration Guide

Connect to Google Cloud Firestore to read and write documents from your pipelines, and to run a pipeline the moment a document changes. This guide covers connection setup, the six function types, and pipeline integration.

Overview

Firestore is Google Cloud's serverless NoSQL document database. The connector provides:

• Document reads that fetch one document by its collection and ID
• Collection queries with field filters, ordering, projection and a limit Firestore applies
• Collection-group queries that reach every collection with the same ID, wherever it sits
• Document writes — set, update and delete — with merge and auto-generated IDs
• A real-time listener that fires a pipeline on each document change
• Plain JSON in and out, so you never hand-write Firestore's value wire format
• Full integer precision, so a 19-digit identifier survives the round trip exactly
• An emulator host for local development against firebase emulators:start
• Template parameters for dynamic collections, IDs and document bodies

One connection, one database

A Firestore connection addresses one database in one project. Every function on that connection names the collection it works with, so a single connection covers the whole database rather than one collection.

To work with a second database — a named database alongside (default), or another project — create a second connection.

Collection paths

Firestore paths alternate collection and document IDs, so a collection path always has an odd number of segments:

Path	What it is
machines	a root collection
machines/press-1	a document, not a collection
plants/ankara/lines	a subcollection
plants/ankara/lines/line-3/readings	a deeper subcollection

The Collection field takes the whole path and the Document ID field takes a single ID. Putting a path in the Document ID field, or a document path in the Collection field, is refused by the form with the rule spelled out — Firestore's own error names neither the field nor the cause.

Connection Configuration

Creating a Firestore Connection

Navigate to Connections → New Connection → Google Cloud Firestore and configure the following.

1. Profile Information

Field	Default	Description
Profile Name	-	A descriptive name for this connection profile (required, max 100 characters)
Description	-	Optional description for this Firestore connection

2. Database (Connection tab)

Field	Default	Description
Project ID	-	The Google Cloud project that owns the database – required
Database ID	(default)	The Firestore database to address. Leave as (default) unless the project has additional named databases

3. Service Account (Security tab)

Field	Default	Description
Service Account Key (JSON)	-	The contents of a service account JSON key file, pasted whole. Stored encrypted. Masked on edit; leave empty to keep the stored value

Leave the key empty to use Application Default Credentials from the host. That is the right choice on GKE, on Cloud Run, or on a workstation signed in with gcloud auth application-default login — the connection then acts as the attached service account and there is no key to rotate.

roles/datastore.user covers every operation this connector performs, including the health check.

4. Emulator and Timeout (Advanced tab)

Field	Default	Description
Emulator Host	-	host:port of a Firestore emulator. Leave empty to talk to Google Cloud
Timeout	30s	Bound on the connect probe and on each health check (1s–300s)

The emulator host disables transport security

When Emulator Host is set, the connection talks plain, unencrypted gRPC to that address and sends no credentials — which is what the emulator expects and what makes it usable without a key. Never point it at a real database.

The field takes a bare host:port. A scheme (http://localhost:8080) or a missing port (localhost) is refused by the form, because the gRPC dial that follows fails with a message naming neither.

Local development

The emulator Google ships with the Cloud SDK is the same one firebase emulators:start runs:

gcloud emulators firestore start --host-port=0.0.0.0:8080

Then set Project ID to any value (the emulator accepts any project), leave the service account key empty, and set Emulator Host to localhost:8080.

How the health check works

Test Connection — and every later health check — runs a one-document query against a collection named maestrohub-health-probe. The collection does not need to exist: an empty result is a healthy answer, because the round trip is what proves the session is alive.

This is deliberately a query rather than a metadata call. Listing collection IDs needs the metadata permission, which a least-privilege service account may not have and which the emulator refuses outright.

Function Builder

Creating Firestore Functions

Open the connection, go to the Functions tab, and click New Function. Pick one of the six operations.

Zoom

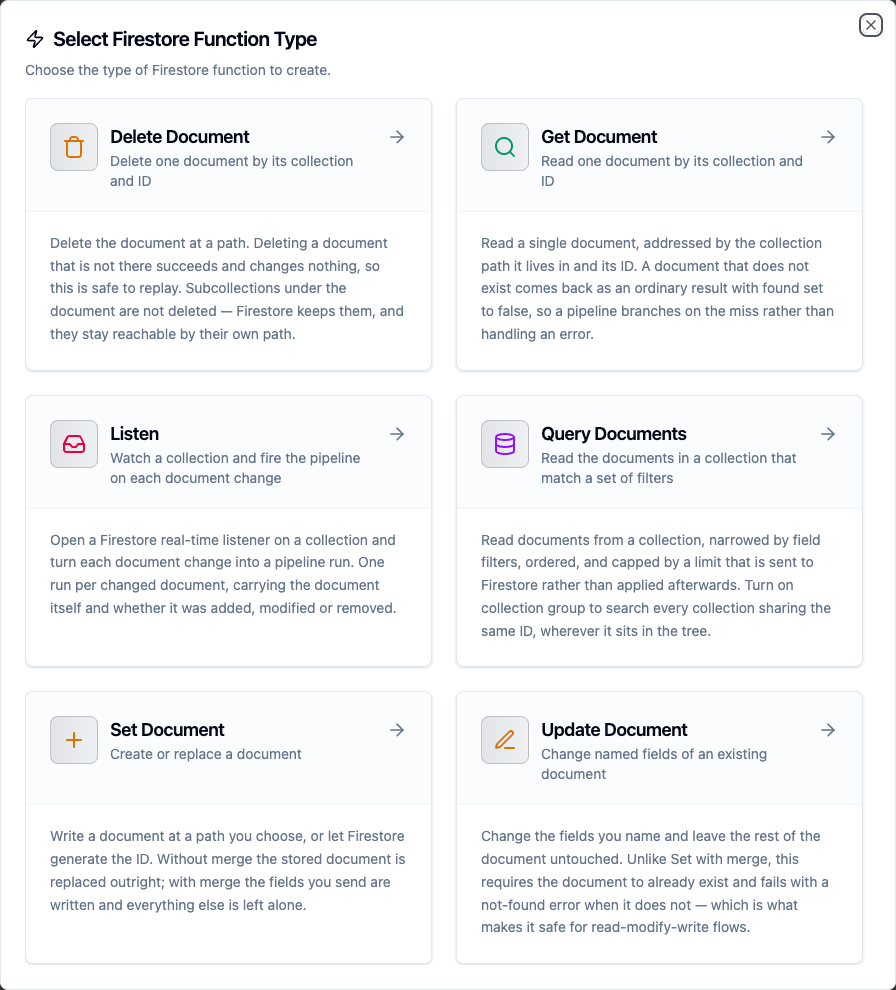

The six Firestore function types

Writing documents, updates and filters

The Document, Updates and Filters fields take plain JSON. You write what the document should contain and the connector converts it to Firestore's types:

JSON you write	Stored as
"running"	string
21.5	double
42	integer, not a double
true	boolean
null	null
["a", "b"]	array
{"code": 3}	map

The integer/double split is real and worth knowing: Firestore stores 42 and 42.0 as different types, and a query filtering on an integer field will not match a stored double. The connector preserves what you typed, and integers keep their full range — a 19-digit identifier round-trips digit-for-digit rather than being rounded through a float.

On the way back, five Firestore types have no JSON equivalent and are converted:

Firestore type	Delivered as
timestamp	RFC3339 UTC string, e.g. 2026-09-24T07:45:51.784Z
document reference	its path, e.g. machines/press-1
geopoint	{"latitude": 39.92, "longitude": 32.85}
bytes	base64 string
integer	a JSON integer, at full int64 range

Very large integers in the browser

The result viewer in the UI shows a 19-digit integer rounded, because JavaScript has no integer type and JSON.parse converts it to a float. The value your pipeline receives is exact — this affects the on-screen preview only.

Get Document

Read a single document by its collection and ID.

Field	Required	Description
Collection	yes	Path of the collection holding the document
Document ID	yes	ID of the document inside that collection
Select Fields	no	Comma-separated field paths to return, e.g. name, status.code. Omit to return the whole document

A document that is not there is not an error. The function succeeds with found false and a null document, so a pipeline branches on the miss rather than routing it through failure handling.

Query Documents

Read the documents in a collection that match a set of filters.

Field	Required	Description
Collection	yes	Collection path, or the bare collection ID when Collection Group is on
Filters	no	JSON array of field filters, combined with AND
Collection Group	no	Search every collection with this ID anywhere in the database
Order By	no	Field path to sort on. Firestore falls back to document ID order when empty
Order Direction	no	Ascending or descending. Ignored while Order By is empty
Limit	no	Maximum documents to return, 1–10000 (default 100)
Start After	no	The cursor a previous run returned
Select Fields	no	Comma-separated field paths to return

Filters are a JSON array:

[
  {"field": "status", "op": "==", "value": "running"},
  {"field": "celsius", "op": ">", "value": 80}
]

Supported operators: ==, !=, <, <=, >, >=, array-contains, array-contains-any, in, not-in. Firestore requires a composite index for some combinations and says so in the error, with a link that creates it.

The Limit is sent to Firestore, so it bounds what is read and billed rather than trimming a full result set afterwards.

Collection groups

With Collection Group off, machines/press-1/readings reads one machine's readings. With it on, readings reads every readings collection in the database — every machine's. Collection must then be the bare ID, with no slashes.

Because two documents in different parents can share an ID, every returned document carries _path alongside _id.

Paging

A page that fills to its Limit comes back with truncated true and a cursor — the path of the last document. Feed that back as the next run's Start After:

run 1: limit 100                    → cursor "machines/press-1", truncated true
run 2: limit 100, startAfter above  → cursor "machines/press-2", truncated true
run 3: limit 100, startAfter above  → truncated false, no cursor

A short page is the end of the data and carries no cursor. Resuming costs one extra point read, which buys an exact cursor: the position is the document itself, so it cannot drift the way a re-encoded field value can.

Set Document

Create or replace a document.

Field	Required	Description
Collection	yes	Path of the collection to write into
Document ID	no	ID to write at. Leave empty and Firestore generates one
Document	yes	The document to write, as plain JSON
Merge	no	Write only the fields supplied and leave the rest intact (default off)

Merge off replaces the document outright — fields you did not send are dropped. Merge on writes the fields you sent and leaves the others alone.

Leaving Document ID empty makes the write non-replayable: each attempt creates a new document, so a store-and-forward replay adds a second one. The generated ID comes back on the result, which is the only place the caller can learn it.

Update Document

Change named fields of an existing document.

Field	Required	Description
Collection	yes	Path of the collection holding the document
Document ID	yes	ID of the document to update
Updates	yes	JSON object of field paths to new values

A dotted key addresses a nested field: {"counts.errors": 0} sets counts.errors rather than creating a key with a dot in its name.

Unlike Set with Merge, Update requires the document to exist and fails with a not-found error when it does not. That is what makes it safe for read-modify-write flows, and the error names Set with Merge as the operation that would have worked.

Delete Document

Delete one document by its collection and ID.

Field	Required	Description
Collection	yes	Path of the collection holding the document
Document ID	yes	ID of the document to delete

Deleting a document that is not there succeeds and changes nothing, so this is safe to replay.

Subcollections are not deleted

Deleting a document does not delete the subcollections under it. They stay in the database and remain reachable by their own path. Firestore has no recursive delete on the server — removing a document tree means deleting its descendants explicitly.

Listen

Watch a collection and fire a pipeline on each document change. This function is used on a Firestore trigger node, not as a pipeline step.

Field	Required	Description
Collection	yes	Collection path to watch, or the bare ID when Collection Group is on
Filters	no	Narrow what the listener watches. Same operators as Query Documents
Collection Group	no	Watch every collection with this ID anywhere in the database
Change Types	yes	Which kinds of change fire: added, modified, removed
Fire For Existing Documents	no	Replay the matching collection at startup (default off)

Each changed document is one pipeline run.

What "Fire For Existing Documents" costs

Firestore opens every listener with a snapshot of everything that already matches. Off — the default — skips that first snapshot, so only changes made from now on fire the pipeline. On replays the whole matching collection at startup, and again after any reconnect, which on a large collection is a lot of pipeline runs.

Field sentinels are not supported

Firestore's field sentinels — server timestamps, atomic increments, array union/remove and field deletes — are not available in this connector. Write an explicit value instead: a timestamp from the pipeline rather than ServerTimestamp, and a read-then-write rather than Increment.

Template Parameters

Collection, Document ID, Document, Updates, Filters, Order By, Start After and Select Fields all accept ((parameterName)) placeholders, resolved from upstream node output at run time:

Collection:  machines
Document ID: ((deviceId))
Document:    {"celsius": ((reading)), "seenAt": "((timestamp))"}

A templated value is only known at execute time, so the form defers its shape checks rather than rejecting {"celsius": ((reading))} as invalid JSON.

Pipeline Integration

Each operation appears as its own node under Database in the node library, and the listener as a Firestore Trigger. See:

• Firestore nodes — the five execution nodes and their outputs
• Firestore trigger — the real-time listener

Store-and-forward and replay safety

The three write operations can be buffered through store-and-forward. What a replay does differs per operation:

Operation	On replay
Set with a Document ID	Lands on the same document — same end state
Set without a Document ID	Creates a second document, every time
Update	Re-applies the same field values — same end state
Delete	Deleting an absent document is a no-op — same end state

Two updates to the same document must replay in their original order or the older values win, which is why Update declares per-key ordering.

Troubleshooting

Symptom	Cause	Fix
collection path "..." addresses a document	An even number of path segments	Move the trailing ID into the Document ID field
documentId must be a single ID, not a path	A path in the Document ID field	Move the parent segments into Collection
Use a bare host:port, with no http://	A URL in Emulator Host	Drop the scheme: localhost:8080
The query requires an index	A filter combination Firestore cannot serve	Follow the link in the error — it creates the index
startAfter "..." is not a document path	A cursor that is not the one a run returned	Use the cursor from the previous run's result
Update fails with not-found	The document does not exist	Use Set with Merge to create-or-update
Listener never fires	Change Types excludes the change you are making	Tick the change type you need
Connection fails with PermissionDenied	The service account lacks Firestore access	Grant roles/datastore.user on the project
