Azure Service Bus Integration Guide

Connect to Azure Service Bus to exchange messages with ERP, MES and other enterprise systems through queues and topics. This guide covers connection setup, each function type, and pipeline integration.

Overview

Azure Service Bus is Microsoft's managed message broker for reliable delivery between applications. A queue hands each message to one receiver; a topic copies each message to all of its subscriptions, and each subscription behaves like a queue. The connector provides:

• Send one message to a queue or topic, now or scheduled for a later time, with message ID, correlation ID, subject, session ID, time to live and application properties
• Send Batch to send an array of messages in as few round trips as the size limits allow
• Receive messages from a queue or topic subscription, removing them
• Peek messages without locking or removing them, including the dead-letter queue
• List Entities to see the namespace's queues, topics and subscriptions
• Consume, a pipeline trigger that starts a run for each arriving message, completing it once MaestroHub has stored it for the run
• Session-enabled queues and subscriptions
• SAS connection string or Microsoft Entra ID authentication, over AMQP (port 5671) or AMQP over WebSockets (port 443)

Connection Configuration

Creating an Azure Service Bus Connection

Navigate to Connections → New Connection → Azure Service Bus and configure the following. One connection serves the whole namespace: queues, topics and subscriptions are chosen on each function.

Azure Service Bus Connection Creation Fields

1. Profile Information

Field	Default	Description
Profile Name	-	A descriptive name for this connection profile (required, max 100 characters)
Description	-	Optional description for this Service Bus connection

2. Service Bus Namespace

Field	Default	Description
Authentication Method	connection_string	connection_string (SAS), or a Microsoft Entra ID method: service_principal, managed_identity, default_credential
Connection String	-	SAS connection string for the namespace (secret), from Shared access policies in the Azure portal — required for connection_string. Masked on edit; leave empty to keep the stored value
Namespace Host	-	Fully qualified namespace, a bare host such as my-namespace.servicebus.windows.net — required for the Entra ID methods
Tenant ID	-	Microsoft Entra ID tenant (directory) ID — required for service_principal
Client ID	-	Application (client) ID — required for service_principal; for managed_identity, the optional client ID of a user-assigned identity
Client Secret	-	Client secret of the service principal (secret) — required for service_principal. Masked on edit

Connection String Format

A namespace-level SAS connection string looks like:

Endpoint=sb://<namespace>.servicebus.windows.net/;SharedAccessKeyName=<policy>;SharedAccessKey=<key>

A string copied from a single queue or topic ends in ;EntityPath=<name>. Such a key is valid only for that entity: the connection check uses that entity (a Send-only or Listen-only key both pass), and a function naming another entity is refused with a message saying the key is scoped elsewhere.

Choosing a Microsoft Entra ID method

The same three methods, with the same fields, are offered by every Azure connector:

• service_principal — a registered Entra ID app with Tenant ID, Client ID, and Client Secret. Grant it Azure Service Bus Data Sender and/or Data Receiver on the namespace or entity.
• managed_identity — for MaestroHub running on Azure (VM, AKS, Container Apps). Uses the host's assigned identity; set only the optional Client ID for a user-assigned identity.
• default_credential — the Azure SDK default chain (environment variables, workload identity, Azure CLI). Useful for local development.

3. Advanced

Field	Default	Description
Transport	amqp	amqp connects on port 5671. websockets carries AMQP over port 443 for networks that allow only HTTPS out, and honours HTTPS_PROXY
Connect Timeout	30s	How long the connection check (dial, TLS, authentication and one link) may take
Management Endpoint	-	Only for List Entities against the local Service Bus emulator, whose management API listens on its own port over HTTP (for example http://localhost:5300). Leave empty for Azure

What Test Connection checks

Test Connection opens the AMQP connection, authenticates, and attaches one receiver link. It succeeds when Service Bus accepts the credentials, even though the probe names a queue that does not exist — Service Bus only answers "not found" after it has accepted the token. A wrong key, an unreachable host or a blocked port fails with a message that says which.

4. Connection Labels

Field	Default	Description
Labels	-	Key-value pairs to categorize and organize this connection (max 10 labels)

Notes

• Required Fields: Profile Name, plus the Connection String (connection_string) or the Namespace Host (Entra ID methods; service_principal also needs Tenant ID, Client ID, and Client Secret).
• Scaling: Consume is shared. Service Bus gives each message (or each session) to one receiver, so several instances share a queue or subscription as competing consumers.
• Local emulator: Microsoft's Service Bus emulator works with a connection string ending in UseDevelopmentEmulator=true, for example Endpoint=sb://localhost:5672;SharedAccessKeyName=RootManageSharedAccessKey;SharedAccessKey=SAS_KEY_VALUE;UseDevelopmentEmulator=true;.

Function Builder

Creating Azure Service Bus Functions

Once you have a connection established, you can create reusable functions:

1. Open the connection and go to Functions → New Function
2. Select the desired function type
3. Name the function and fill in its configuration

Zoom

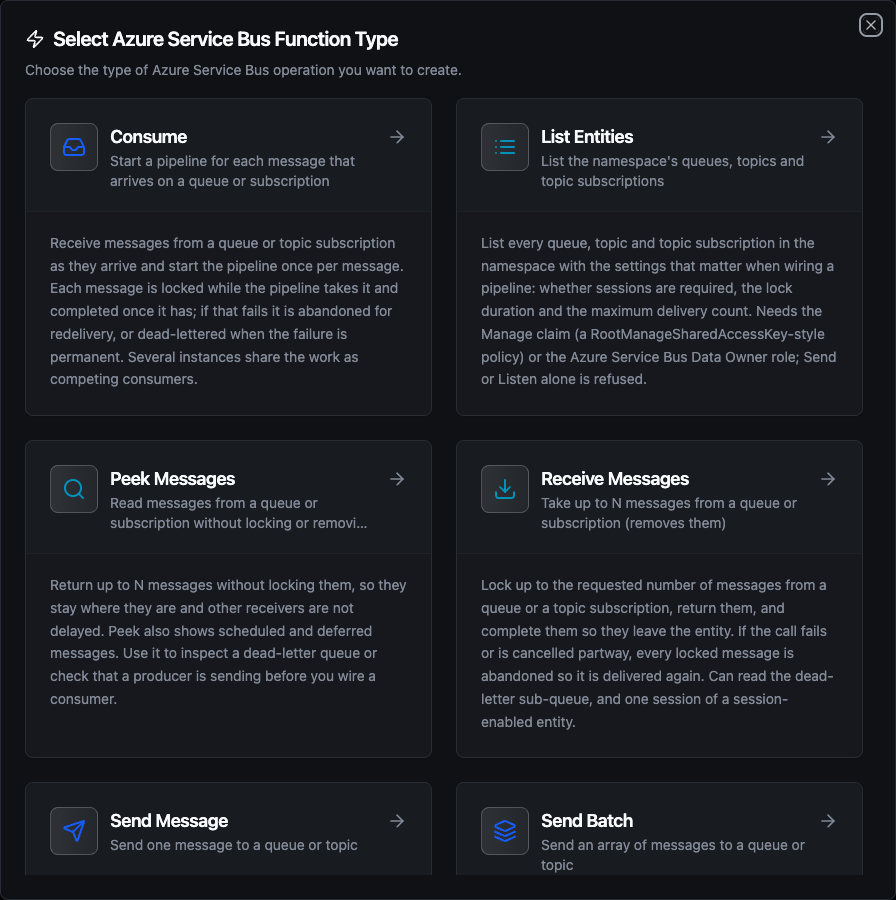

Select from six Service Bus function types: Consume, List Entities, Peek Messages, Receive Messages, Send Message, and Send Batch

Send Message Function

Purpose: Send one message to a queue or topic. Set Scheduled Enqueue Time to have Service Bus hold the message until then.

Configuration Fields

Field	Type	Required	Default	Description
Queue or Topic	String	Yes	-	Name of the queue or topic to send to. Supports template parameters.
Payload	String	Yes	-	Message body (JSON or text). Supports template parameters.
Content Type	String	No	-	MIME type stamped on the message, e.g. application/json
Subject	String	No	-	Application label; subscription rules can filter on it
Message ID	String	No	Generated	With duplicate detection on the entity, a second send with the same ID is dropped
Correlation ID	String	No	-	Links a reply to its request, or groups related messages
Session ID	String	No	-	Required for session-enabled entities. Messages with the same session ID are received in order
Partition Key	String	No	-	Partitioned entities only. Must equal Session ID when both are set
Reply To	String	No	-	Queue or topic the receiver should answer to
Time to Live	Duration	No	Entity default	How long the message stays available (10m, 24h), up to a year. Service Bus caps it at the entity's own default
Scheduled Enqueue Time	String	No	-	RFC 3339 time (2026-10-01T06:00:00Z) at which the message becomes visible
Application Properties	JSON	No	-	Custom properties as a JSON object; subscription rules can filter on them
Timeout	Duration	No	30m	Bound on this single send

Every text field accepts ((parameter)) templates.

Duplicate detection and replays

When a message has no Message ID, a send that store-and-forward replays after an outage reuses the ID of the original attempt. On an entity with duplicate detection turned on, Service Bus then drops the second copy. Set a Message ID yourself (a work order number, say) when the business key should decide what counts as a duplicate.

Example Configuration

// Queue or Topic
work-orders

// Payload
{"order": "((orderId))", "line": ((line)), "quantity": ((quantity))}

// Message ID
((orderId))

// Application Properties
{"plant": "izmir-1"}

Use Cases:

• Hand finished work orders to an ERP integration queue
• Publish line events to a topic that several systems subscribe to
• Schedule a reminder message for the start of the next shift

---

Send Batch Function

Purpose: Send an array of messages to one queue or topic. Each element becomes one message. Service Bus caps a batch at the entity's maximum message size (256 KB on Standard, 1 MB on Premium), so a large array goes out as several batches, in order. If one fails, the error says how many messages went out before it.

Configuration Fields

Field	Type	Required	Default	Description
Queue or Topic	String	Yes	-	Name of the queue or topic to send to
Messages	JSON	Yes	-	Array of message bodies. A string element is sent as-is; any other element is sent as JSON
Content Type	String	No	-	MIME type stamped on every message
Subject	String	No	-	Subject stamped on every message
Session ID	String	No	-	Stamped on every message. Required for session-enabled entities
Application Properties	JSON	No	-	Custom properties stamped on every message
Timeout	Duration	No	30m	Bound on the whole send

Example Configuration

// Messages
[{"line": 3, "oee": ((oee3))}, {"line": 4, "oee": ((oee4))}]

Use Cases:

• Forward a scheduled pipeline's collected readings in one call
• Fan a list of work items onto a worker queue

---

Receive Messages Function

Purpose: Take up to N messages from a queue or topic subscription. The messages are locked, returned, and completed, so they leave the entity. If the call fails or is cancelled partway, every locked message is abandoned and delivered again.

Configuration Fields

Field	Type	Required	Default	Description
Queue or Topic	String	Yes	-	The queue, or the topic whose subscription you name below
Subscription	String	No	-	Topic subscription to read. Leave empty for a queue
Sub-queue	Select	No	none	none reads the entity; deadLetter reads its dead-letter queue; transferDeadLetter reads messages that failed to forward
Session ID	String	No	-	Session-enabled entities only: the session to read. Required for them
Max Messages	Number	No	10	At most this many messages per call (1–500)
Wait Time	Duration	No	5s	How long to wait for the first message. An empty entity returns an empty list, not an error. 0s listens for about a second
Timeout	Duration	No	-	Optional bound on the call. Keep it above Wait Time

Receive removes, Peek does not

Use Peek Messages to look at a queue without changing it. A dead-letter queue keeps its messages until something receives them, so Receive on deadLetter is how a pipeline clears one after handling it.

Use Cases:

• Drain a queue every five minutes from a scheduled pipeline
• Collect dead-lettered messages for a nightly report

---

Peek Messages Function

Purpose: Read up to N messages without locking them, so they stay where they are and other receivers are not delayed. Peek also shows scheduled and deferred messages.

Configuration Fields

Field	Type	Required	Default	Description
Queue or Topic	String	Yes	-	The queue, or the topic whose subscription you name below
Subscription	String	No	-	Topic subscription to read
Sub-queue	Select	No	none	none, deadLetter or transferDeadLetter
Session ID	String	No	-	Session-enabled entities only: the session to read
Max Messages	Number	No	10	At most this many messages (1–250)
From Sequence Number	Number	No	Oldest	Start at this sequence number. Supports template parameters
Timeout	Duration	No	30m	Bound on this single call

Use Cases:

• Inspect a dead-letter queue without draining it
• Check that a producer is sending before you wire a consumer

---

List Entities Function

Purpose: List every queue, topic and topic subscription in the namespace, with whether sessions are required, the lock duration and the maximum delivery count.

Configuration Fields

Field	Type	Required	Default	Description
Max Items	Number	No	500	Stop after this many queues and this many topics (1–5000). Subscriptions are listed for each returned topic
Timeout	Duration	No	30m	Bound on this single call

Needs the Manage claim

Listing uses the Service Bus management API. It needs a policy with the Manage claim (such as RootManageSharedAccessKey) or the Azure Service Bus Data Owner role. A key with only Send or Listen is refused with a message saying so. Against the local emulator, set Management Endpoint on the connection.

---

Consume Function

Purpose: Start a pipeline for each message that arrives on a queue or topic subscription. Consume functions are used by the Azure Service Bus Trigger node.

Configuration Fields

Field	Type	Required	Default	Description
Queue or Topic	String	Yes	-	The queue, or the topic whose subscription you name below
Subscription	String	No	-	Topic subscription to consume
Sub-queue	Select	No	none	none consumes the entity; deadLetter consumes its dead-letter queue
Session-enabled Entity	Boolean	No	false	Turn on when the queue or subscription requires sessions. Sessions are taken one at a time, and each session's messages arrive in order
Max Messages per Receive	Number	No	10	How many messages one receive may lock at once (1–100)

How messages are settled

When MaestroHub takes the message in	What happens to the message
It is stored for the pipeline run	Completed — it leaves the entity, before the run starts
MaestroHub cannot take it in right now	Abandoned — delivered again at once; Service Bus moves it to the dead-letter queue after the entity's maximum delivery count
The failure is permanent	Dead-lettered with reason MaestroHubPipelineRejected and the error as its description

The run's outcome does not settle the message: a run that fails after the message was completed does not return it to the queue or dead-letter it. Use Retry on Fail on the nodes that can fail transiently and a Pipeline Event trigger on failed runs to catch the rest.

---

Using Parameters

The ((parameterName)) syntax creates dynamic, reusable functions. Parameters are detected from your configuration fields and can be configured with:

Configuration	Description	Example
Type	Data type validation	string, number, boolean, datetime, json, buffer
Required	Make parameters mandatory or optional	Required / Optional
Default Value	Fallback value if not provided	0, {}, line-3
Description	Help text for users	"Work order number", "Production line"

Zoom

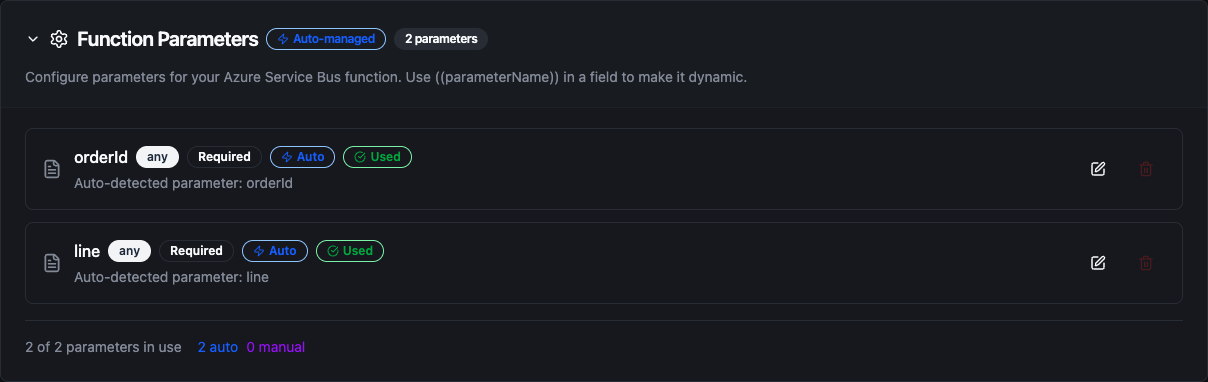

Parameters detected from a Send Message function's payload and message ID

Parameter Availability

Template parameters are available for Send Message, Send Batch, Receive Messages and Peek Messages. List Entities takes no parameters, and Consume functions start pipelines, so there is no upstream data for a template to read.

Pipeline Integration

Use the Service Bus functions you create here as nodes in the Pipeline Designer. Place the node, pick the connection and function, bind its parameters to upstream outputs or constants, and configure error handling as needed.

Common patterns include:

• Collect → Send: read production counts from a PLC and send a work-order update to an ERP queue
• Consume → Process → Send: take messages from a topic subscription, transform them, and forward them to another queue
• Consume → Store: write arriving messages to the UNS, PostgreSQL or InfluxDB
• Schedule → Receive → Report: drain a dead-letter queue on a schedule and alert on what it held

Zoom

Service Bus Send node on the pipeline canvas

See the Azure Service Bus nodes and the Azure Service Bus Trigger for what each node delivers to the steps after it.

Common Use Cases

Work Orders from ERP to the Line

Scenario: The ERP posts released work orders to a work-orders queue. Each one should start a pipeline that looks up the recipe and writes setpoints to the line's PLC.

Consume Configuration:

• Queue or Topic: work-orders

Pipeline Integration: An Azure Service Bus Trigger on the Consume function, then a database lookup and an OPC UA write. The message is completed once MaestroHub has it, so give the OPC UA write Retry on Fail for a PLC that is briefly offline, and alert on failed runs with a Pipeline Event trigger.

---

Production Events to Several Systems

Scenario: The MES and a quality system both want each line's OEE every hour. Publish once to a topic; each system reads its own subscription.

Send Batch Configuration:

• Queue or Topic: line-events
• Messages: ((readings))
• Subject: oee.hourly

Pipeline Integration: A schedule trigger, a read group across the lines, a transform that builds the array, then Send Batch.

---

Ordered Updates per Machine

Scenario: Status changes for each press must be processed in the order they happened, while different presses may be processed side by side.

Send Configuration:

• Queue or Topic: press-status (session-enabled)
• Session ID: ((pressId))

Consume Configuration:

• Queue or Topic: press-status
• Session-enabled Entity: on

Pipeline Integration: Each press's messages share a session, so the trigger receives them in order. Several MaestroHub instances can consume the same queue; each takes different sessions.

---

Dead-Letter Watch

Scenario: Alert a maintenance channel whenever a message lands in a queue's dead-letter queue, with the reason Service Bus recorded.

Consume Configuration:

• Queue or Topic: work-orders
• Sub-queue: deadLetter

Pipeline Integration: The trigger's _metadata carries deadLetterReason and deadLetterErrorDescription; send them to MS Teams or email.
