ODBC Integration Guide

The ODBC connector is MaestroHub's universal database fallback. It reaches any database that exposes an ODBC driver — IBM Db2, Sybase / SAP ASE, Teradata, Informix, Progress OpenEdge, Vertica, Firebird, Excel/Access, and other proprietary or legacy engines — through the MaestroHub ODBC Adapter.

Overview

The ODBC connector provides:

• SQL query execution — run SELECT statements and stream rows back into pipelines
• DML/DDL execution — INSERT / UPDATE / DELETE / CREATE / ALTER / DROP and stored procedures
• Bulk table writes — load pipeline data into a table, with optional dialect-aware auto-create
• Schema browsing — list tables and columns from the Query Board
• DSN-based and DSN-less (driver) connection modes
• Secure WebSocket (TLS) transport to the adapter, with bearer-token auth

Prerequisite — the ODBC Adapter must be running

The connector does not talk to your database directly. The MaestroHub ODBC Adapter must be installed and running on a host that has the native ODBC driver for your database. MaestroHub connects to that adapter over a secure WebSocket; the adapter opens the actual database connection.

Set up the adapter first: see the ODBC Adapter Setup Guide. You will need the adapter's host/port, its API token, and (for self-signed TLS) its certificate before you can create a connection.

Prefer a native connector where one exists

If MaestroHub already ships a native connector for your database — PostgreSQL, MySQL, SQL Server, Oracle, ClickHouse, Snowflake, and others — use that instead. Those need no adapter and no driver install. Reach for ODBC only for databases with no native connector.

How it works — the two hops

 ┌─────────────┐   Hop 1: wss:// (TLS)   ┌──────────────────────┐   Hop 2: ODBC    ┌────────────┐
 │  MaestroHub │ ──────────────────────► │  MaestroHub ODBC     │ ───────────────► │  Database  │
 │  connection │   bearer-token auth     │  Adapter             │  driver manager  │            │
 └─────────────┘                         └──────────────────────┘                  └────────────┘
       │                                          │
   you configure                            you configure
   adapter host, port,                      driver/DSN, server,
   API token, TLS                           database, DB user/password

Each hop has its own configuration in the connection form: the Connection tab covers hop 1 (reaching the adapter), and the ODBC tab covers hop 2 (the database the adapter opens). Errors are reported per hop so you always know which one failed (see Error Handling).

Connection Configuration

Creating an ODBC Connection

Navigate to Connections → New Connection → ODBC and configure the tabs below.

Zoom

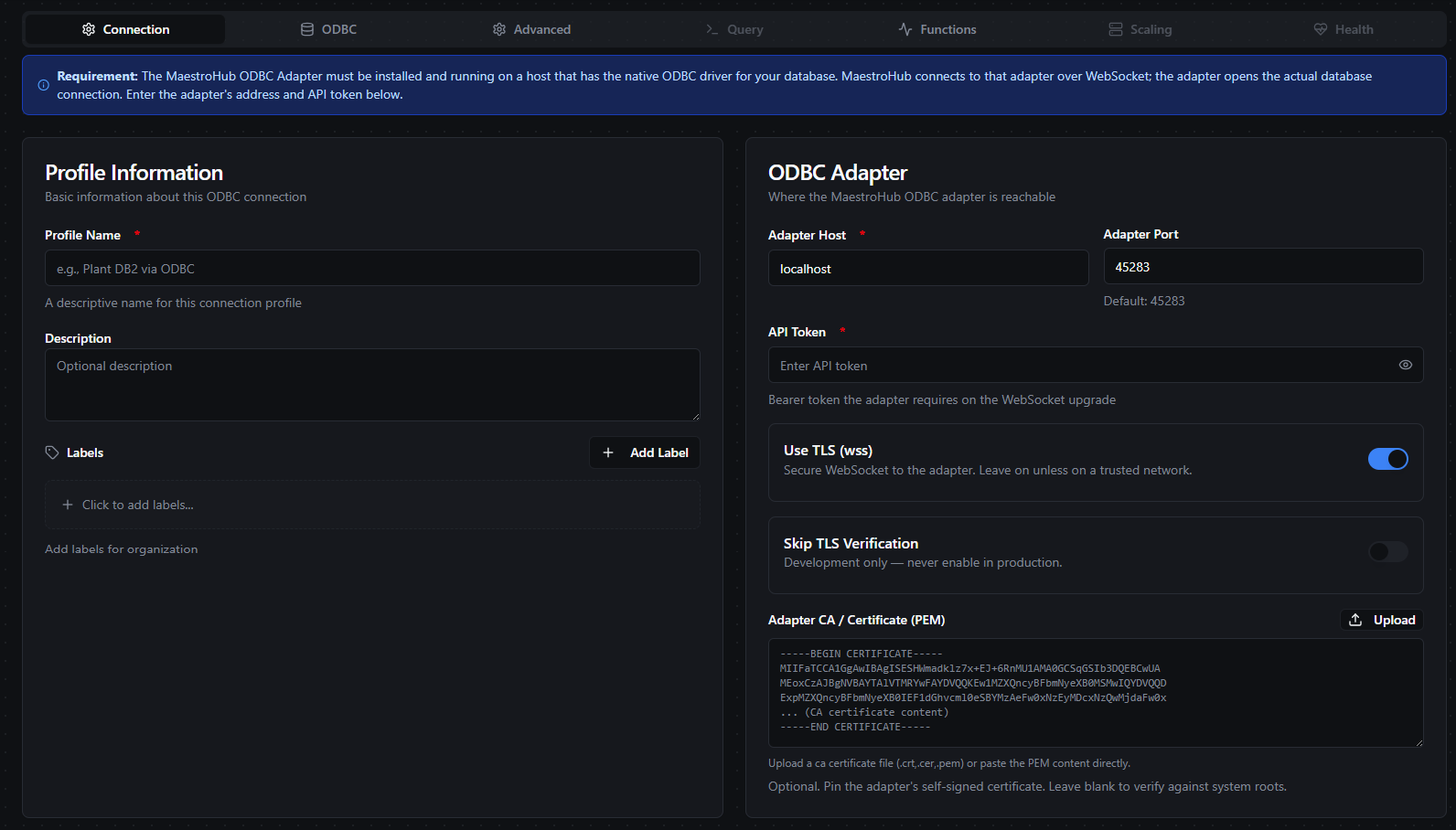

Connection tab — how MaestroHub reaches the adapter (hop 1)

1. Profile Information (Connection tab)

Field	Type	Required	Default	Description
Profile Name	Text	Yes	-	A unique, descriptive name for this connection (1–100 characters)
Description	Text	No	-	Optional description
Labels	Key-Value Pairs	No	-	Key-value pairs to categorize this connection (max 10 labels)

2. ODBC Adapter — transport (Connection tab, hop 1)

Field	Type	Required	Default	Validation	Description
Adapter Host	Text	Yes	localhost	Non-empty	Hostname or IP of the machine running the ODBC adapter
Adapter Port	Number	No	45283	1 – 65535	Adapter listen port
API Token	Password	Yes	-	Non-empty	Bearer token the adapter requires on the WebSocket upgrade. This is the token the adapter printed on first run. Stored encrypted, masked in responses.
Use TLS (wss)	Boolean	No	true	-	Connect over a secure WebSocket. Leave on unless on a trusted network.
Skip TLS Verification	Boolean	No	false	-	(only when TLS is on) Do not verify the adapter's certificate. Development only — never enable in production.
Adapter CA / Certificate (PEM)	Password	No	-	-	(only when TLS is on) PEM certificate that pins the adapter's self-signed cert. Leave blank to verify against the system trust store. Stored encrypted.

Adapter URL format

The WebSocket URL is built automatically: wss://{host}:{port}/ws (or ws://… when Use TLS is off). Example: wss://10.20.0.5:45283/ws

Pin the adapter's self-signed certificate

The adapter generates a self-signed certificate on first run. In production, paste that certificate (PEM) into Adapter CA / Certificate so MaestroHub can verify it — this is the secure alternative to Skip TLS Verification. Supply a CA-signed cert on the adapter (--tls-cert/--tls-key) and you can leave both blank to verify against system roots.

3. Database Target (ODBC tab, hop 2)

The adapter forwards these fields verbatim to open the ODBC connection.

Zoom

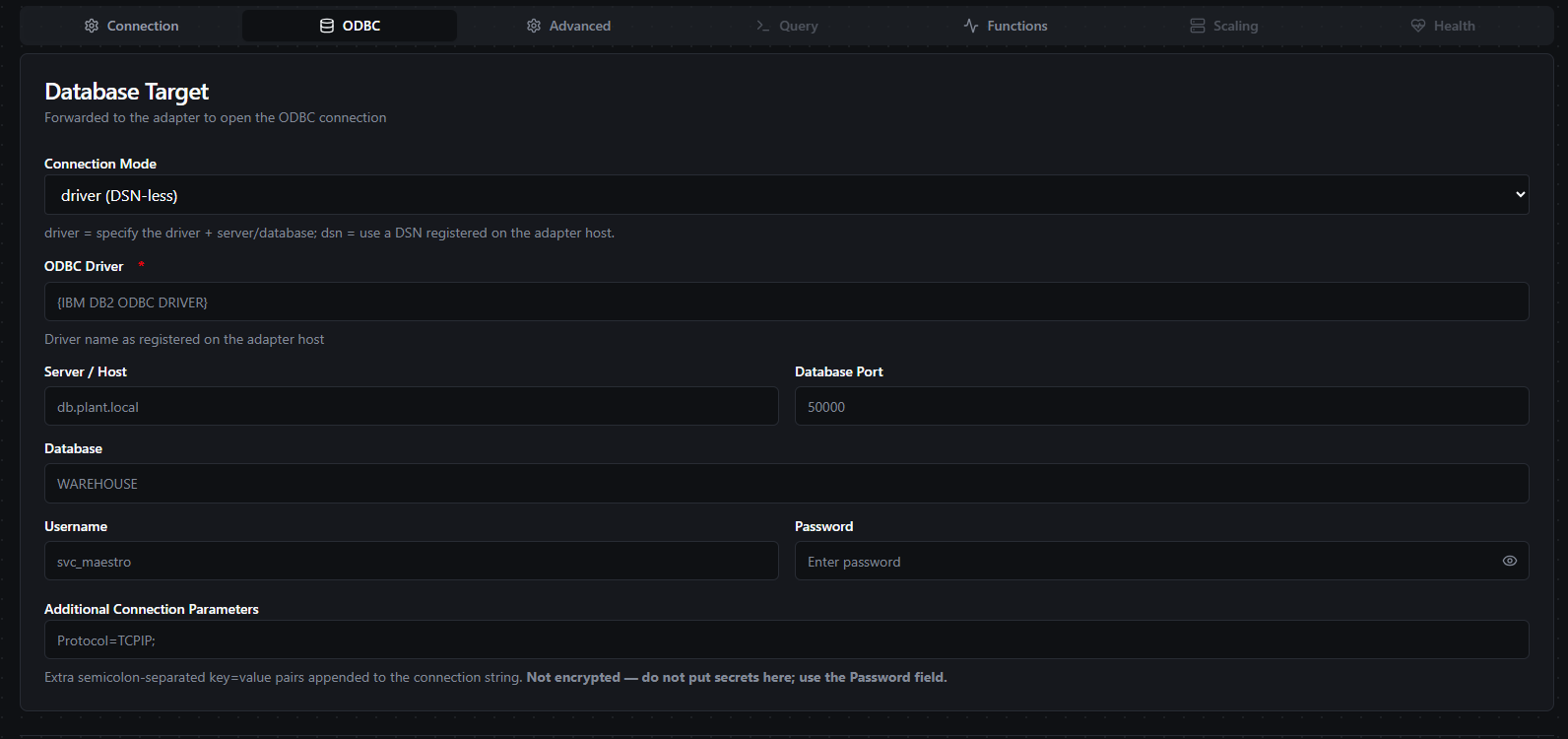

ODBC tab — the database the adapter connects to (hop 2)

Field	Type	Required	Default	Description
Connection Mode	Select (driver / dsn)	Yes	driver	driver = DSN-less (give the driver + server/database); dsn = use a DSN pre-registered on the adapter host
ODBC Driver	Text	Yes (driver mode)	-	Driver name exactly as registered on the adapter host, e.g. IBM DB2 ODBC DRIVER. Run the adapter's --print-drivers to see valid names. Braces are optional — the adapter quotes the name.
DSN Name	Text	Yes (dsn mode)	-	Pre-registered ODBC DSN on the adapter host
Server / Host	Text	No	-	Database server hostname or IP (driver mode)
Database Port	Number	No	-	Database server port, 1 – 65535 (driver mode)
Database	Text	No	-	Database / catalog name (driver mode)
Username	Text	No	-	Database username
Password	Password	No	-	Database password (stored encrypted, masked in responses)
Additional Connection Parameters	Text	No	-	Extra ;-separated key=value pairs appended to the connection string, e.g. Protocol=TCPIP;. Not encrypted — never put secrets here; use the Password field.

connectionMode is enforced

In driver mode, ODBC Driver is required. In dsn mode, DSN Name is required. Saving without the matching identifier fails validation. Database credentials are supplied here, in MaestroHub — the adapter never stores them.

4. Timeouts & Pooling (Advanced tab)

Field	Type	Required	Default	Validation	Description
Connect Timeout (sec)	Number	No	30	1 – 300	Timeout for the adapter dial and CONNECT handshake
Request Timeout (sec)	Number	No	30	1 – 3600	Per-operation response timeout
Pool Max Open	Number	No	10	1 – 1000	Maximum open ODBC connections in the adapter's pool
Pool Max Idle	Number	No	5	0 – 100	Maximum idle ODBC connections in the adapter's pool

Notes

• Adapter required: the connection will not connect until the adapter is reachable at the configured host/port and accepts the API token.
• Default port: the standard adapter port is 45283.
• Driver name precision: the ODBC Driver string must match an installed driver on the adapter host exactly. Use --print-drivers on the adapter to confirm.
• Secret fields: apiToken, password, and tlsCaCert are encrypted at rest and masked in API responses. extraParams is not encrypted.
• One session per connection: the connector holds one WebSocket = one ODBC session, so it runs in Exclusive scaling mode (see Scaling).

Testing the connection

Use Test Connection on the form to validate both hops end to end: MaestroHub dials the adapter, authenticates, opens the ODBC connection (CONNECT), and issues a PING to confirm the database is alive. A failure names the hop that broke (adapter unreachable, auth rejected, or DB connect failed).

Function Builder

Once the connection is saved, create reusable functions under the Functions tab. Three function types are available:

Function Type ID	Name	Testable	Category	Description
odbc.query	Query	Yes	Read	Execute SELECT statements and return structured rows
odbc.execute	Execute	Yes	Write	Execute DML/DDL statements and return rowsAffected
odbc.write	Write	Yes	Write	Load pipeline data into a table with automatic schema detection

Zoom

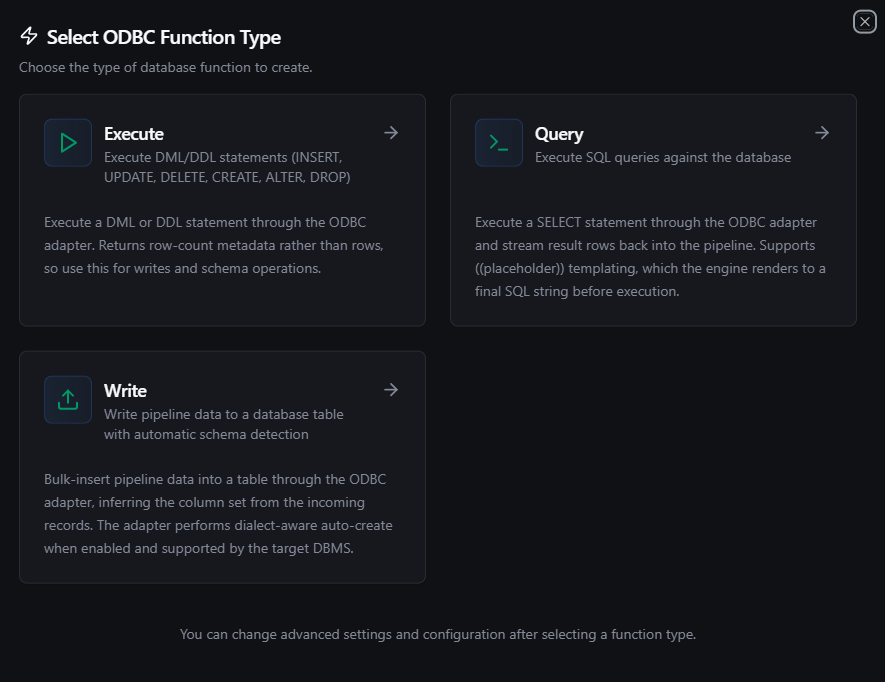

Creating an ODBC function — choose Query, Execute, or Write

Templating with (( )), not $1

The ODBC connector renders ((placeholder)) templates to a final SQL string before execution. Use ((startDate)), ((orderId)), etc. in your Query and Execute SQL — the engine substitutes pipeline values before the statement reaches the adapter.

---

Query

Function Type ID: odbc.query · Testable: Yes

Execute a SELECT through the adapter and stream result rows back into the pipeline.

Configuration fields

Field	Type	Required	Default	Description
SQL Query	Text	Yes	-	SELECT statement to execute. Supports ((placeholder)) templating.
Timeout (seconds)	Number	No	1800	Per-execution timeout (1–3600). The connection's Request Timeout (30s default) still applies and the shorter one wins.

Result shape — mirrors the native SQL connectors, so the same Query Board and pipeline consumers work unchanged:

Key	Location	Description
rows	Data	Array of row objects (column name → value)
driver	Metadata	Always odbc
query	Metadata	The executed SQL
rowCount	Data	Number of rows returned — the adapter's count when it reports one
truncated	Metadata	true if results hit a result limit — the row cap (the adapter's maxRows) or the size budget
truncatedBy	Metadata	rows or bytes — which limit; present only when truncated is true
dialect	Metadata	Resolved SQL dialect (e.g. postgresql, db2, or unknown)

Examples

SELECT * FROM users WHERE id = ((userId))
SELECT COUNT(*) FROM orders
SELECT table_name FROM information_schema.tables

---

Execute

Function Type ID: odbc.execute · Testable: Yes

Execute a DML or DDL statement. Returns row-count metadata rather than rows — use it for writes and schema operations.

Configuration fields

Field	Type	Required	Default	Description
SQL Statement	Text	Yes	-	DML/DDL statement to execute. Supports ((placeholder)) templating.
Timeout (seconds)	Number	No	1800	Per-execution timeout (1–3600). The connection's Request Timeout (30s default) still applies and the shorter one wins.

Result shape

Key	Location	Description
rowsAffected	Data	Rows affected by the statement
driver	Metadata	Always odbc
query	Metadata	The executed SQL
rowsAffected	Metadata	Same value, in metadata for convenience

Examples

INSERT INTO sensors (name, value) VALUES (((name)), ((value)))
UPDATE orders SET status = 'shipped' WHERE id = ((orderId))
CREATE TABLE events (id INTEGER PRIMARY KEY, name VARCHAR(255))

---

Write

Function Type ID: odbc.write · Testable: Yes

Bulk-insert pipeline data into a table. The column set is inferred from the incoming records; the adapter runs the whole write in one transaction (commit at end, rollback on failure) and can auto-create the table when enabled and the dialect is recognized.

This is not a SQL editor — it loads structured data (rows/objects) from your pipeline into a target table.

Configuration fields

Field	Type	Required	Default	Description
Table Name	Text	Yes	-	Target table. Supports ((placeholder)) templating.
Data	Any	No	(upstream input)	Row data to write — an array of objects or a single object. Bound from upstream nodes in a pipeline.
Schema Hints	Object	No	-	Type hints for table creation (field → type, e.g. {"temp":"Float64"}). See Type hints.
Create Table If Not Exists	Boolean	No	false	Auto-create the table if absent. The adapter infers types and fails loudly for dialects it cannot generate DDL for.
Batch Size	Number	No	500	Rows per INSERT batch (1 – 10,000).
Timeout (seconds)	Number	No	1800	Per-execution timeout (1–3600). The connection's Request Timeout (30s default) still applies and the shorter one wins.

Result shape

Key	Location	Description
rowsInserted	Data	Total rows successfully inserted
driver	Metadata	Always odbc
table	Metadata	Target table
tableCreated	Metadata	true if the table was created during this call
batches	Metadata	Number of INSERT batches executed
totalRows	Metadata	Total input rows

How Write behaves

• Column set — the first-seen union of keys across the incoming rows. Rows missing a key bind that column as NULL.
• One transaction — all batches run inside a single transaction. A failure rolls the whole write back; identifiers are dialect-quoted.
• Batching — rows are inserted in batches of Batch Size (default 500). A 1,300-row input at batch size 500 runs as 3 batches (500 + 500 + 300).
• Auto-create gating — with Create Table If Not Exists on, an absent table is created first using dialect-aware DDL (types from Schema Hints, else inferred from sampled values). If the connection's dialect resolved to unknown, auto-create refuses with a permanent HYC00 before any DDL runs — it will not guess a schema. Pre-create the table and write without auto-create instead.

Write type hints

When auto-creating a table, Schema Hints tell the adapter what column types to generate. MaestroHub translates its hint vocabulary to the adapter's logical types, so a hint like Int64 becomes a real integer column (not a VARCHAR):

MaestroHub hint	Adapter column type
Boolean	boolean
Int8 / Int16 / Int32 / Int64	int64
UInt8 / UInt16 / UInt32	int64
UInt64	decimal (exceeds int64 range)
Float32 / Float64	float64
DateTime	datetime
String	string
Any	json

Native DB type names from the Visual Editor are also recognized (INTEGER, BIGINT, DOUBLE PRECISION, NUMERIC, BOOLEAN, TIMESTAMP, DATE, TIME, TEXT, VARCHAR, JSON, BYTEA, …). A hint that isn't recognized is mapped to string, and the connector logs a warning so the downgrade is visible rather than silent.

Schema Browsing — the Query Board

Saved ODBC connections expose a Query tab (the Query Board) for ad-hoc SQL and schema exploration. It lists the database's tables and columns so you can build queries without leaving MaestroHub.

No primary-key flag

ODBC's column metadata carries no cheap primary-key signal, so the schema browser shows column name, type, and nullability but reports no primary key — this is a documented limitation of ODBC catalog metadata, not a bug.

Error Handling

Errors name which hop failed, and the adapter classifies every database failure as transient (safe to retry) or permanent (do not auto-retry). MaestroHub trusts the adapter's classification rather than re-guessing.

Connection-level error prefixes (hop names)

These appear in the connection's status / last-error cell:

Prefix	Hop	Meaning
[ODBC_ADAPTER_UNREACHABLE]	1	Cannot reach the adapter (network/port/process down)
[ODBC_AUTH_ERROR]	1	Adapter rejected the API token
[ODBC_DB_ERROR]	2	Adapter reached, but the database connect failed
[ODBC_DB_DOWN]	2	Adapter up, but the database connection dropped
[ODBC_PROTOCOL_ERROR]	—	Protocol / version mismatch (the MH00x class below)

Outcome classification (retry behavior)

Outcome	SQLSTATE classes	Behavior
transient (retried)	08* (connection), 40* (deadlock / rollback), HYT00 / HYT01 (timeout)	Safe to retry; the runtime may reconnect and re-run
permanent (not retried)	everything else, including unknown/empty SQLSTATE (fails safe)	Fix the cause before retrying

Adapter-level (MH) errors — always permanent

Code	Meaning	Fix
MH001	Protocol version incompatible	Upgrade the adapter so it serves the protocol version MaestroHub requests
MH002	Inbound message too large	Raise the adapter's --max-msg, or split the write into smaller batches
MH003	Protocol-sequence / malformed message	Internal — usually self-resolves on reconnect
MH500	Unexpected internal adapter error	Check the adapter logs

Write data-fit hints

When a Write fails, the connector derives a human hint from the SQLSTATE (not from message text):

SQLSTATE	Hint
22001 / 01004	String / data truncation — a value is too long for its column
22003	Numeric value out of range
22007 / 22018	Datetime / cast conversion failure
23xxx	Integrity-constraint violation (primary key, unique, foreign key, or not-null)

Scaling

The ODBC connector runs in Exclusive mode with a single replica. One WebSocket binds one ODBC session on the adapter, so the connection holds a persistent, stateful per-connection session that cannot be shared across replicas. This is managed automatically by MaestroHub and requires no user configuration.

Store & Forward

The Write function is store-and-forward eligible (sink, unordered, tolerant of staleness) with a preferred batch size of 500, matching the adapter's batch ceiling. Because the adapter performs a plain INSERT with no idempotency key, replays can duplicate rows — operators accept this trade-off when enabling Store & Forward for writes. The Execute function (arbitrary SQL) is intentionally not store-and-forward eligible: replaying arbitrary statements is too risky.

Common Use Cases

Query: read KPIs from a legacy DB2 table

SELECT
    line_id,
    COUNT(*)        AS event_count,
    AVG(efficiency) AS avg_efficiency
FROM PROD.LINE_EVENTS
WHERE event_ts >= ((startDate)) AND event_ts < ((endDate))
GROUP BY line_id
ORDER BY line_id;

Execute: update work-order status in a Sybase / Informix DB

UPDATE work_orders
SET status = ((newStatus)), updated_at = CURRENT_TIMESTAMP
WHERE order_id = ((orderId));

Write: bulk-load sensor data into a legacy warehouse

Configure a Write function with:

• Table Name: SENSOR_READINGS
• Create Table If Not Exists: enabled (only if the connection's dialect is recognized)
• Batch Size: 500

Connect it after your data-collection nodes (MQTT, OPC UA, Modbus, …). The Write function maps incoming fields (sensor_id, temperature, pressure) to columns and inserts them in batches.

---

Next steps

• Haven't set up the adapter yet? Start with the ODBC Adapter Setup Guide.
• Use your ODBC functions in pipelines — see the ODBC Nodes reference.
