AWS IoT Core Nodes

AWS IoT Core is Amazon's managed MQTT broker and device registry. Three pipeline nodes push data into it and read state back: Publish sends a message to a topic, Update Shadow writes reported state, and Get Shadow reads the whole shadow document.

To start a pipeline from AWS IoT Core instead, see the AWS IoT Core triggers.

Configuration Quick Reference

Field	What you choose	Details
Parameters	Connection, Function, Function Parameters, Timeout Override	Pick the connection profile and the function on it, fill any templated parameters, and optionally override the timeout.
Settings	Description, Timeout (seconds), Retry on Timeout, Retry on Fail, On Error	Node description, maximum execution time, retry behaviour, and error strategy. All default to the pipeline's values.

---

Zoom

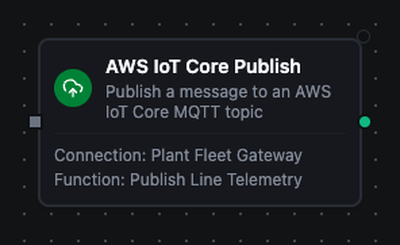

AWS IoT Core Publish Node

AWS IoT Core Publish Node

Send a payload to any MQTT topic the connection's IoT policy allows. This is the main path for pushing telemetry, events and commands into AWS, where rules engine actions can route them onward to Kinesis, Lambda, Timestream or S3.

Supported function types:

Function name	Purpose	Common use cases
Publish Message (awsiot.publish)	Publish a message to an MQTT topic	Telemetry upload, alarm events, command fan-out

Node configuration

Parameter	Type	Required	Description
Connection	Selection	Yes	The AWS IoT Core connection profile to use
Function	Selection	Yes	A Publish Message function on that connection
Function Parameters	Dynamic	Varies	Whatever the function templates. See the AWS IoT Core connection guide for the full parameter list
Timeout Override	Number (seconds)	No	Override the function's own timeout

Function parameters for Publish Message:

Parameter	Type	Required	Default	Description
topic	String	Yes	-	The topic to publish to. At most 256 bytes and 7 forward slashes. Supports expressions
payload	String	Yes	-	The message body, at most 128 KB. Objects are serialized as JSON; strings are sent as-is
qos	Number	No	0	0 (at most once) or 1 (at least once). AWS IoT Core does not support QoS 2
retain	Boolean	No	false	Store the message as the topic's retained message

Input

The node receives the previous node's output. When the function's payload is empty, the pipeline input is published as-is — so a JavaScript or Set node upstream can shape the body without the function templating anything.

Output

{
  "result": {
    "topic": "factory/line3/telemetry",
    "bytesWritten": 156,
    "qos": 1,
    "retained": false
  },
  "_metadata": { "success": true, "functionId": "aef374c3-aa2b-454e-aabc-5657faac5950", "durationMs": 4, "timestamp": "2026-09-22T14:04:45Z" }
}

Field	Type	Description
result.topic	string	The topic the message was published to
result.bytesWritten	number	Payload size in bytes
result.qos	number	The QoS the message was sent with (0 or 1)
result.retained	boolean	Whether the broker stored it as the topic's retained message

Limits

AWS IoT Core caps a message at 128 KB and a topic at 256 bytes with at most 7 forward slashes. The node refuses an oversized message or topic before it reaches the wire — the broker's own answer to one is to close the connection with no error payload, which is far harder to diagnose.

Store & Forward

Publish is Store & Forward eligible. When the broker is unreachable the payload is buffered durably and replayed once the connection recovers. Turn it on for the connection under Orchestrate → Store & Forward, then choose a delivery mode on this node.

---

Zoom

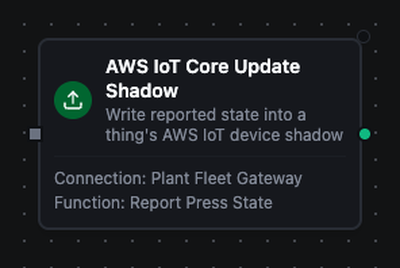

AWS IoT Core Update Shadow Node

AWS IoT Core Update Shadow Node

Report device state into the AWS IoT Device Shadow service, so cloud-side consumers can read it without the device being online.

Supported function types:

Function name	Purpose	Common use cases
Update Device Shadow (awsiot.shadow.update)	Write reported state into a thing's shadow	Firmware version, operating mode, applied setpoint

Node configuration

Parameter	Type	Required	Description
Connection	Selection	Yes	The AWS IoT Core connection profile to use
Function	Selection	Yes	An Update Device Shadow function on that connection
Function Parameters	Dynamic	Varies	See the connection guide
Timeout Override	Number (seconds)	No	Override the function's own timeout

Function parameters for Update Device Shadow:

Parameter	Type	Required	Default	Description
state	Object	Yes	-	JSON object written under state.reported. The whole document is capped at 8 KB
thingName	String	No	The connection's Default Thing Name	Which thing's shadow to update. Supports expressions
shadowName	String	No	The classic shadow	Which named shadow to update
requestTimeout	Duration	No	10s	How long to wait for the accepted or rejected reply

Output

{
  "result": {
    "thingName": "line-3-press",
    "shadowName": "maintenance",
    "version": 17,
    "timestamp": 1757030400,
    "bytesWritten": 89
  },
  "_metadata": { "success": true, "functionId": "bcd123ef-4567-89ab-cdef-000000000001", "durationMs": 8, "timestamp": "2026-09-22T14:11:16Z" }
}

Field	Type	Description
result.thingName	string	The thing whose shadow was written
result.shadowName	string	The named shadow, empty for the classic one
result.version	number	The shadow's version counter after the write
result.timestamp	number	When the shadow service accepted the write, Unix seconds
result.bytesWritten	number	Size of the state document sent, in bytes

Merge semantics

A shadow update is a merge patch: only the attributes you send are changed, and the rest of reported stays as it was. Send null for an attribute to delete it.

It waits for the service's answer

The node publishes to the shadow update topic and waits for the service's accepted or rejected reply. A rejection fails the node with the service's own code and message — a 403 when the policy denies the shadow topic, a 400 when the document is malformed — rather than passing silently.

Store & Forward

Shadow updates are Store & Forward eligible, but they are buffered with a maximum age rather than indefinitely. A shadow is last-writer-wins per thing, so replaying a stale report hours later would overwrite a fresher value.

---

Zoom

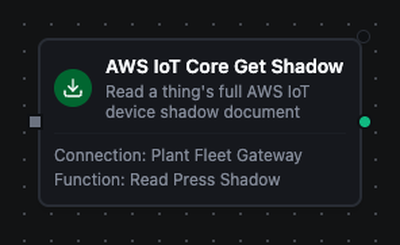

AWS IoT Core Get Shadow Node

AWS IoT Core Get Shadow Node

Read the current shadow document for a thing: what the cloud wants, what the device last reported, and where the two disagree.

Supported function types:

Function name	Purpose	Common use cases
Get Device Shadow (awsiot.shadow.get)	Read a thing's full shadow document	Reconcile a device against the cloud, seed a pipeline with last-known state

Node configuration

Parameter	Type	Required	Description
Connection	Selection	Yes	The AWS IoT Core connection profile to use
Function	Selection	Yes	A Get Device Shadow function on that connection
Function Parameters	Dynamic	Varies	See the connection guide
Timeout Override	Number (seconds)	No	Override the function's own timeout

Function parameters for Get Device Shadow:

Parameter	Type	Required	Default	Description
thingName	String	No	The connection's Default Thing Name	Which thing's shadow to read. Supports expressions
shadowName	String	No	The classic shadow	Which named shadow to read
requestTimeout	Duration	No	10s	How long to wait for the accepted or rejected reply

Output

{
  "result": {
    "thingName": "line-3-press",
    "shadowName": "",
    "version": 17,
    "timestamp": 1757030400,
    "desired": { "setpoint": 72 },
    "reported": { "setpoint": 70, "firmware": "2.4.1" },
    "delta": { "setpoint": 72 },
    "metadata": { "reported": { "setpoint": { "timestamp": 1757030395 } } }
  },
  "_metadata": { "success": true, "functionId": "cde456ab-1234-5678-9abc-000000000002", "durationMs": 6, "timestamp": "2026-09-22T14:37:01Z" }
}

Field	Type	Description
result.thingName	string	The thing whose shadow was read
result.shadowName	string	The named shadow, empty for the classic one
result.version	number	The shadow's version counter
result.timestamp	number	When the shadow service answered, Unix seconds
result.desired	object	What the cloud wants the device to be
result.reported	object	What the device last said it is
result.delta	object	The attributes where the two disagree. Present only when they disagree
result.metadata	object	Per-attribute update timestamps, mirroring the desired and reported trees

desired, reported and delta are lifted out of the service's state wrapper, so a pipeline reads $node["Read Shadow"].result.reported.setpoint rather than digging through state.

delta is absent, not empty

When desired and reported agree, the shadow service sends no delta section and the node omits the key. Test for its presence ($node["Read Shadow"].result.delta) rather than for an empty object.

No shadow yet

A thing that has never reported has no shadow, and the service answers 404 No shadow exists with name: '<thing>'. The node fails with that message rather than returning an empty document.

---

Settings Tab

All three AWS IoT Core nodes share the same Settings tab:

Setting	Type	Default	Description
Description	Text	-	Optional description shown on the node
Timeout (seconds)	Number	Pipeline default	Maximum time the node may run
Retry on Timeout	Toggle	Pipeline default	Retry the node when it times out
Retry on Fail	Toggle	Pipeline default	Retry the node when it fails
On Error	Selection	Pipeline default	Pipeline Default (the pipeline's Error Handling setting), Stop Pipeline or Continue Execution

Left at their defaults these inherit from the pipeline's execution settings.

---

Usage Examples

Forward OPC UA readings to AWS

Scenario: publish PLC temperature and pressure readings to AWS IoT Core, where a rule routes them to Timestream.

1. OPC UA Trigger — monitors the temperature and pressure nodes
2. Set Node — shapes the body as {"temperature": $trigger.result.value, "at": $trigger._metadata.sourceTimestamp}
3. AWS IoT Core Publish — topic factory/line3/telemetry, payload {{ $input }}

Apply a cloud setpoint and report it back

Scenario: AWS writes a desired setpoint; the line applies it and confirms.

1. AWS IoT Core Shadow Delta Trigger — fires on the delta
2. OPC UA Write — writes $trigger.result.state.setpoint to the PLC
3. AWS IoT Core Update Shadow — reports {"setpoint": $trigger.result.state.setpoint}

The third step is what stops the delta from repeating: the shadow service publishes a delta until reported matches desired.

Reconcile a device on a schedule

Scenario: every fifteen minutes, check whether the line matches what the cloud asked for.

1. Schedule Trigger — every 15 minutes
2. AWS IoT Core Get Shadow — reads the classic shadow
3. Condition Node — continues only when $node["Get Shadow"].result.delta is present
4. Notification — raises an alert naming the attributes that drifted
