AWS IoT Core Trigger Nodes

Two trigger nodes start a pipeline from AWS IoT Core: Subscribe fires on each message matching a topic filter, and Shadow Delta fires when the cloud asks a device for something it has not yet reported.

Trigger	Fires on	Common use cases
Subscribe Trigger	A message matching an MQTT topic filter	Cloud-issued commands, fleet telemetry ingest, rules-engine fan-out
Shadow Delta Trigger	A shadow delta — desired and reported disagree	Remote configuration, setpoint pushes, firmware-version requests

Both are the first node in a pipeline. Neither takes upstream input, so neither accepts dynamic parameters.

To send data to AWS IoT Core, see the AWS IoT Core nodes.

---

Zoom

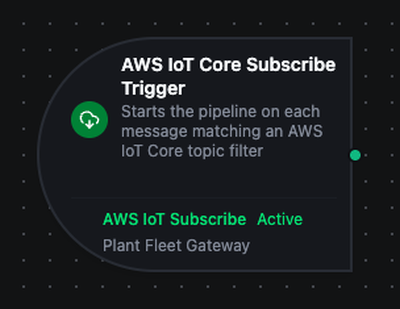

AWS IoT Core Subscribe Trigger

AWS IoT Core Subscribe Trigger

Holds a subscription open on a topic filter and starts the pipeline once per message. One filter can cover a whole device fleet.

Configuration

Field	Required	Description
AWS IoT Core Connection	Yes	The connection whose MQTT session carries the subscription
Subscribe Function	Yes	A awsiot.subscribe function on that connection. Its topic filter decides which messages start this pipeline
Trigger Mode	No	Always fires on every message; On Change fires only when a topic delivers a payload different from the one it delivered last
Max Tracked Topics	No	On Change only. How many distinct topics keep a last-seen payload. Default 1000, maximum 10000
Enable Trigger	No	When off, the subscription is not opened and no message starts the pipeline
Test Data	No	A sample body the editor's preview uses instead of a live message

Topic filters

The filter lives on the function, not the node, so several pipelines can share one filter without configuring it twice.

Filter	Matches
factory/line3/telemetry	That topic only
factory/+/telemetry	factory/line3/telemetry, factory/line4/telemetry, but not factory/line3/press/telemetry
factory/#	Everything under factory/, at any depth

+ matches exactly one level and # matches the rest of the topic and must be last. A filter that breaks either rule is refused when the function is saved.

The IoT policy must allow the filter

AWS IoT Core does not answer an unauthorized subscribe with an error — it disconnects the client. If the connection flaps whenever this trigger is enabled, the policy is missing iot:Subscribe or iot:Receive on the filter.

Output

{
  "result": { "command": "setSetpoint", "value": 74 },
  "_metadata": {
    "type": "awsiot_subscribe_trigger",
    "connectionId": "8eb3633e-f5aa-4be9-8aae-a46c9c15cb23",
    "functionId": "0e6a425e-a84e-477a-8cad-516af9913344",
    "protocol": "awsiot",
    "topic": "factory/line3/commands",
    "qos": "0",
    "retained": "false",
    "timestamp": "2026-09-22T14:04:45.038598Z"
  }
}

Field	Description
$trigger.result	The message body. JSON is parsed; anything else arrives as it was sent
$trigger._metadata.topic	The topic the message actually arrived on — the concrete one, not the filter
$trigger._metadata.qos	The delivered QoS, which is the lower of the publisher's and the subscription's
$trigger._metadata.retained	"true" when the broker replayed a retained message rather than delivering a live one
$trigger._metadata.timestamp	When the pipeline received the message

Metadata values are strings, including the ones that read as numbers — the wire carries metadata as text.

On Change is per topic

Change detection is scoped to the topic, not to the subscription. Two devices publishing the same reading both fire, because each topic is compared against its own previous payload. Without that, the second device's first reading would look like a duplicate.

---

Zoom

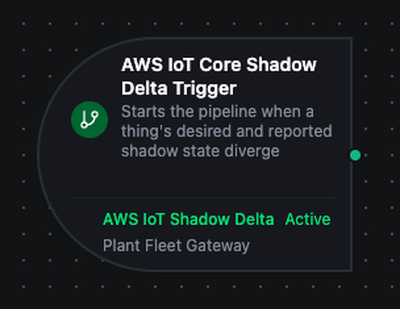

AWS IoT Core Shadow Delta Trigger

AWS IoT Core Shadow Delta Trigger

Subscribes to a thing's shadow delta topic. The shadow service publishes a delta whenever desired state differs from reported state, which makes this the channel for remote configuration: write a desired value in AWS, act on it here, report it back.

Configuration

Field	Required	Description
AWS IoT Core Connection	Yes	The connection whose MQTT session carries the shadow subscription
Shadow Delta Function	Yes	A awsiot.shadow.delta function naming the thing and shadow to watch
Trigger Mode	No	Always fires on every delta; On Change fires only when a thing's delta differs from the one it last delivered
Max Tracked Things	No	On Change only. How many distinct things keep a last-seen delta. Default 1000, maximum 10000
Enable Trigger	No	When off, the shadow subscription is not opened
Test Data	No	A sample delta the editor's preview uses

Output

{
  "result": {
    "state": { "setpoint": 81 },
    "version": 2,
    "timestamp": 1790086276,
    "metadata": {}
  },
  "_metadata": {
    "type": "awsiot_shadow_trigger",
    "connectionId": "8eb3633e-f5aa-4be9-8aae-a46c9c15cb23",
    "functionId": "9f0af102-9495-4275-b9c1-bdd940d15885",
    "protocol": "awsiot",
    "topic": "$aws/things/e2e-press-01/shadow/update/delta",
    "thingName": "e2e-press-01",
    "shadowName": "",
    "version": "2",
    "shadowTimestamp": "1790086276",
    "timestamp": "2026-09-22T14:11:16.218242Z"
  }
}

Field	Description
$trigger.result.state	The attributes the cloud wants that the device has not reported
$trigger._metadata.thingName	The thing the delta belongs to
$trigger._metadata.shadowName	The named shadow, empty on the classic shadow
$trigger._metadata.version	The shadow's version counter at the time of the delta
$trigger._metadata.shadowTimestamp	When AWS wrote the shadow, Unix seconds
$trigger._metadata.timestamp	When the pipeline received the delta

Two clocks, two names

timestamp is when MaestroHub received the event — the platform sets it on every trigger. shadowTimestamp is AWS's own clock. They have separate names on purpose: one name for both would silently replace one fact with the other.

Deltas repeat until the device reports back

The shadow service republishes the delta on every subsequent shadow write while the two sides still disagree. Close the loop with an Update Shadow node reporting the value the pipeline applied, or use On Change so an unchanged delta does not start the pipeline again.

---

Settings Tab

Both triggers share the same Settings tab:

Setting	Type	Default	Description
Description	Text	-	Optional description shown on the node
On Error	Selection	Pipeline default	Pipeline Default (the pipeline's Error Handling setting), Stop Pipeline or Continue Execution

---

Reconnection

The subscription belongs to the connection, not to the pipeline. When the link to AWS IoT Core drops, the supervisor redials and re-establishes every filter the connection held — the trigger resumes without being touched.

A failure that no retry can fix (a rejected certificate, a denied iot:Connect, an untrusted CA) is escalated on the first attempt instead of burning the reconnect budget, and shows on the connection's Health tab with the broker's own reason.

---

Usage Examples

Apply a cloud command on the line

1. AWS IoT Core Subscribe Trigger — filter factory/+/commands
2. Switch Node — branches on $trigger.result.command
3. OPC UA Write — applies the command to the PLC named by $trigger._metadata.topic

Remote setpoint, confirmed

1. AWS IoT Core Shadow Delta Trigger — the line's classic shadow
2. OPC UA Write — writes $trigger.result.state.setpoint
3. AWS IoT Core Update Shadow — reports the applied value, which clears the delta

Fleet telemetry into the UNS

1. AWS IoT Core Subscribe Trigger — filter factory/#, Trigger Mode On Change
2. JavaScript Node — derives the UNS topic from $trigger._metadata.topic
3. UNS Publish — writes the reading into the namespace
