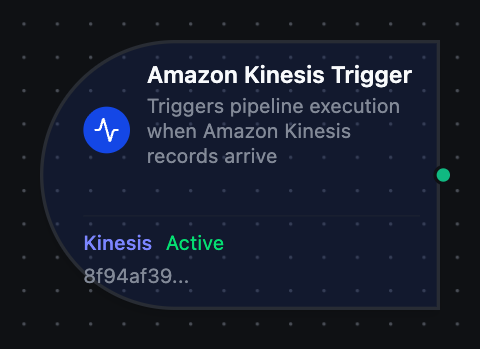

Amazon Kinesis Trigger Node

Overview

The Kinesis Trigger Node automatically initiates MaestroHub pipelines when records arrive on an Amazon Kinesis Data Stream. Unlike the Kinesis Put/Get nodes which act within an already-running pipeline, the Kinesis Trigger starts new pipeline executions in response to incoming records — enabling fully event-driven stream processing.

---

Core Functionality

What It Does

The Kinesis Trigger enables real-time, event-driven pipeline execution by:

1. Event-Driven Pipeline Execution A long-running consumer polls every shard of the stream and fires the pipeline once per record, without manual intervention. Ideal for stream processing, real-time ingestion, and fanning Kinesis events into UNS topics.

2. Shard Discovery Automatically discovers the stream's shards and re-discovers them across resharding, so new shards are consumed without reconfiguration.

3. Record Payload and Metadata Passthrough Each record's payload is passed to the pipeline along with metadata (streamName, shardId, partitionKey, sequenceNumber, and approximateArrivalTimestamp), available to downstream nodes via the $node and $trigger variables.

Single-instance consumer

The consumer is single-instance: durable cross-restart checkpointing and enhanced fan-out are not yet supported. Without durable checkpointing, restarting the consumer re-applies the configured Start Position.

---

Configuration Options

Basic Information

Field	Type	Description
Node Label	String (Required)	Display name for the node on the pipeline canvas
Description	String (Optional)	Explains what this trigger initiates

---

Parameters

Parameter	Type	Default	Required	Constraints	Description
Connection ID	string	""	Yes	--	Kinesis connection profile to use.
Function ID	string	""	Yes	--	Consume function within the connection. Only Consume (Trigger) functions are listed.
Trigger Mode	select	"always"	No	always / onChange	always: Trigger on every record. onChange: Only trigger when the payload differs from the last received value for its key.
Enabled	boolean	true	No	--	Enable/disable the trigger. When disabled, no records are consumed from the stream.
Dedup Max Keys	number	1000	If onChange	1–10,000	Maximum number of distinct partition keys tracked for change detection. Least recently used key is evicted when exceeded.

Function Requirement

The selected function must be a Kinesis Consume (Trigger) function type. Put and Get functions cannot be used with Kinesis Trigger nodes. The stream name and start position are configured on the Consume function itself — see the Consume (Trigger) function reference.

---

Settings

Description

A free-text area for documenting the node's purpose and behavior. Notes entered here are saved with the pipeline and visible to all team members.

Execution Settings

Setting	Options	Default	Description
Timeout (seconds)	number	Pipeline default	Maximum execution time for this node (1–600). Leave empty for pipeline default.
Retry on Timeout	Pipeline Default / Enabled / Disabled	Pipeline Default	Whether to retry the node if it times out.
Retry on Fail	Pipeline Default / Enabled / Disabled	Pipeline Default	Whether to retry on failure. When Enabled, shows Advanced Retry Configuration.
On Error	Pipeline Default / Stop Pipeline / Continue Execution	Pipeline Default	Behavior when node fails after all retries.

Advanced Retry Configuration (visible when Retry on Fail = Enabled)

Field	Type	Default	Range	Description
Max Attempts	number	3	1–10	Maximum retry attempts.
Initial Delay (ms)	number	1000	100–30,000	Wait before first retry.
Max Delay (ms)	number	120000	1,000–300,000	Upper bound for backoff delay.
Multiplier	number	2.0	1.0–5.0	Exponential backoff multiplier.
Jitter Factor	number	0.1	0–0.5	Random jitter (+-percentage).

---

Output Data Structure

When a Kinesis record triggers pipeline execution, the following data is available to downstream nodes via the $trigger variable.

Output Format

{
  "_metadata": {
    "type": "kinesis_trigger",
    "streamName": "plant-telemetry",
    "shardId": "shardId-000000000000",
    "partitionKey": "line-3",
    "sequenceNumber": "49590338271490256608559692538361571095921575989136588898",
    "approximateArrivalTimestamp": "2026-09-05T14:47:19.123Z",
    "protocol": "kinesis",
    "connectionId": "bf29be94-fc0a-4dc4-8e5c-092f1b74eb4b",
    "functionId": "aef374c3-aa2b-454e-aabc-5657faac5950",
    "timestamp": "2026-09-05T14:47:19.123Z"
  },
  "result": {
    "deviceId": "line-3",
    "temperature": 21.5
  }
}

Accessing Record Data

In downstream nodes, use the $trigger variable to access the trigger output:

Field	Expression	Description
Record Payload	$trigger.result	The record data. Valid JSON is delivered parsed — an object, array, number or string — so $trigger.result.<field> reads a field directly. Anything that is not valid JSON is delivered as a string
Stream	$trigger._metadata.streamName	The stream the record was read from
Shard	$trigger._metadata.shardId	The shard the record came from
Partition Key	$trigger._metadata.partitionKey	The partition key the producer wrote the record with
Sequence Number	$trigger._metadata.sequenceNumber	The record's sequence number in the shard — unique and ordered per shard
Arrival Time	$trigger._metadata.approximateArrivalTimestamp	When Kinesis accepted the record (RFC 3339, UTC)
Protocol	$trigger._metadata.protocol	Always kinesis
Connection ID	$trigger._metadata.connectionId	The connection profile the trigger runs on
Function ID	$trigger._metadata.functionId	The subscribe function that received the message
Trigger Type	$trigger._metadata.type	Always kinesis_trigger
Timestamp	$trigger._metadata.timestamp	When MaestroHub received the message (RFC 3339, UTC)

Accessing Nested Payload Data

Every _metadata value is a string — "3", not 3; "false", not false — so compare them as strings. The message itself keeps its JSON types:

• $trigger.result.deviceId — a field of a JSON record
• $trigger.result — the whole record

---

Validation Rules

The Kinesis Trigger Node enforces these validation requirements:

Parameter Validation

Connection ID

• Must be provided and non-empty
• Must reference a valid Kinesis connection profile
• Error: "Kinesis connection is required"

Function ID

• Must be provided and non-empty
• Must reference a valid Kinesis Consume (Trigger) function
• Function must belong to the specified connection
• Error: "Consume function is required"

Enabled Flag

• Must be a boolean if provided
• Error: "Enabled must be a boolean value"

---

Usage Examples

Real-Time Telemetry Processing

Scenario: Consume equipment telemetry records from a Kinesis stream, enrich them with asset metadata, and write the result onward.

Configuration:

• Label: Telemetry Processor
• Connection: Production Kinesis
• Function: Consume from equipment-telemetry (Start Position: LATEST)
• Trigger Mode: always
• Enabled: true

Downstream Processing:

• Parse the record payload to extract readings
• Enrich with asset metadata from a MongoDB lookup
• Apply data-quality validations
• Publish enriched events to UNS topics

Fan Kinesis Events into the UNS

Scenario: Bridge an analytics stream into the Unified Namespace in real time.

Configuration:

• Label: Kinesis → UNS Bridge
• Connection: Analytics Kinesis
• Function: Consume from processed-events (Start Position: TRIM_HORIZON)
• Trigger Mode: always
• Enabled: true

Downstream Processing:

• Map the record to a UNS topic by partition key
• Publish to the UNS
• Log throughput for monitoring

Deduplicated Status Processing

Scenario: Process equipment status records but only when the status actually changes.

Configuration:

• Label: Equipment Status Monitor
• Connection: Factory Kinesis
• Function: Consume from equipment-status (Start Position: LATEST)
• Trigger Mode: onChange
• Dedup Max Keys: 5000
• Enabled: true

Downstream Processing:

• Extract equipment ID and new status from the payload
• Update equipment state in MongoDB
• Send a notification via MS Teams for critical status changes
