Amazon Data Firehose Nodes

Amazon Data Firehose buffers streaming records and delivers them to Amazon S3, Redshift, OpenSearch, Splunk, Snowflake, Iceberg tables or an HTTP endpoint, with no consumers to run. MaestroHub provides two nodes that write to a delivery stream and two that inspect streams.

Configuration Quick Reference

Field	What you choose	Details
Parameters	Connection, Function, Function Parameters, Timeout Override	Select the connection profile, function, configure function parameters with expression support, and optionally override the per-call timeout.
Settings	Description, Timeout (seconds), Retry on Timeout, Retry on Fail, On Error	Node description, maximum execution time, retry behavior on timeout or failure, and error handling strategy. All execution settings default to pipeline-level values.

Zoom

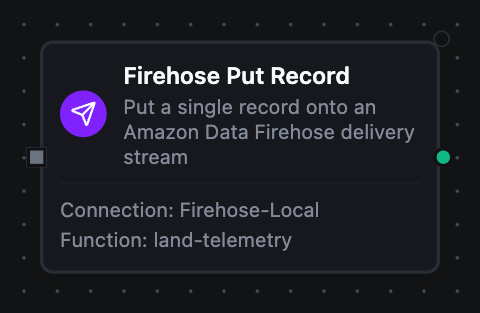

Amazon Data Firehose Put Record Node

Amazon Data Firehose Put Record Node

Write one record to a Direct PUT delivery stream. A trailing newline is added by default so records land in S3 as JSON Lines.

Supported Function Types:

Function Name	Purpose	Common Use Cases
Put Record	Put one record onto a delivery stream	Telemetry into an S3 data lake, quality events into OpenSearch, rows into Redshift

How It Works

When the pipeline executes, the Put Record node:

1. Resolves the configured Firehose connection profile and loads AWS credentials (static IAM keys or the SDK default credential chain)
2. Renders the templated fields (Delivery Stream, Data) against the current pipeline context
3. Encodes the data: a string is sent as-is, an object or array is JSON-encoded, and a newline is appended unless Append Newline is off or the record already ends in one
4. Rejects a record over 1,000 KiB before any call is made
5. Calls PutRecord, using the per-call timeout override or the connection default
6. Returns the record ID Firehose assigned and whether the stream encrypted it

Configuration

Field	What you choose	Details
Connection	Amazon Data Firehose connection profile	Select a pre-configured connection from your connection library
Function	Put Record function	Choose a Firehose Put Record function that defines the delivery stream and the record
Function Parameters	Record values	Configure dynamic values for Delivery Stream and Data using expressions or constants
Timeout Override	Per-call timeout	Optional. Overrides the connection-level request timeout for this node only. A Go duration string between 1s and 1h (e.g. 30s). Leave empty to use the connection default; 0 is not accepted.

For detailed function configuration options, including why newline delimiting is on by default, see the Amazon Data Firehose Put Record Function documentation.

Throttling Is Retried, a Wrong Stream Is Not

When a stream is over its throughput limit, Firehose answers ServiceUnavailableException. The node treats it as transient, and the pipeline's retry settings apply. A stream that does not exist (ResourceNotFoundException) or does not accept direct writes (InvalidArgumentException, a stream fed by Kinesis or MSK) fails at once, since retrying cannot fix it.

Amazon Data Firehose Put Records (Batch) Node

Write up to 500 records in one call. Each element of the records array becomes one record.

Function Name	Purpose	Common Use Cases
Put Records (Batch)	Put up to 500 records onto a delivery stream	Flushing a buffered window of readings, bulk-loading query results

Partial Failure Fails the Node

Firehose can accept some records of a batch and refuse others, and it still answers HTTP 200. The node resends only the refused records, up to the connection's Max Retries, and fails if any record is still refused after that. The per-record results go with the failure, so an On Error branch can see which records landed.

Amazon Data Firehose Describe Delivery Stream Node

Read a delivery stream's status, source, encryption and destination. Use it to gate a load on the stream being ACTIVE, or to record where data lands.

Function Name	Purpose	Common Use Cases
Describe Delivery Stream	Inspect one delivery stream	Pre-load readiness checks, destination audits

Amazon Data Firehose List Delivery Streams Node

List the delivery stream names in the connection's region, optionally only those of one source type, up to the function's item budget.

Function Name	Purpose	Common Use Cases
List Delivery Streams	Discover delivery streams	Inventory audits, resolving streams for a ForEach loop

Reading Data Back

Firehose has no API to read the records it carries. To read what a pipeline landed, query the destination, for example with the Amazon S3 or Amazon Athena connector over the delivered objects.

Output

Every Firehose node delivers its data under result, and execution facts (success, functionId, durationMs, timestamp) under _metadata:

Node	Expression	Description
Put Record	$node["Name"].result.recordId	The id Firehose assigned to the record
Put Record, Put Records (Batch)	$node["Name"].result.encrypted	Whether server-side encryption was on for the stream
Put Records (Batch)	$node["Name"].result.records	One object per record, in the order submitted: recordId when it landed, errorCode and errorMessage when Firehose refused it. All three keys are always present; the ones that do not apply are empty
	$node["Name"].result.successCount	How many records landed
	$node["Name"].result.failedPutCount	How many records Firehose still refused after the resends
	$node["Name"]._metadata.attempts	How many PutRecordBatch calls the node made: the first send plus the resends
Describe Delivery Stream	$node["Name"].result.deliveryStreamName, $node["Name"].result.deliveryStreamArn	The stream's name and ARN
	$node["Name"].result.status	ACTIVE, CREATING, DELETING, or a *_FAILED state
	$node["Name"].result.type	Where the stream reads from: DirectPut, KinesisStreamAsSource, MSKAsSource or DatabaseAsSource
	$node["Name"].result.sourceArn	The Kinesis data stream or MSK cluster the stream reads from; empty for DirectPut
	$node["Name"].result.versionId	The stream's configuration version
	$node["Name"].result.createTimestamp, $node["Name"].result.lastUpdateTimestamp	When the stream was created and last changed, in UTC; lastUpdateTimestamp is empty if it never changed
	$node["Name"].result.encryption	Server-side encryption: status, keyType and keyArn
	$node["Name"].result.destinations	One object per destination: destinationId, type (extended_s3, s3, redshift, opensearch, opensearch_serverless, elasticsearch, splunk, http_endpoint, snowflake, iceberg) and target, the bucket, cluster, domain, endpoint, account or catalog it delivers to
	$node["Name"].result.failureDescription	Why the stream is in a failed state; empty otherwise
List Delivery Streams	$node["Name"].result.deliveryStreams	The stream names
	$node["Name"].result.count	How many were listed
	$node["Name"]._metadata.truncated	true when the item budget stopped the listing and more streams exist
Every node	$node["Name"]._metadata.method, $node["Name"]._metadata.connectionId, $node["Name"]._metadata.protocol	The call's other facts: the operation, the connection it ran over, and firehose
	$node["Name"]._metadata.deliveryStreamName	The stream the call wrote to, on Put Record and Put Records (Batch). Describe Delivery Stream carries it in result.deliveryStreamName instead
