OPC UA Trigger Node

Overview

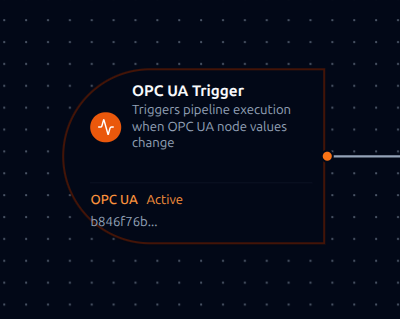

The OPC UA Trigger Node automatically initiates MaestroHub pipelines when monitored OPC UA node values change. Unlike the OPC UA Read connector node which reads values within an already-running pipeline, the OPC UA Trigger starts new pipeline executions in response to value changes—enabling fully event-driven automation without polling.

---

Core Functionality

What It Does

1. Event-Driven Pipeline Execution Start pipelines automatically when OPC UA node values change, without manual intervention or polling. Perfect for equipment monitoring, alarm processing, and real-time production data flows.

2. Automatic Subscription Management Subscriptions and monitored items are created and cleaned up automatically—no manual OPC UA subscription management required. The system handles connection lifecycle and resubscription after reconnections.

3. Rich Value Change Data Each value change notification includes the node value, data type, source and server timestamps, status code, and full node identification—all passed directly to downstream nodes.

4. Multi-Pipeline Support Multiple pipelines can subscribe to the same connection and monitor function. Each data change event is dispatched to all matching pipeline triggers.

---

How OPC UA Monitoring Works

OPC UA monitoring is fundamentally different from read operations:

Aspect	Read Operation	Monitor (Subscription)
Model	Request-response (pull)	Event-driven (push)
Execution	One-time value retrieval	Continuous streaming
Lifecycle	Stateless	Stateful subscription
Use Case	On-demand data access	Real-time change detection

When you configure an OPC UA Trigger:

1. MaestroHub creates a Subscription on the OPC UA server with the configured publishing interval
2. Monitored Items are registered for each configured node with individual sampling intervals, queue sizes, and discard policies
3. The server samples nodes at the configured sampling interval
4. Value changes are queued and published at the publishing interval
5. Each notification triggers a new pipeline execution with the changed value data

This push-based model is optimized for low-latency, continuous telemetry in industrial environments.

---

Reconnection Handling

MaestroHub automatically handles connection disruptions to ensure reliable monitoring.

Automatic Recovery

When an OPC UA connection is lost and restored:

1. Connection Lost: The system detects the disconnection automatically
2. Connection Restored: Subscriptions and monitored items are automatically recreated
3. Transparent Recovery: Pipelines continue to receive value changes once the connection is restored—no manual intervention required

What This Means for Your Workflows

Scenario	Behavior
Brief network interruption	Automatic resubscription after reconnection
OPC UA server restart	Subscriptions automatically restored when server comes back online
Session timeout	New session established with all monitors restored
MaestroHub restart	All triggers for enabled pipelines are restored on startup

Queue Size and Data Loss

To minimize data loss during brief outages, configure your Monitor function with appropriate Queue Size settings. Larger queues buffer more notifications but use more server memory.

---

Configuration Options

Basic Information

Field	Type	Description
Node Label	String (Required)	Display name for the node on the pipeline canvas. Must be non-empty (trimmed).
Description	String (Optional)	Explains what this trigger initiates.

---

Parameters

The trigger configuration is organized across two tabs in the UI: Parameters and Settings.

Parameter	Type	Default	Required	Description
Connection	Connection ID	""	Yes	The OPC UA connection profile to use for subscribing. Filtered to OPC UA connections only.
Monitor Function	Function ID	""	Yes	The OPC UA Monitor function that defines nodes and subscription settings. Filtered to monitor function types.
Enabled	boolean	true	No	When disabled, the subscription is not created even if the pipeline is enabled.

Function Requirement

The selected function must be an OPC UA Monitor function type (opcua.monitor). Read, Write, and Browse functions cannot be used with OPC UA Trigger nodes.

Monitor Function Configuration

The Monitor function (configured separately in the Connectors module) controls the OPC UA subscription parameters:

Setting	Description	Default
Nodes	Array of OPC UA nodes to monitor (namespace index + identifier)	--
Publishing Interval	How often the server sends notifications (ms)	1000
Sampling Interval	Per-node sampling rate (ms)	1000
Queue Size	Per-node notification buffer size	10
Discard Oldest	Drop oldest notifications when queue is full	true

---

Settings

Description

A free-text area for documenting the node's purpose and behavior. Notes entered here are saved with the pipeline and visible to all team members.

Execution Settings

Setting	Options	Default	Description
Timeout (seconds)	number	Pipeline default	Maximum execution time for this node (1--600). Leave empty for pipeline default.
Retry on Timeout	Pipeline Default / Enabled / Disabled	Pipeline Default	Whether to retry the node if it times out.
Retry on Fail	Pipeline Default / Enabled / Disabled	Pipeline Default	Whether to retry on failure. When Enabled, shows Advanced Retry Configuration.
On Error	Pipeline Default / Stop Pipeline / Continue Execution	Pipeline Default	Behavior when node fails after all retries.

Advanced Retry Configuration (visible when Retry on Fail = Enabled)

Field	Type	Default	Range	Description
Max Attempts	number	3	1--10	Maximum retry attempts.
Initial Delay (ms)	number	1000	100--30,000	Wait before first retry.
Max Delay (ms)	number	120000	1,000--300,000	Upper bound for backoff delay.
Multiplier	number	2.0	1.0--5.0	Exponential backoff multiplier.
Jitter Factor	number	0.1	0--0.5	Random jitter (+-percentage).

---

Output Data Structure

When an OPC UA node value changes and triggers pipeline execution, the trigger produces a structured output with two top-level keys: _metadata and payload.

Unlike the debounced OPC DA and Ignition triggers, each OPC UA value change notification produces one event per monitored item. The OPC UA server's publishing interval controls how notifications are batched.

Output Format

{
  "_metadata": {
    "connectionId": "bf29be94-fc0a-4dc4-8e5c-092f1b74eb4b",
    "functionId": "aef374c3-aa2b-454e-aabc-5657faac5950",
    "timestamp": 1704067245,
    "protocol": "opcua",
    "nodeId": "ns=2;i=1001",
    "namespaceIndex": "2",
    "identifier": "i=1001",
    "sourceTimestamp": "2024-01-15T10:30:45.123456789Z",
    "serverTimestamp": "2024-01-15T10:30:45.123456789Z",
    "statusCode": "0x00000000"
  },
  "payload": {
    "value": 42.5,
    "sourceTimestamp": "2024-01-15T10:30:45.123456789Z",
    "serverTimestamp": "2024-01-15T10:30:45.123456789Z",
    "statusCode": "0x00000000",
    "dataType": "Double"
  }
}

_metadata Fields

Field	Type	Description
connectionId	string	The OPC UA connection profile ID.
functionId	string	The Monitor function ID.
timestamp	number	Unix timestamp (seconds) when the event was received.
protocol	string	Always "opcua".
nodeId	string	Full OPC UA node identifier (e.g., "ns=2;i=1001", "ns=3;s=Temperature").
namespaceIndex	string	Namespace index of the monitored node.
identifier	string	Node identifier string (e.g., "i=1001", "s=Temperature", "g=<guid>", "b=0x1234").
sourceTimestamp	string	ISO 8601 (RFC 3339 nanoseconds) — when the value was sampled at the source.
serverTimestamp	string	ISO 8601 (RFC 3339 nanoseconds) — when the OPC UA server processed the notification.
statusCode	string	OPC UA status code as hex string (e.g., "0x00000000" = Good).

payload Fields

Field	Type	Description
value	any	The current value of the monitored node. Type matches the OPC UA data type.
sourceTimestamp	string	ISO 8601 — when the value was sampled at the source.
serverTimestamp	string	ISO 8601 — when the OPC UA server processed the notification.
statusCode	string	OPC UA status code as hex string.
dataType	string	OPC UA data type name (see Supported Data Types).

Supported Data Types

The dataType field reflects the OPC UA node's data type:

Data Type	Example Value
Boolean	true
SByte, Byte	127, 255
Int16, UInt16	32000, 65000
Int32, UInt32	2147483647, 4294967295
Int64, UInt64	9223372036854775807
Float, Double	3.14, 42.5
String	"Running"
DateTime	"2024-01-15T10:30:00Z"
Guid	"09087e75-8e5e-499b-954f-f2a9603db28a"
ByteString	"0x1234"
NodeId	"ns=2;i=1001"

Node Identifier Formats

OPC UA nodes are identified by namespace index and identifier type:

Type	Format	Example
Numeric	i=<number>	ns=2;i=2258
String	s=<string>	ns=3;s=Temperature
GUID	g=<guid>	ns=4;g=09087e75-8e5e-499b-954f-f2a9603db28a
ByteString	b=0x<hex>	ns=5;b=0x1234

Referencing in Downstream Nodes

Use expressions to access value change data in subsequent nodes:

• $trigger.payload.value -- the current value of the monitored node
• $trigger.payload.dataType -- the OPC UA data type name
• $trigger.payload.statusCode -- quality status code
• $trigger._metadata.nodeId -- full node identifier (e.g., "ns=2;i=1001")
• $trigger._metadata.identifier -- short identifier (e.g., "i=1001")
• $trigger._metadata.sourceTimestamp -- when the value was sampled
• $trigger._metadata.connectionId -- connection profile used
• $trigger._metadata.functionId -- monitor function used

---

Validation Rules

Parameter Validation

Node Label

• Must not be empty
• Must not consist only of whitespace
• Error: "Node name is required"

Connection ID

• Must be provided and non-empty
• Must reference a valid OPC UA connection profile
• Error: "OPC UA connection is required"

Function ID

• Must be provided and non-empty
• Must reference a valid OPC UA Monitor function
• Function must belong to the specified connection
• Error: "monitor function is required"

Enabled Flag

• Must be a boolean if provided
• Error: "Enabled must be a boolean value"

---

Usage Examples

Real-Time Temperature Monitoring

Key configuration

• Label: Equipment Temperature Monitor
• Connection: Factory OPC UA Server
• Function: Monitor function subscribing to temperature nodes (ns=2;i=1001) with 100ms publishing interval
• Enabled: true
• Settings: on error stop

Downstream usage: $trigger.payload.value for the temperature reading, $trigger.payload.dataType to confirm it's a Double, $trigger._metadata.sourceTimestamp for the sample time.

Production Counter Tracking

Key configuration

• Label: Production Counter Tracker
• Connection: PLC OPC UA Server
• Function: Monitor function for counter nodes with queue size of 50 to capture all increments
• Enabled: true
• Settings: retry disabled, on error stop

Downstream usage: $trigger.payload.value for the counter value, calculate production rate from consecutive values using $trigger._metadata.sourceTimestamp.

Alarm Condition Processing

Key configuration

• Label: Equipment Alarm Handler
• Connection: SCADA OPC UA Server
• Function: Monitor function for alarm nodes with sampling interval of 0 (fastest possible)
• Enabled: true
• Settings: on error stop

Downstream usage: $trigger.payload.value for alarm state, $trigger._metadata.nodeId to identify which alarm fired, $trigger.payload.statusCode to verify data quality.

Multi-Node Quality Monitoring

Key configuration

• Label: Quality Parameter Monitor
• Connection: Quality System OPC UA Server
• Function: Monitor function with nodes for temperature, pressure, flow rate, and vibration
• Enabled: true
• Settings: retry disabled, on error continue

Downstream usage: $trigger._metadata.identifier to determine which parameter changed (e.g., "i=1001" = temperature, "i=1002" = pressure), then route to the appropriate quality check logic.

---

Best Practices

Subscription Configuration

• Configure your Monitor function with appropriate Publishing Interval for your use case (100–1000ms typical)
• Set Sampling Interval equal to or faster than publishing interval for critical nodes
• Use Queue Size > 1 for nodes where every change must be captured
• Enable Discard Oldest = true to always see the most recent value

Designing for Reliability

Practice	Rationale
Use appropriate Queue Size	Larger queues buffer notifications during network hiccups
Set Discard Oldest = true	Ensures you always see the most recent value
Keep monitored node count reasonable	Each node adds server-side sampling overhead
Group related nodes in one function	Reduces subscription overhead while maintaining logical grouping

Error Handling Strategies

For Critical Workflows:

• Set On Error to stopPipeline
• Monitor pipeline execution failures
• Implement alerting for stopped pipelines

For Best-Effort Processing:

• Set On Error to continueExecution
• Log failed executions for later analysis
• Ensure downstream nodes handle partial failures gracefully

Performance Considerations

Scenario	Recommendation
High-frequency changes	Increase publishing interval to batch notifications; use larger queue sizes
Many monitored nodes	Split across multiple Monitor functions; consider sampling intervals
Critical real-time data	Use sampling interval of 0; minimize publishing interval
Resource-constrained OPC UA servers	Reduce number of monitored items; increase sampling intervals

Status Code Interpretation

OPC UA status codes are returned as hex strings. Common values:

Status Code	Meaning
0x00000000	Good — value is reliable
0x40000000	Uncertain — value may not be accurate
0x80000000	Bad — value is not usable

Always check $trigger.payload.statusCode before processing values in critical workflows.

Enable vs. Disable

• Use the trigger's Enabled parameter to temporarily pause monitoring without changing pipeline state
• Disable triggers during maintenance windows to prevent processing stale reconnection data
• Document the reason for disabled triggers in the node's Notes field
