MQTT trigger node

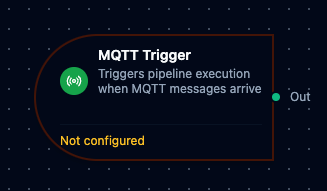

MQTT Trigger Node

Overview

The MQTT Trigger Node automatically initiates MaestroHub pipelines when messages arrive on subscribed MQTT topics. Unlike the MQTT Subscribe connector node which receives messages within an already-running pipeline, the MQTT Trigger starts new pipeline executions in response to incoming messages—enabling fully event-driven automation.

Core Functionality

What It Does

MQTT Trigger enables real-time, event-driven pipeline execution by:

1. Event-Driven Pipeline Execution
Start pipelines automatically when MQTT messages arrive, without manual intervention or polling. Perfect for IoT sensor ingestion, command processing, and real-time data flows.

2. Automatic Subscription Management
Subscriptions are created and cleaned up automatically—no manual subscription management required.

3. Message Payload Passthrough
Incoming MQTT message payloads are passed directly to the pipeline, making them available to all downstream nodes via the $input variable.

Reconnection Handling

MaestroHub automatically handles connection disruptions to ensure reliable message delivery.

Automatic Recovery

When an MQTT connection is lost and restored:

Connection Lost: The system detects the disconnection automatically
Connection Restored: Subscriptions are automatically re-established within seconds
Transparent Recovery: Pipelines continue to receive messages once the connection is restored—no manual intervention required

What This Means for Your Workflows

Scenario	Behavior
Brief network interruption	Automatic resubscription after reconnection
Broker restart	Subscriptions automatically restored when broker comes back online
MaestroHub restart	All triggers for enabled pipelines are restored on startup

QoS and Message Retention

To minimize message loss during brief outages, configure your MQTT Subscribe function with QoS 1 or QoS 2 and ensure your broker supports message persistence.

Configuration Options

Basic Information

Field	Type	Description
Node Label	String (Required)	Display name for the node on the pipeline canvas
Description	String (Optional)	Explains what this trigger initiates

Parameters

Parameter	Type	Default	Required	Constraints	Description
Connection ID	string	`""`	Yes	--	MQTT connection profile to use.
Function ID	string	`""`	Yes	--	Subscribe function within the connection.
Trigger Mode	select	`"always"`	No	always / onChange	always: Trigger on every message. onChange: Only trigger when payload differs.
Enabled	boolean	`true`	No	--	Enable/disable the trigger.
Dedup Max Keys	number	`1000`	If onChange	1--10,000	Maximum tracked topic hashes for change detection.
Dedup TTL	select	--	If onChange	1h / 6h / 12h / 24h / 72h / 168h	Dedup state TTL. Enterprise only.

Function Requirement

The selected function must be an MQTT Subscribe function type. Publish functions cannot be used with MQTT Trigger nodes.

Settings

Description

A free-text area for documenting the node's purpose and behavior. Notes entered here are saved with the pipeline and visible to all team members.

Execution Settings

Setting	Options	Default	Description
Timeout (seconds)	number	Pipeline default	Maximum execution time for this node (1--600). Leave empty for pipeline default.
Retry on Timeout	Pipeline Default / Enabled / Disabled	Pipeline Default	Whether to retry the node if it times out.
Retry on Fail	Pipeline Default / Enabled / Disabled	Pipeline Default	Whether to retry on failure. When Enabled, shows Advanced Retry Configuration.
On Error	Pipeline Default / Stop Pipeline / Continue Execution	Pipeline Default	Behavior when node fails after all retries.

Advanced Retry Configuration (visible when Retry on Fail = Enabled)

Field	Type	Default	Range	Description
Max Attempts	number	3	1--10	Maximum retry attempts.
Initial Delay (ms)	number	1000	100--30,000	Wait before first retry.
Max Delay (ms)	number	120000	1,000--300,000	Upper bound for backoff delay.
Multiplier	number	2.0	1.0--5.0	Exponential backoff multiplier.
Jitter Factor	number	0.1	0--0.5	Random jitter (+-percentage).

Output Data Structure

When an MQTT message triggers pipeline execution, the following data is available to downstream nodes via the $input variable.

Output Format

{
  "type": "mqtt_trigger",
  "connectionId": "bf29be94-fc0a-4dc4-8e5c-092f1b74eb4b",
  "functionId": "aef374c3-aa2b-454e-aabc-5657faac5950",
  "enabled": true,
  "node_id": "trigger.mqtt-1",
  "message": "MQTT trigger provides configuration for event-based triggering",
  "payload": {
    "temperature": 23.5,
    "unit": "celsius"
  }
}

Accessing Message Data

In downstream nodes, use the $input variable to access the trigger output:

Field	Expression	Description
Message Payload	`$input.payload`	The parsed MQTT message content (JSON object or raw value)
Connection ID	`$input.connectionId`	The MQTT connection profile used
Function ID	`$input.functionId`	The MQTT Subscribe function that received the message
Node ID	`$input.node_id`	The trigger node identifier
Trigger Type	`$input.type`	Always `mqtt_trigger`

Accessing Nested Payload Data

If your MQTT messages contain JSON, access nested fields directly:

$input.payload.temperature — Access a specific field
$input.payload — Access the entire message object

Validation Rules

The MQTT Trigger Node enforces these validation requirements:

Parameter Validation

Connection ID

Must be provided and non-empty
Must reference a valid MQTT connection profile
Error: "connectionId is required"

Function ID

Must be provided and non-empty
Must reference a valid MQTT Subscribe function
Function must belong to the specified connection
Error: "functionId is required"

Enabled Flag

Must be a boolean if provided
Error: "enabled must be a boolean"

Settings Validation

On Error

Must be one of: stopPipeline, continueExecution, retryNode
Error: "onError must be a valid error handling option"

Usage Examples

IoT Sensor Data Ingestion

Scenario: Process temperature readings from factory sensors in real-time.

Configuration:

Label: Factory Temperature Monitor
Connection: Production MQTT Broker
Function: Subscribe to sensors/temperature/# (all temperature topics)
Enabled: true

Downstream Processing:

Parse JSON payload to extract temperature value
Check if temperature exceeds threshold
Send alert if threshold exceeded
Store reading in time-series database

Command Processing

Scenario: Execute machine commands received from a central control system.

Configuration:

Label: Machine Command Handler
Connection: Control System MQTT
Function: Subscribe to commands/machine-01/+ (all command types for machine-01)
Enabled: true

Downstream Processing:

Validate command structure
Route to appropriate PLC write node based on command type
Log command execution result
Publish acknowledgment to response topic

Multi-Plant Event Aggregation

Scenario: Aggregate events from multiple manufacturing plants for centralized monitoring.

Configuration:

Label: Plant Event Aggregator
Connection: Enterprise MQTT Broker
Function: Subscribe to plants/+/events/# (all events from all plants)
Enabled: true

Downstream Processing:

Extract plant ID from topic
Normalize event format
Route critical events to alerting system
Store all events in central data lake

Best Practices

Connection Health Monitoring

Configure your MQTT connection with Keep Alive intervals appropriate for your network (default: 60 seconds)
Enable Auto Reconnect on the connection profile for automatic recovery
Monitor connection status through MaestroHub's connection health dashboard

Designing for Reliability

Practice	Rationale
Use QoS 1 or 2 for critical messages	Ensures delivery acknowledgment and reduces message loss
Enable Clean Session = false (MQTT v3.1.1) or Session Expiry > 0 (MQTT v5.0)	Allows broker to queue messages during brief disconnections
Keep topic filters specific	Reduces unnecessary message processing and improves performance
Use wildcard topics judiciously	Broad wildcards (`#`) can result in high message volumes

Error Handling Strategies

For Critical Workflows:

Set On Error to stopPipeline
Monitor pipeline execution failures
Implement alerting for stopped pipelines

For Best-Effort Processing:

Set On Error to continueExecution
Log failed messages for later analysis
Ensure downstream nodes handle partial failures gracefully

Performance Considerations

Scenario	Recommendation
High message volume	Use specific topic filters; consider message batching in downstream nodes
Large payloads	Ensure adequate memory for payload processing; consider streaming for very large messages
Multiple triggers on same topic	MaestroHub optimizes this with shared subscriptions—no action needed
Burst traffic	Monitor pipeline execution queue; consider rate limiting in upstream systems

Enable vs. Disable

Use the trigger's Enabled parameter to temporarily pause message processing without changing pipeline state
Disable triggers during maintenance windows to prevent message processing
Document the reason for disabled triggers in the node's Notes field
