File Extractor node

File Extractor Node

Overview

• Type: transform.file.extractor
• Display Name: File Extractor
• Category: transform
• Execution: supportsExecution: true
• I/O Handles:
  • Input: defaultIn (left)
  • Outputs: result (Success), error (Error)

Purpose: Convert binary file data to JSON by extracting and parsing data from CSV and Excel files with advanced filtering, column selection/mapping, and row manipulation.

---

Configuration Reference

Basic: format, input field, CSV/Excel specifics

Basic

Columns: ranges, selection mode, mappings

Columns

Filters, rows, and processing options

Filters, Rows, Processing

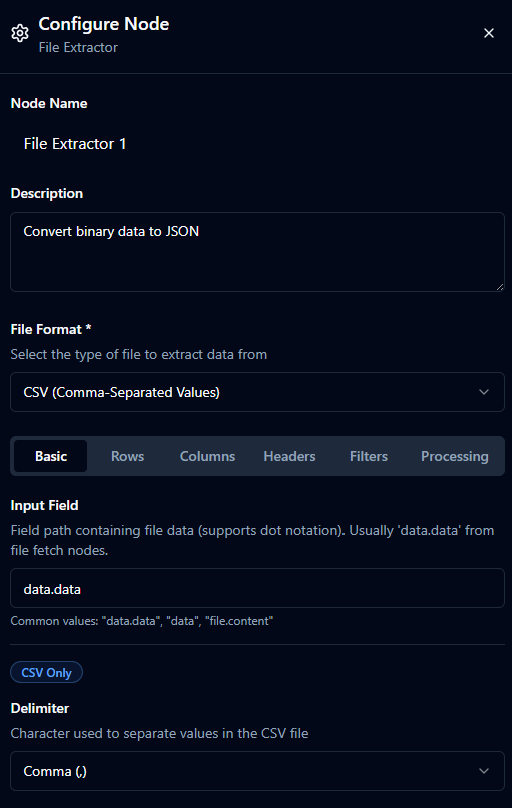

Basic Configuration

Parameter	Type	Default	Required	Description
File Format	select	"CSV"	Yes	CSV / Excel.
Input Field	string	"data.data"	Yes	Dot path to binary/encoded file content from the incoming message.

CSV-Specific

Parameter	Type	Default	Required	Description
Delimiter	string (1 char)	","	Yes (CSV)	Character to separate values. One of , ; \t `

Excel-Specific

Parameter	Type	Default	Required	Description
Sheet Name	string	""	No	Target sheet; empty = first sheet.

Row Selection

Parameter	Type	Default	Visible When	Description
Range Mode	select	"auto"	Excel only	auto / manual / headerSearch.
Start Row	number (min 1)	1	CSV always, Excel manual	First row to read (1-based).
End Row	number	0	CSV always, Excel manual	0 = all. If non-zero, must be >= startRow.
Max Rows	number	0	Always	0 = unlimited. Applied after filters.

Notes:

• Range Mode auto: detects data region automatically (Excel). Only maxRows applies.
• Range Mode manual: enables startRow, endRow, and column ranges (Excel).
• Range Mode headerSearch: header row found by text search; see Header Configuration.

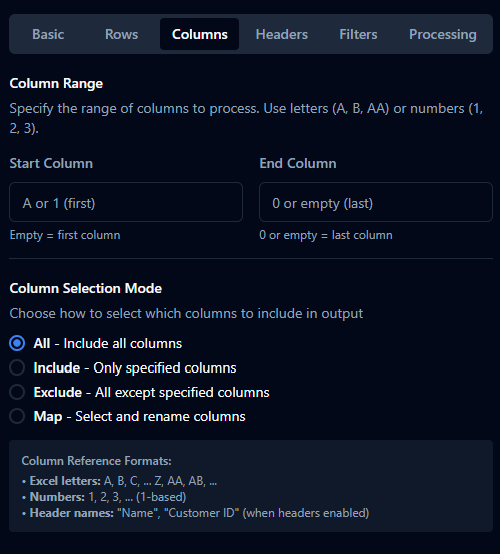

Column Selection

Column Range (CSV and Excel manual mode)

Parameter	Type	Default	Description
Start Column	string	""	A/1/AA or header name; empty = first column.
End Column	string	""	A/1/AA/header name; 0 or empty = last column.

Column Selection Mode

Parameter	Type	Default	Description
Column Mode	select	"all"	all / include / exclude / map.
Columns	array	[]	Used when columnMode is not all. Each entry: { column: string; rename?: string }.

• include: only listed columns.
• exclude: all except listed.
• map: select and optionally rename.

Header Configuration

Parameter	Type	Default	Visible When	Description
Has Headers	boolean	true	Always	First row contains header names.
Include Headers	boolean	true	Has Headers	Include the header row in output metadata.
Normalize Headers	boolean	true	Has Headers	Trim whitespace; handle duplicates with suffix _2, _3, ...
Header Search Text	string	""	Has Headers	Optional for CSV/Excel auto/manual; required for Excel headerSearch.
Header Search Column	string	""	When search text set	Optional column limit (A/1/header).

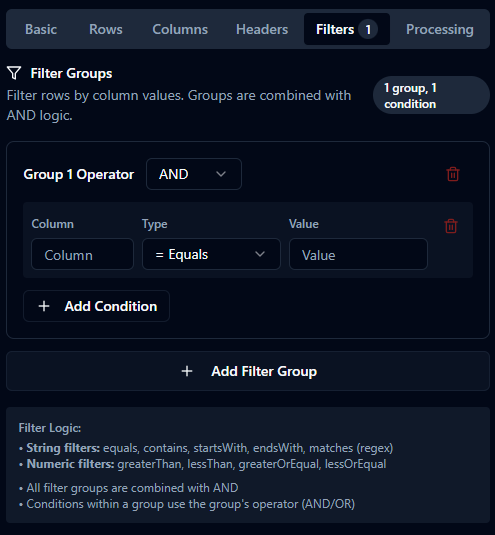

Filtering

filterGroups: { op: 'AND'|'OR', conditions: FilterCondition[] }[]

FilterCondition: { column: string, type: FilterType, value: string }

• String: equals | contains | startsWith | endsWith | matches
• Numeric: greaterThan | lessThan | greaterOrEqual | lessOrEqual

Notes:

• All groups combine with AND.
• Column names are case-insensitive.
• Missing columns treated as empty strings.
• matches uses regex; invalid patterns rejected.
• Numeric types require numeric value (commas allowed; stripped).

Processing Options

Parameter	Type	Default	Visible When	Description
Trim Whitespace	boolean	true	Always	Trim surrounding whitespace per value.
Skip Empty Rows	boolean	true	Always	Skip rows with no meaningful content.
Preserve Types	boolean	true	Excel only	Keep numbers/booleans typed; dates as ISO strings.

Settings

Setting	Options	Default	Description
Timeout (seconds)	number	Pipeline default	Maximum execution time for this node (1--600).
Retry on Timeout	Pipeline Default / Enabled / Disabled	Pipeline Default	Whether to retry on timeout.
Retry on Fail	Pipeline Default / Enabled / Disabled	Pipeline Default	Whether to retry on failure. When Enabled, shows Advanced Retry Configuration.
On Error	Pipeline Default / Stop Pipeline / Continue Execution	Pipeline Default	Behavior when node fails after all retries.

Advanced Retry Configuration

Only visible when Retry on Fail is set to Enabled.

Field	Type	Default	Range	Description
Max Attempts	number	3	1--10	Maximum retry attempts.
Initial Delay (ms)	number	1000	100--30,000	Wait before first retry.
Max Delay (ms)	number	120000	1,000--300,000	Upper bound for backoff delay.
Multiplier	number	2.0	1.0--5.0	Exponential backoff multiplier.
Jitter Factor	number	0.1	0--0.5	Random jitter.

---

Output Format

Example output:

{
  "success": true,
  "rows": [
    { "Name": "John", "Age": 30, "Status": "Active" },
    { "Name": "Jane", "Age": 25, "Status": "Active" }
  ],
  "metadata": {
    "totalRows": 100,
    "filteredRows": 2,
    "returnedRows": 2,
    "headers": ["Name", "Age", "Status"],
    "format": "csv",
    "sheetName": "Sheet1"
  }
}

Error Packet

{
  "success": false,
  "error": "Sheet 'Data' not found in workbook",
  "errorType": "SheetNotFound"
}

Common errors: Invalid format; missing file data; invalid base64; invalid file; sheet not found; invalid column reference; header not found; invalid filter.

---

Validation Rules

• label: required (non-empty)
• fileFormat: must be CSV|Excel
• inputField: required (non-empty)
• CSV: delimiter required (exactly 1 char)
• Excel: rangeMode in auto|manual|headerSearch
• Excel header search: headerSearchText required when rangeMode==='headerSearch'
• startRow: ≥ 1 when provided; endRow: 0 or ≥ startRow; maxRows: ≥ 0
• columnMode: one of all|include|exclude|map; columns required when mode ≠ all
• filterGroups: each group has op in AND|OR and at least one condition; types valid; regex validated; numeric values parseable

---

Using with Local File "Fetch"

This node consumes file content produced earlier in the pipeline.

1. Local File connection → Function: Fetch Local File
2. Connect the function node’s result output to the File Extractor’s defaultIn input.
3. Ensure inputField targets the file content. Default data.data matches common File Fetch output.

Examples

• CSV: inputField: 'data.data', fileFormat: 'CSV', delimiter: ',', hasHeaders: true, columnMode: 'include', columns: [{ column: 'Date' }, { column: 'Total' }]
• Excel: inputField: 'data.data', fileFormat: 'Excel', sheetName: 'Summary', rangeMode: 'headerSearch', headerSearchText: 'Customer ID', columnMode: 'map', columns: [{ column: 'A', rename: 'id' }, { column: 'CustomerName', rename: 'name' }]

---

Common Use Cases

• Simple CSV import with headers (all defaults)
• Excel sheet extraction with mapped columns (use Map mode)
• Filtered data with row limit (combine filters + maxRows)
• Excel with variable header position (use Header Search)
• Skipping metadata rows (set Start Row)

---

Tips & Troubleshooting

• Use Header Search for variable report layouts.
• Enable Trim Whitespace to avoid subtle mismatches.
• Start with small maxRows during testing.
• Use Column Mapping to standardize names.
• Enable Skip Empty Rows to clean output.
• Preserve Types (Excel) to maintain numeric/boolean fidelity.
• Test regex patterns before production.

---

Version History

Version 1.0 - Initial unified node release

• CSV and Excel file support
• Advanced filtering
• Column selection and mapping
• Header search capability
• Excel range modes (auto/manual/headerSearch)

---
