File Extractor node

File Extractor Node

Overview

• Type: transform.file.extractor
• Display Name: File Extractor
• Category: transform
• Execution: supportsExecution: true

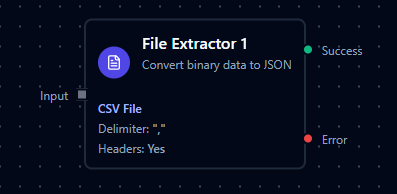

• I/O Handles:
  • Input: defaultIn (left)
  • Outputs: result (Success), error (Error)

Purpose: Convert binary file data to JSON by extracting and parsing data from CSV and Excel files with advanced filtering, column selection/mapping, and row manipulation.

---

Configuration Reference

Basic: format, input field, CSV/Excel specifics

Basic

Columns: ranges, selection mode, mappings

Columns

Filters, rows, and processing options

Filters, Rows, Processing

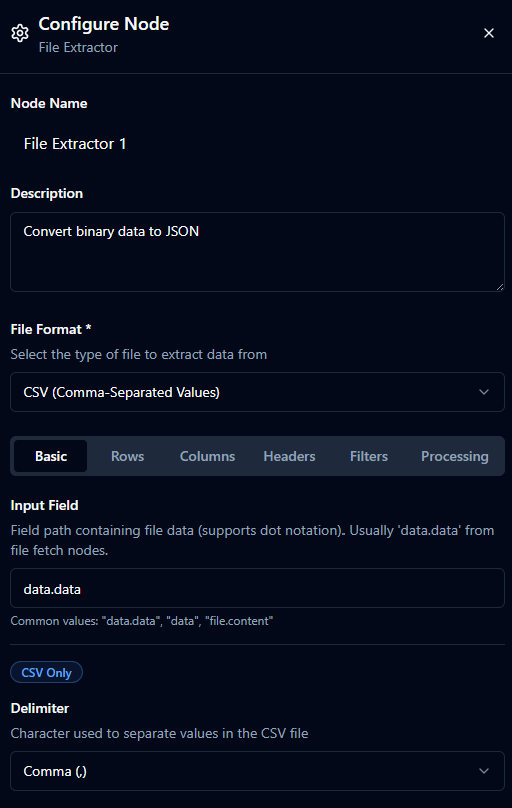

Basic

Field	Type	Default	Description
File Format	enum	CSV	One of CSV
Input Field	string	data.data	Dot path to binary/encoded file content from the incoming message.

CSV-Specific

Field	Type	Default	Description
Delimiter	string (1 char)	,	Character to separate values. One of , ; \t `

Excel-Specific

Field	Type	Default	Description
Sheet Name	string	""	Target sheet; empty = first sheet.

Rows

Field	Type	Default	Visible When	Description
Range Mode	enum	auto	Excel only	One of auto
Start Row	number (min 1)	1	CSV always, Excel manual	First row to read (1-based).
End Row	number	0	CSV always, Excel manual	0 = all. If non-zero, must be ≥ startRow.
Max Rows	number	0	Always	0 = unlimited. Applied after filters.

Notes:

• Range Mode auto: detects data region automatically (Excel). Only maxRows applies.
• Range Mode manual: enables startRow, endRow, and column ranges (Excel).
• Range Mode headerSearch: header row found by text search; see Headers.

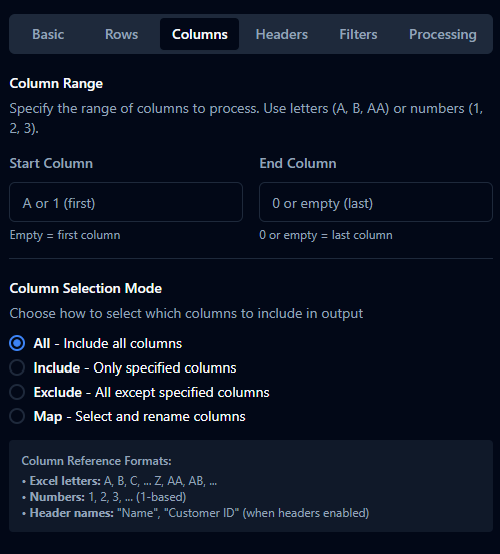

Columns

Column Range (CSV and Excel manual mode)

Field	Type	Default	Description
Start Column	string	""	A/1/AA or header name; empty = first column.
End Column	string	""	A/1/AA/header name; 0 or empty = last column.

Column Selection Mode

Field	Type	Default	Description
Column Mode	enum	all	One of all
Columns	array	[]	Used when columnMode !== 'all'. Each: { column: string; rename?: string }.

• Include: only listed columns.
• Exclude: all except listed.
• Map: select and optionally rename.

Headers

Field	Type	Default	Visible When	Description
Has Headers	boolean	true	Always	First row contains header names.
Include Headers	boolean	true	Has Headers	Include the header row in output metadata.
Normalize Headers	boolean	true	Has Headers	Trim whitespace; handle duplicates with suffix _2, _3, ...
Header Search Text	string	""	Has Headers	Optional for CSV/Excel auto/manual; required for Excel headerSearch.
Header Search Column	string	""	When search text set	Optional column limit (A/1/header).

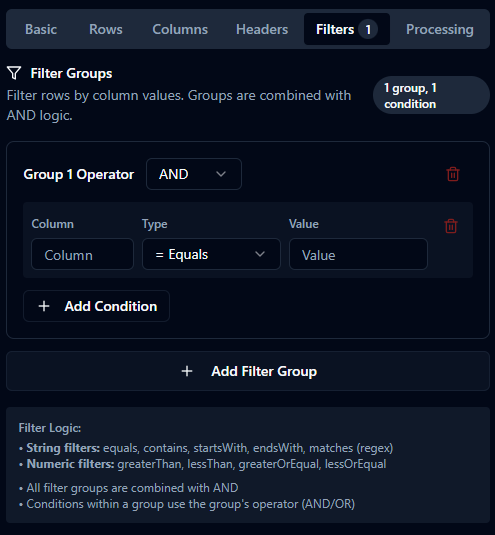

Filters

filterGroups: { op: 'AND'|'OR', conditions: FilterCondition[] }[]

FilterCondition: { column: string, type: FilterType, value: string }

• String: equals|contains|startsWith|endsWith|matches
• Numeric: greaterThan|lessThan|greaterOrEqual|lessOrEqual

Notes:

• All groups combine with AND.
• Column names are case-insensitive.
• Missing columns treated as empty strings.
• matches uses regex; invalid patterns rejected.
• Numeric types require numeric value (commas allowed; stripped).

Processing

Field	Type	Default	Visible When	Description
Trim Whitespace	boolean	true	Always	Trim surrounding whitespace per value.
Skip Empty Rows	boolean	true	Always	Skip rows with no meaningful content.
Preserve Types	boolean	true	Excel only	Keep numbers/booleans typed; dates as ISO strings.

Settings (Defaults)

Field	Type	Default	Description
Retry on Fail	boolean	false	Retry on transient errors.
On Error	enum	stopPipeline	One of stopPipeline

Documentation (Defaults)

Field	Type	Default	Description
Notes	string	""	Internal notes.
Display Note in Pipeline	boolean	false	Show notes on the canvas.

---

Output Format

Example output:

{
  "success": true,
  "rows": [
    { "Name": "John", "Age": 30, "Status": "Active" },
    { "Name": "Jane", "Age": 25, "Status": "Active" }
  ],
  "metadata": {
    "totalRows": 100,
    "filteredRows": 2,
    "returnedRows": 2,
    "headers": ["Name", "Age", "Status"],
    "format": "csv",
    "sheetName": "Sheet1"
  }
}

Error Packet

{
  "success": false,
  "error": "Sheet 'Data' not found in workbook",
  "errorType": "SheetNotFound"
}

Common errors: Invalid format; missing file data; invalid base64; invalid file; sheet not found; invalid column reference; header not found; invalid filter.

---

Validation Rules

• label: required (non-empty)
• fileFormat: must be CSV|Excel
• inputField: required (non-empty)
• CSV: delimiter required (exactly 1 char)
• Excel: rangeMode in auto|manual|headerSearch
• Excel header search: headerSearchText required when rangeMode==='headerSearch'
• startRow: ≥ 1 when provided; endRow: 0 or ≥ startRow; maxRows: ≥ 0
• columnMode: one of all|include|exclude|map; columns required when mode ≠ all
• filterGroups: each group has op in AND|OR and at least one condition; types valid; regex validated; numeric values parseable

---

Using with Local File "Fetch"

This node consumes file content produced earlier in the pipeline.

1. Local File connection → Function: Fetch Local File
2. Connect the function node’s result output to the File Extractor’s defaultIn input.
3. Ensure inputField targets the file content. Default data.data matches common File Fetch output.

Examples

• CSV: inputField: 'data.data', fileFormat: 'CSV', delimiter: ',', hasHeaders: true, columnMode: 'include', columns: [{ column: 'Date' }, { column: 'Total' }]
• Excel: inputField: 'data.data', fileFormat: 'Excel', sheetName: 'Summary', rangeMode: 'headerSearch', headerSearchText: 'Customer ID', columnMode: 'map', columns: [{ column: 'A', rename: 'id' }, { column: 'CustomerName', rename: 'name' }]

---

Common Use Cases

• Simple CSV import with headers (all defaults)
• Excel sheet extraction with mapped columns (use Map mode)
• Filtered data with row limit (combine filters + maxRows)
• Excel with variable header position (use Header Search)
• Skipping metadata rows (set Start Row)

---

Tips & Troubleshooting

• Use Header Search for variable report layouts.
• Enable Trim Whitespace to avoid subtle mismatches.
• Start with small maxRows during testing.
• Use Column Mapping to standardize names.
• Enable Skip Empty Rows to clean output.
• Preserve Types (Excel) to maintain numeric/boolean fidelity.
• Test regex patterns before production.

---

Version History

Version 1.0 - Initial unified node release

• CSV and Excel file support
• Advanced filtering
• Column selection and mapping
• Header search capability
• Excel range modes (auto/manual/headerSearch)

---
