Azure Blob Storage Integration Guide

Use MaestroHub's Azure Blob Storage connector to manage blobs and containers in your Azure Storage accounts. This guide covers connection setup, function authoring, and pipeline integration.

Overview

The Azure Blob Storage connector provides:

• Three authentication methods — Shared Key, Connection String, and OAuth2 (Service Principal)
• Full blob lifecycle — read, write, delete, and list blobs with support for Block, Append, and Page blob types
• Container management — create, delete, inspect, and list containers
• Reusable functions with template parameters for dynamic container names, blob paths, and content
• Secure credential handling with masked edits and encrypted storage

Connection Configuration

Creating an Azure Blob Storage Connection

From Connections → New Connection → Azure Blob Storage, configure the fields below.

Azure Blob Storage Connection Creation Fields

1. Profile Information

Field	Default	Description
Profile Name	-	A descriptive name for this connection profile (required, max 100 characters)
Description	-	Optional description for this Azure Blob Storage connection

2. Authentication

Select one of the three supported authentication methods.

Shared Key

Field	Default	Description
Account Name	-	Azure Storage account name (3–24 chars, lowercase alphanumeric) — required
Account Key	-	Storage account access key. Masked on edit; leave empty to keep stored value — required

Finding Shared Key Credentials

In the Azure Portal, navigate to your Storage Account → Access keys (under Security + networking). Copy the Storage account name and one of the Key values.

Connection String

Field	Default	Description
Connection String	-	Full Azure Storage connection string (e.g., DefaultEndpointsProtocol=https;AccountName=...;AccountKey=...). Masked on edit; leave empty to keep stored value — required

Finding the Connection String

In the Azure Portal, navigate to your Storage Account → Access keys (under Security + networking). Copy the Connection string value under either key1 or key2.

OAuth2 (Service Principal)

Field	Default	Description
Account Name	-	Azure Storage account name (3–24 chars, lowercase alphanumeric) — required
Tenant ID	-	Azure AD Directory (tenant) ID from your app registration — required
Client ID	-	Application (client) ID from your app registration — required
Client Secret	-	Client secret value from Azure AD. Masked on edit; leave empty to keep stored value — required

To obtain the Tenant ID, Client ID, and Client Secret values, you need to register an application in Azure AD and assign it storage permissions. Follow the steps below.

Step 1: Register an Application in Azure AD

1. Open the Azure Portal App Registrations
2. Click + New registration
3. Enter an application name (e.g., MaestroHub Azure Blob Integration)
4. Under Supported account types, select:
   • Accounts in this organizational directory only (single tenant) — recommended for most organizations
   • OR Accounts in any organizational directory (multi-tenant) — if multiple tenants need access
5. Leave Redirect URI blank (not needed for service principal authentication)
6. Click Register

After registration, note the following values from the Overview page:

Value	Where to Find
Tenant ID	Overview → Directory (tenant) ID
Client ID	Overview → Application (client) ID

Step 2: Generate a Client Secret

1. In the app registration, navigate to Certificates & secrets in the left sidebar
2. Under Client secrets, click + New client secret
3. Enter a description (e.g., MaestroHub Blob Storage Secret)
4. Select an expiration period:
   • 6 months or 12 months (requires manual renewal)
   • 24 months (recommended for production stability)
   • Custom — set your own expiration date
5. Click Add
6. Important: Copy the Value immediately — you cannot view it again after leaving this page

Client Secret Expiry

When the client secret expires, the connection will stop working. Set a calendar reminder to rotate the secret before expiration and update it in MaestroHub.

Step 3: Assign Storage Permissions (IAM Role)

The service principal must have permission to access the Azure Storage account:

1. Navigate to your Storage Account in the Azure Portal
2. In the left sidebar, click Access Control (IAM)
3. Click + Add → Add role assignment
4. In the Role tab, search for and select one of the following roles:

Role	Permissions	Recommended For
Storage Blob Data Contributor	Read, write, and delete blobs and containers	Most use cases — full blob and container management
Storage Blob Data Reader	Read-only access to blobs and containers	Read-only pipelines that only need to fetch data
Storage Blob Data Owner	Full access including managing POSIX permissions	Advanced scenarios requiring ownership and ACL management

5. Click Next, then in the Members tab:
   • Select User, group, or service principal
   • Click + Select members
   • Search for your app registration name (e.g., MaestroHub Azure Blob Integration)
   • Select it and click Select
6. Click Review + assign twice to confirm

Role Propagation

Azure role assignments may take up to 5 minutes to propagate. If the connection test fails immediately after assigning a role, wait a few minutes and retry.

Step 4: Summary — Values for MaestroHub

Before filling in the OAuth2 fields above, verify you have these values:

Value	Where to Find
Account Name	Storage Account → Overview → Storage account name
Tenant ID	App Registration → Overview → Directory (tenant) ID
Client ID	App Registration → Overview → Application (client) ID
Client Secret	App Registration → Certificates & secrets → Client secret value (copied in Step 2)

3. Advanced

Field	Default	Description
Connection Timeout (seconds)	30	Timeout for Azure Blob Storage operations (5–300) — required
Max File Size (MB)	10	Maximum file size in MB that can be read or written (1–25). Individual functions can override this value

4. Connection Labels

Field	Default	Description
Labels	-	Key‑value pairs to categorize and organize this connection (max 10 labels)

Example Labels

• environment: production
• team: data-platform
• storage: azure-blob
• region: westeurope

Notes

• Account Name validation: Must be 3–24 characters, lowercase letters and numbers only.
• Security: Credentials are encrypted and stored securely. They are never logged or displayed in plain text. On edit, leave secret fields empty to keep stored values.

Function Builder

Creating Azure Blob Storage Functions

After saving the connection:

1. Go to Functions → New Function
2. Choose the desired function type from Blob Operations or Container Operations
3. Select the Azure Blob Storage connection profile
4. Configure the operation-specific fields

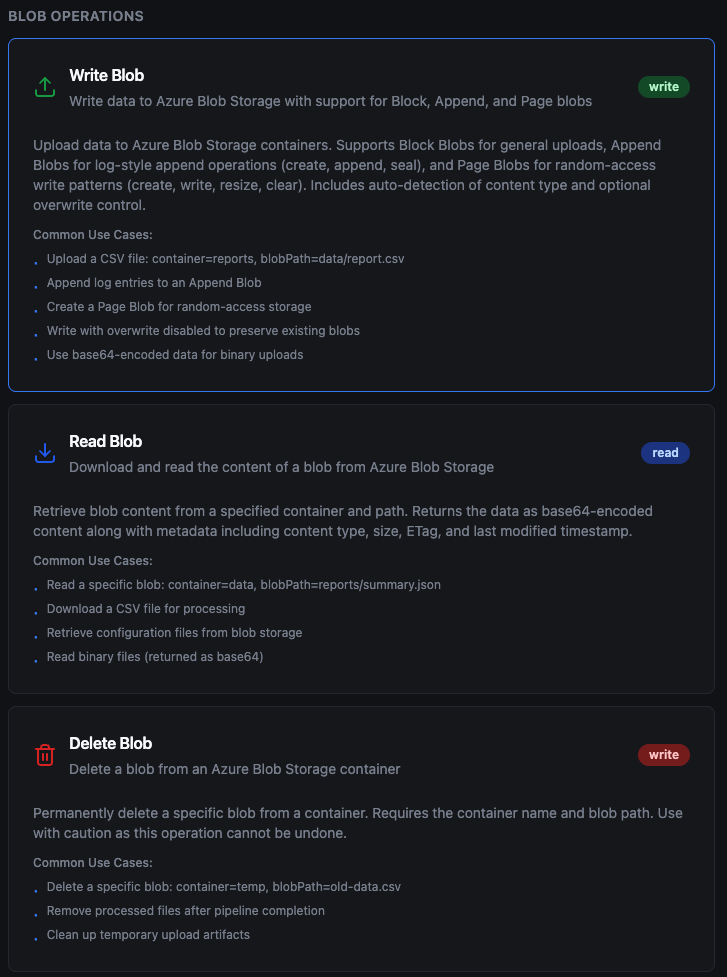

Function type selection

Function type selection

Function type selection

Blob Operations

Write Blob

Purpose: Upload data to Azure Blob Storage with support for Block, Append, and Page blob types.

The write behavior varies depending on the selected Blob Type:

Blob Type	Behavior	Best For
BlockBlob	Always creates a new blob or overwrites the existing one entirely	General file uploads, documents, images, data exports
AppendBlob	Auto-creates the blob if it doesn't exist; if it exists, appends data to the end	Log files, audit trails, streaming telemetry data
PageBlob	Auto-creates the blob if it doesn't exist; writes data at the specified offset (default: 0)	Random-access patterns, VHDs (data and offset must be 512-byte aligned)

BlockBlob vs AppendBlob

• BlockBlob replaces the entire blob content on every write — there is no append or partial update.
• AppendBlob preserves existing content and adds new data at the end, making it ideal for continuous logging without re-uploading the full file.
• PageBlob requires both data size and offset to be multiples of 512 bytes. The connector validates this before executing.

Configuration Tab

Field	Type	Required	Default	Description
Container Name	String	Yes	-	Name of the target container
Blob Path	String	Yes	-	Path/name of the blob within the container. Supports templates e.g., data/output_((date)).csv
Data	String	Yes	-	Content to write. Supports plain text and base64‑encoded data

Advanced Tab

Field	Type	Required	Default	Description
Timeout (s)	Number	No	60	Operation timeout (1–600)
Max File Size (MB)	Number	No	10	Maximum data size in MB for this write operation (1–25). Overrides the connection-level setting
Blob Type	Enum	No	BlockBlob	BlockBlob, AppendBlob, or PageBlob
Offset (bytes)	Number	No	0	Byte offset to write at for PageBlob (must be 512-byte aligned). Ignored for BlockBlob and AppendBlob
Access Tier	Enum	No	Default	Hot, Cool, Cold, or Archive for cost optimization
Content Type	String	No	auto‑detect	MIME type (auto‑detected from blob path if not specified)
Cache Control	String	No	-	Value for HTTP Cache-Control header
Content Encoding	String	No	-	Content encoding (e.g., gzip)
Content Language	String	No	-	Content language tag
Content MD5	String	No	-	Base64‑encoded MD5 hash for integrity verification
Content CRC64	String	No	-	Base64‑encoded CRC64 hash for integrity verification
Encryption Scope	String	No	-	Azure encryption scope name
Expiry Option	Enum	No	No expiry	RelativeToCreation, RelativeToNow, Absolute, or NeverExpire
Expiry Time	String	No	-	ISO 8601 datetime or milliseconds (depends on Expiry Option)
Immutability Policy Date	String	No	-	ISO 8601 datetime until which the blob is immutable
Immutability Policy Mode	Enum	No	No policy	Unlocked or Locked
Lease ID	String	No	-	Required if the blob has an active lease
Metadata	String	No	-	Custom key‑value metadata pairs (comma‑separated)
Tags	String	No	-	Blob index tags as key=value pairs (comma‑separated)

Use Cases: Upload pipeline results, append log entries, store binary artifacts, write IoT telemetry data

Read Blob

Purpose: Download and read the content of a blob from Azure Blob Storage.

Configuration Tab

Field	Type	Required	Default	Description
Container Name	String	Yes	-	Name of the container
Blob Path	String	Yes	-	Path/name of the blob to read

Advanced Tab

Field	Type	Required	Default	Description
Timeout (s)	Number	No	60	Operation timeout (1–600)
Max File Size (MB)	Number	No	10	Maximum blob size in MB allowed for download (1–25). Overrides the connection-level setting. The connector checks the blob size before downloading; if it exceeds this limit, the operation fails without transferring the data
Lease ID	String	No	-	Required if the blob has an active lease

Use Cases: Retrieve configuration files, download reports for processing, read CSV/JSON data into pipelines

Delete Blob

Purpose: Permanently delete a specific blob from a container.

Configuration Tab

Field	Type	Required	Default	Description
Container Name	String	Yes	-	Name of the container
Blob Path	String	Yes	-	Path/name of the blob to delete

Advanced Tab

Field	Type	Required	Default	Description
Timeout (s)	Number	No	60	Operation timeout (1–600)
Lease ID	String	No	-	Required if the blob has an active lease

Destructive Operation

Blob deletion is permanent and cannot be undone. Ensure important data is backed up before deleting.

Use Cases: Remove processed files, clean up temporary artifacts, implement retention policies

List Blobs

Purpose: Enumerate blobs in a container with prefix filtering and pagination.

Configuration Tab

Field	Type	Required	Default	Description
Container Name	String	Yes	-	Name of the container
Prefix	String	No	-	Filter blobs by name prefix (e.g., logs/2024-01)
Max Results	Number	No	100	Maximum blobs to return per page (1–5000)

Advanced Tab

Field	Type	Required	Default	Description
Timeout (s)	Number	No	60	Operation timeout (1–600)

Use Cases: Inventory blob contents, discover files for batch processing, audit storage usage

Container Operations

Create Container

Purpose: Create a new container in the Azure Storage account.

Configuration Tab

Field	Type	Required	Default	Description
Container Name	String	Yes	-	Name of the container to create (lowercase, 3–63 chars, letters, numbers, and hyphens)

Advanced Tab

Field	Type	Required	Default	Description
Timeout (s)	Number	No	60	Operation timeout (1–600)
Access Level	Enum	No	Private	Private (no anonymous access), Blob (public read for blobs), or Container (public read for container and blobs)

Use Cases: Provision storage for new projects, set up data lake containers, create temporary upload areas

Delete Container

Purpose: Permanently delete a container and all its blobs.

Configuration Tab

Field	Type	Required	Default	Description
Container Name	String	Yes	-	Name of the container to delete

Advanced Tab

Field	Type	Required	Default	Description
Timeout (s)	Number	No	60	Operation timeout (1–600)

Destructive Operation

Container deletion removes the container and all blobs within it. This cannot be undone.

Use Cases: Remove deprecated containers, clean up after integration testing, implement lifecycle management

Get Container

Purpose: Retrieve metadata and properties of a container.

Configuration Tab

Field	Type	Required	Default	Description
Container Name	String	Yes	-	Name of the container to inspect

Advanced Tab

Field	Type	Required	Default	Description
Timeout (s)	Number	No	60	Operation timeout (1–600)

Use Cases: Check container existence before operations, retrieve custom metadata, verify lease status

List Containers

Purpose: Enumerate all containers in the storage account.

Configuration Tab

Field	Type	Required	Default	Description
Prefix	String	No	-	Filter containers by name prefix (e.g., prod-)
Max Results	Number	No	100	Maximum containers to return per page (1–5000)

Advanced Tab

Field	Type	Required	Default	Description
Timeout (s)	Number	No	60	Operation timeout (1–600)

Use Cases: Audit storage account inventory, discover containers by naming convention, monitor container count

Using Parameters

Use ((parameterName)) in container names, blob paths, or data content to expose parameters for validation and runtime binding.

Configuration	Description	Example
Type	Validate incoming values	string, number, boolean, datetime, json, buffer
Required	Enforce presence	Required / Optional
Default Value	Provide fallbacks	'reports', '{}', NOW()
Description	Document intent	"Container name for output", "Blob path with date suffix"

Pipeline Integration

Use the Azure Blob Storage functions you configure here as nodes inside the Pipeline Designer. Drag in the blob or container operation node, bind parameters to upstream outputs or constants, and configure retries or error branches.

For broader orchestration patterns that mix Azure Blob Storage with SQL, REST, MQTT, or other connector steps, see the Connector Nodes page.

Common Use Cases

Data Lake Ingestion

Ingest CSV, JSON, or Parquet files from Azure Blob Storage into analytical stores or trigger downstream normalization pipelines.

IoT Telemetry Archival

Use Append Blobs to continuously append IoT sensor data and telemetry logs, then seal blobs at the end of each collection period.

Backup and Export

Store pipeline outputs, model artifacts, and generated reports in Azure Blob Storage with access tier management for cost optimization.
