MQTT Integration Guide

Use MaestroHub's MQTT connector to exchange real-time messages with PLC gateways, IoT devices, and event-driven services. This guide explains how to configure connections, design publish/subscribe functions, and orchestrate pipelines.

Overview

The MQTT connector delivers:

• MQTT v3.1, v3.1.1 and v5.0 support with QoS 0/1/2 and retained message control
• Publish and subscribe functions for bidirectional communication
• Security options including TLS, mutual authentication, and username/password logins
• Payload templating for JSON, binary buffers, or delimited text

Connection Configuration

Creating an MQTT Connection

Navigate to Connections → New Connection → MQTT and fill in these details:

MQTT Connection Creation Fields

1. Profile Information

Field	Default	Description
Profile Name	-	A descriptive name for this connection profile (required, max 100 characters)
Description	-	Optional description for this MQTT connection

2. MQTT Broker Configuration

Field	Default	Description
Broker URL	-	MQTT broker endpoint (e.g., mqtt://broker.example.com:1883) – required, must be a valid URL
MQTT Version	3.1.1	MQTT protocol version (3.1 / 3.1.1 / 5.0) – required
Client ID	-	Unique client identifier (max 65535 characters). Server generates if not specified
Keep Alive (sec)	60	Keep alive interval in seconds (0-65535)
Connect Timeout (sec)	30	Connection timeout in seconds (1-300)

Protocol Options

• 3.1: Legacy MQTT version
• 3.1.1: Recommended – most widely supported
• 5.0: Latest – enhanced features and performance

3. Session Management

3a. For MQTT v3.1 and v3.1.1

Field	Default	Description
Clean Session	true	Start with a clean session on connect

3b. For MQTT v5.0

Field	Default	Description
Clean Start	-	Start with a clean session on initial connection

4. Basic Authentication

Field	Default	Description
Username	-	MQTT broker username (optional)
Password	-	MQTT broker password (optional, but username is required if password is provided)

5. TLS/SSL Settings

5a. TLS Configuration

Field	Default	Description
Enable TLS/SSL	false	Use encrypted connection to the MQTT broker
Skip Certificate Verification	false	Skip SSL certificate verification (not recommended for production)

5b. Certificate Verification Settings

(Only displayed when TLS is enabled and Certificate Verification is NOT skipped)

Field	Default	Description
Server Name (SNI)	-	Server name for SNI verification (e.g., broker.example.com)
TLS Version	-	Minimum TLS version (1.0 / 1.1 / 1.2 / 1.3)

5c. Client Certificates

(Only displayed when TLS is enabled and Certificate Verification is NOT skipped)

Field	Default	Description
Client Certificate	-	Client certificate for mutual TLS authentication (PEM format)
Private Key	-	Private key for client certificate (PEM format)
CA Certificate	-	CA certificate for server verification (PEM format)

6. Last Will and Testament (LWT)

Field	Default	Description
Will Topic	-	Topic to publish the will message (e.g., clients/disconnected)
Will QoS	0	Quality of Service for will message (0 / 1 / 2)
Will Message	-	Message to publish on unexpected disconnect
Retain Will Message	false	Broker retains the last will message

QoS Levels

• QoS 0: At most once – no confirmation
• QoS 1: At least once – confirmed delivery
• QoS 2: Exactly once – guaranteed single delivery

7. MQTT v3.1.1 Advanced Options

(Only displayed when MQTT Version = 3.1 or 3.1.1)

7a. Connection Timing

Field	Default	Description
Ping Timeout (seconds)	-	Timeout for ping requests (1-300, leave empty for library default)
Write Timeout (seconds)	-	Timeout for write operations (1-300, leave empty for library default)
Max Reconnect Interval (seconds)	-	Maximum interval between reconnect attempts (1-3600, leave empty for library default)

7b. Connection Behavior

Field	Default	Description
Auto Reconnect	false	Automatically reconnect when connection is lost
Connect Retry	false	Retry connection attempts on failure
Resume Subscriptions	false	Automatically resume subscriptions on reconnect
Order Matters	false	Preserve message ordering
Disable Auto ACK	false	Disable automatic message acknowledgment

7c. Message Handling

Field	Default	Description
Connect Retry Interval (seconds)	-	Interval between connection retry attempts (1-300, leave empty for library default)
Max Resume Pub In Flight	-	Maximum publish messages in flight during resume (0-65535, leave empty for library default)

8. MQTT v5.0 Enhanced Properties

(Only displayed when MQTT Version = 5.0)

8a. Session & Flow Control

Field	Default	Description
Session Expiry Interval (seconds)	-	How long session state persists after disconnect (0-4294967295, 0 = immediately expire)
Receive Maximum	-	Maximum number of QoS 1 and QoS 2 messages that can be outstanding (1-65535, 65535 = unlimited)
Maximum Packet Size (bytes)	-	Maximum size of MQTT packets that can be received (1-268435455, 268435455 = 256MB)

8b. Topic Aliases & Information

Field	Default	Description
Topic Alias Maximum	-	Maximum topic aliases for reducing topic name overhead (0-65535, 0 = no aliases)
Request Response Information	false	Request enhanced response information from broker
Request Problem Information	false	Request detailed error information from broker
Packet Timeout (seconds)	-	Timeout for packet operations (1-300, leave empty for library default)

8c. Manual Acknowledgment

Field	Default	Description
Enable Manual Acknowledgment	false	Manually control message acknowledgments
Send ACKs Interval (ms)	-	Interval between sending acknowledgments (1-10000 ms, leave empty for library default)

8d. User Properties

Field	Default	Description
User Properties	-	Custom key-value pairs for application-specific metadata (JSON format)

Example User Properties

• {"correlationId":"12345","origin":"edge-gateway"} – Identify related transactions
• {"tenant":"alpha","priority":"high"} – Route messages by tenant or priority

9. Connection Labels

Field	Default	Description
Labels	-	Key-value pairs to categorize and organize this MQTT connection (max 10 labels)

Example Labels

• environment: production – Deployment environment
• team: iot – Responsible team
• protocol: mqtt – Connection protocol
• region: us-east-1 – Geographical region

Notes

• MQTT Version compatibility: Sections 7 (v3.1.1 Advanced Options) and 8 (v5.0 Enhanced Properties) appear based on the selected MQTT version.
• Broker URL protocol detection automatically enables TLS when using mqtts://, ssl://, or wss:// schemes.
• Authentication requires a username when a password is provided.
• TLS certificate fields are available only when TLS is enabled and certificate verification is not skipped.
• Clean Session and Clean Start represent the same behavior in v3.1.1 and v5.0, respectively.
• Fields marked as "leave empty for library default" fall back to the MQTT library defaults.
• Timeout values are in seconds unless noted (Send ACKs Interval uses milliseconds).

Function Builder

Creating MQTT Functions

After the connection is configured:

1. Go to Functions → New Function
2. Choose MQTT Publish or MQTT Subscribe as the function type
3. Select the MQTT connection profile
4. Define topic filters, QoS, retained settings, and payload templates

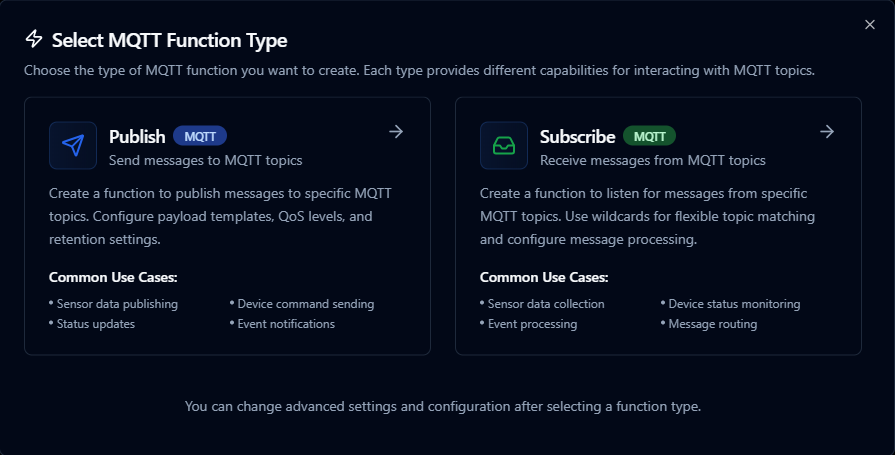

Design MQTT publish or subscribe functions with topic templates and payload mappings

Publish Function

Purpose: Send messages to MQTT topics. Create a function to publish messages to specific MQTT topics with configurable payload templates, QoS levels, and retention settings.

Configuration Fields

Field	Type	Required	Default	Description
Topic Template	String	Yes	-	MQTT topic to publish to (supports parameters). Example: sensors/((deviceId))/temperature
Payload Template	String	Yes	-	Message payload template (supports parameters). Example: {"temperature": ((value)), "timestamp": "((now))"}
QoS Level	Number	No	0	Quality of Service level for published messages (0, 1, or 2)
Retained	Boolean	No	false	Whether messages should be retained by the broker
Wait for Acknowledgment (v3.1.1)	Boolean	No	true	Wait for publish acknowledgment from broker (MQTT v3.1.1)
Duplicate Detection (v3.1.1)	Boolean	No	false	Enable duplicate message detection (MQTT v3.1.1)
Content Type (v5.0)	String	No	-	MIME type of the message payload (MQTT v5.0). Example: application/json
Message Expiry (v5.0)	Number	No	-	Message expiry interval in seconds (1-4294967295) (MQTT v5.0)
Payload Format (v5.0)	Number	No	-	Payload format indicator: 0=bytes, 1=UTF-8 (MQTT v5.0)
Response Topic (v5.0)	String	No	-	Topic for response messages (MQTT v5.0)
Correlation Data (v5.0)	String	No	-	Request correlation identifier (MQTT v5.0)
Topic Alias (v5.0)	Number	No	-	Topic alias for compression (1-65535) (MQTT v5.0)
User Properties (v5.0)	Object	No	-	Custom key-value properties for the message (MQTT v5.0)

Use Cases: Sensor data publishing, device command sending, status updates, event notifications

Subscribe Function

Purpose: Receive messages from MQTT topics. Create a function to listen for messages from specific MQTT topics with wildcard support for flexible topic matching.

Configuration Fields

Field	Type	Required	Default	Description
Topic Filters	Array	Yes	["sensors/+/data"]	MQTT topic patterns to subscribe to (supports wildcards + and #). Example: ["sensors/+/temperature", "devices/+/status"]
Single Topic Filter	String	No	-	Single MQTT topic pattern (alternative to topics array)
QoS Level	Number	No	0	Quality of Service level for subscription (0, 1, or 2)
No Local (v5.0)	Boolean	No	false	Don't receive messages published by this client (MQTT v5.0)
Retain as Published (v5.0)	Boolean	No	false	Preserve the original retain flag of messages (MQTT v5.0)
Retain Handling (v5.0)	Number	No	0	How to handle retained messages: 0=send, 1=send if new, 2=don't send (MQTT v5.0)
Subscription Identifier (v5.0)	Number	No	-	Unique identifier for this subscription (1-268435455) (MQTT v5.0)
Shared Subscription Group (v5.0)	String	No	-	Name for shared subscription group (generates $share/group/topic syntax) (MQTT v5.0)
User Properties (v5.0)	Object	No	-	Custom key-value properties for the subscription (MQTT v5.0)

Use Cases: Sensor data collection, device status monitoring, event processing, message routing

Using Parameters

MQTT functions support parameterized topics and payload values via the ((parameterName)) syntax.

Configuration	Description	Example
Type	Validate incoming pipeline data	string, number, boolean, datetime, json, buffer
Required	Force topic fragments or payload fields	Required / Optional
Default Value	Provide fallback values	'line-01', 0, '{}'
Description	Document intent for other authors	"Line identifier appended to the topic path"

Configure parameter validation, defaults, and descriptions for MQTT topics and payloads

Pipeline Integration

Use the MQTT connection functions you create here as nodes inside the Pipeline Designer to synchronize production data with the rest of your stack. Drag in the publish or subscribe node, bind its parameters to upstream node outputs or constants, and shape event-driven flows without leaving the designer.

If you are planning more complex orchestration, review the Connector Nodes page for patterns on where MQTT nodes fit best within broader orchestration strategies.

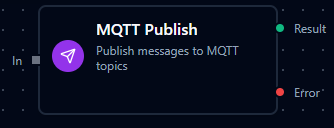

MQTT node with connection, function, and parameter mappings

Common Use Cases

Telemetry Distribution

Publish normalized sensor data to MQTT topics consumed by SCADA dashboards, analytics platforms, or digital twins.

Command Handling

Subscribe to command topics from enterprise systems and invoke PLC writes, REST calls, or script nodes in response.

Edge-to-Cloud Bridging

Bridge legacy PLC data into cloud IoT platforms by combining OPC UA/Modbus reads with MQTT publish steps.
