Local File Integration Guide

Use the Local File connector to work with files on a local filesystem within a configured base directory. Create reusable functions to fetch files (read) or write files with parameter support, timeouts, and size limits.

Overview

The Local File connector provides:

• Scoped access: All operations are restricted to a configured absolute base path
• Fetch and Write functions: Build reusable read/write functions with parameters
• Safety limits: Discovery limit, maximum file size, and symlink policy
• Testability: Test connection and test functions before using them in pipelines

---

Connection Configuration

Creating a Local File Connection

From Connections → New Connection → Local File, configure the profile using the references below.

1. Profile Information

Field	Default	Description
Profile Name	-	A descriptive name for this connection profile (required, 1–100 characters, unique)
Description	-	Optional free text description
Labels	-	Optional key-value labels (e.g., env=prod, type=csv)

2. File System Configuration (Connection tab)

Field	Default	Description
Base Path (basePath)	-	Absolute path to the root directory for all operations (required). Windows: starts with C:\\/D:\\… (^[A-Za-z]:[\\\/]). Linux/Unix: starts with /. Relative paths (e.g., ./data, ../files) are not allowed.

Path Sensitivity

• On Linux/Unix, paths are case-sensitive.
• All file operations are constrained under the configured Base Path.

3. Advanced Settings (Advanced tab)

3a. File Discovery Settings

Field	Default	Range	Description
Discovery Limit (discoveryLimit)	2000	1–100000	Max files scanned during discovery. UI shows a performance warning when > 10000.
Max File Size (MB) (maxFileSizeMB)	5	1–10	Maximum allowed file size for operations in MB.

3b. Security Settings

Field	Default	Description
Allow Symlinks (allowSymlinks)	false	Follow symlinks during discovery. Not recommended—enabling may allow access outside the base path.

Security Consideration

Enabling symlink following can expose files outside the base path. Keep disabled unless absolutely necessary and validated.

4. Other Defaults

Field	Default
Config Version	1.0.0

Test Connection

Use the Test Connection button (visible outside the Functions tab) to validate connectivity and configuration. The UI validates the form and sends an internal request similar to:

On success, a confirmation message and optional duration are displayed.

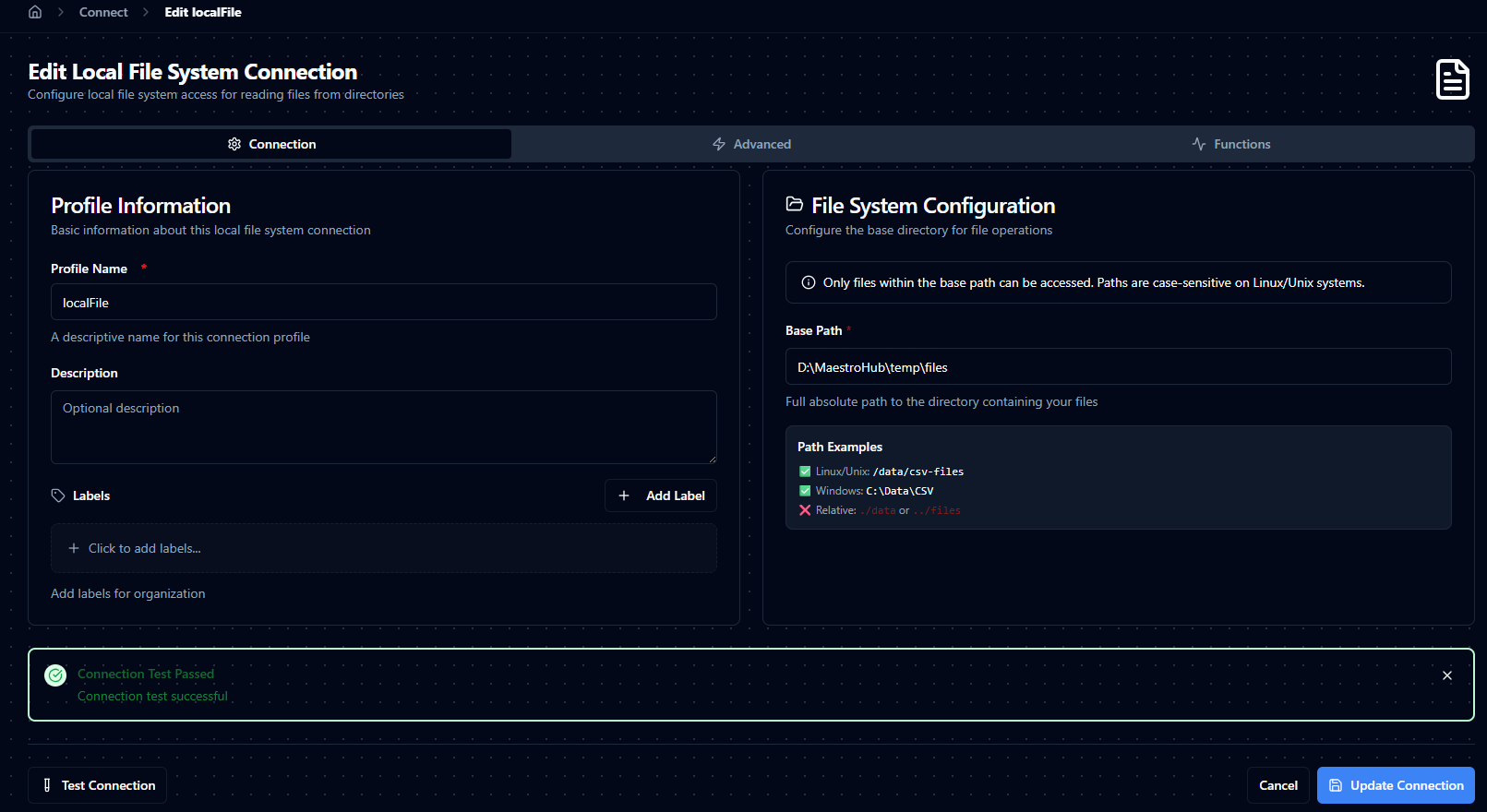

Connection configuration and Test Connection feedback

---

Function Builder

Creating Local File Functions

After saving the connection profile:

1. Go to Functions → New Function
2. Choose Fetch Local File or Write to Local File
3. Select the Local File connection profile
4. Fill out the function configuration (and Write Options if applicable)

Functions support parameter placeholders using ((parameterName)). The system auto-detects parameters from templated fields and lets you define types, required flags, defaults, and descriptions in the Function Parameters section.

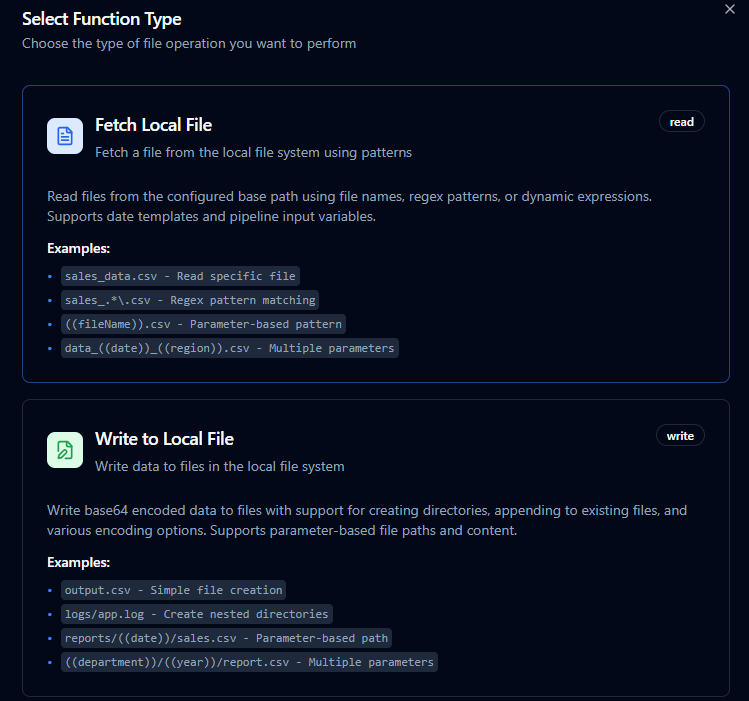

Select Fetch or Write function types for the Local File connector

---

Fetch Local File

• UI Name: Fetch Local File
• Category: read
• Description: Read files under the base path via exact names, regex patterns, or parameterized expressions.

Examples:

• sales_data.csv — exact file
• sales_.*\.csv — regex
• ((fileName)).csv — parameter-based
• data_((date))_((region)).csv — multiple parameters

Configuration (Configuration tab)

Field	Type	Required	Default	Range	Description
File Name (fileName)	String	Yes	-	-	File name, regex pattern, or expression; supports parameters.
Timeout (ms) (timeoutMs)	Number	No	30000 (used if unset)	100–300000	Total time allowed for discovery and reading.
Max File Size (MB) (maxFileSizeMB)	Number	No	inherit	1–10	Overrides connection maxFileSizeMB. Leave blank to inherit.
Discovery Limit (discoveryLimit)	Number	No	inherit	1–100000	Overrides connection discoveryLimit. Leave blank to inherit.

Pattern Tips

Use exact names for performance. Prefer specific regexes or parameterized expressions when scanning large directories.

Advanced (Advanced tab)

• timeoutMs: 100–300000 (ms), default 30000 if unset
• maxFileSizeMB: 1–10 (MB)
• discoveryLimit: 1–100000
• Blank fields inherit from the connection profile.

Testing

• If parameters are detected in fileName, the Test dialog prompts for values.
• If no parameters exist, test runs immediately.
• Result shows success/failure, message, metadata (file content is suppressed), duration, and timestamp when available.

---

Write to Local File

• UI Name: Write to Local File
• Category: write
• Description: Write text or base64-encoded content with directory creation, append/overwrite controls, and encoding options.

Examples:

• output.csv — simple file
• logs/app.log — nested paths
• reports/((date))/sales.csv — parameterized paths
• ((department))/((year))/report.csv — multiple parameters

Configuration (Configuration tab)

Field	Type	Required	Default	Range	Description
File Name (fileName)	String	Yes	-	-	Destination path relative to base path; supports parameters. A full absolute path preview is shown when base path is known.
Data (data)	String	Yes	-	-	Content to write. May be plain text or base64; can be parameterized.

Write Options (Write Options tab)

Field	Type	Required	Default	Description
Create File (createFile)	Boolean	No	true	Create parent directories and the file if missing.
Append to File (appendToFile)	Boolean	No	false	Append data instead of overwriting.
Append Newline (appendNewline)	Boolean	No	true	Shown when appendToFile = true. Prepend \n before appended data.
Overwrite Existing (overwriteExisting)	Boolean	No	false	Shown when createFile = true and appendToFile = false. Overwrite file if it exists.
Encoding (encoding)	Enum	No	utf-8	Encoding for text data: utf-8, utf-8-bom, utf-16le, utf-16be, binary, auto. Use binary/auto for non-text/base64.

Validation refinement: appendToFile and overwriteExisting cannot both be true at the same time.

Advanced (Advanced tab)

Field	Type	Required	Default	Range	Description
Timeout (ms) (timeoutMs)	Number	No	30000 (used if unset)	100–300000	Total time allowed for writing.
Max File Size (MB) (maxFileSizeMB)	Number	No	inherit	1–100	Maximum allowed size for this write. Leave blank to inherit the connection default.

Testing

• If parameters are detected in fileName or data, the Test dialog prompts for values.
• If none, test executes directly.
• Result shows success/failure, message, and metadata (content not displayed).

---

Using Parameters (Shared)

Parameters are detected from templated fields using the ((parameterName)) syntax and are validated at test/execute time.

Property	Description	Examples
Type	Enforces value types	int, float, bool, string, object, array
Required	Must be provided if true	Required / Optional
Default	Fallback value when not provided	0, "N/A", {}
Description	Guidance for callers	"Year for report folder", "Content JSON payload"

Test Dialog Behavior

• Create mode: tests the config without a saved function (config-only testing)
• Edit mode: tests the saved function with current form overrides
• If there are unsaved changes, the dialog warns that the test uses current form values

---

Defaults & Inheritance

• Connection defaults:
  • Config Version: 1.0.0
  • Discovery Limit: 2000
  • Max File Size: 5 MB
  • Allow Symlinks: false
• Function defaults:
  • Timeout: 30000 ms (if not set)
  • Fetch: maxFileSizeMB / discoveryLimit inherit from connection when blank
  • Write: createFile=true, appendToFile=false, appendNewline=true, overwriteExisting=false, encoding='utf-8', timeoutMs=30000

---

Practical Examples

Fetch: Simple exact file

• fileName: sales_data.csv
• timeoutMs: 30000

Fetch: Regex with parameter

• fileName: sales_((date)).*\.csv
• Parameters: date (string, e.g., 2024-08-31)

Write: Parameterized path and content

• fileName: reports/((year))/((region))/summary.csv
• data: ((content))
• createFile: true
• appendToFile: false
• overwriteExisting: true (ensure appendToFile is false)
• encoding: utf-8

---

Pipeline Integration

Use Local File functions as nodes in the Pipeline Designer. Bind fileName, data, and other parameters to upstream outputs or constants, set timeouts and size limits, and compose flows that combine file I/O with other connectors (REST, MQTT, PLCs) for end-to-end automation.

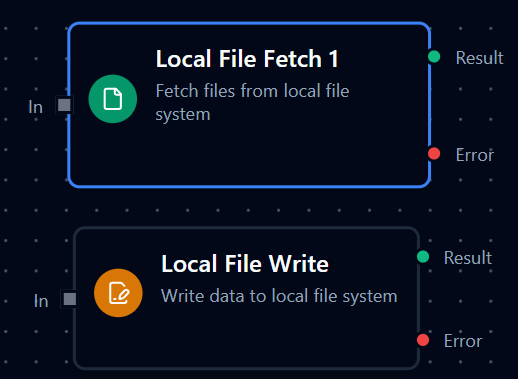

Local File Fetch node with connection and function bindings
