AWS Lambda Nodes

AWS Lambda nodes call serverless functions from inside a pipeline — run inline transforms and ML inference, fire async events to background workers, or list functions for discovery. All three node types route through your configured AWS Lambda connection.

Configuration Quick Reference

Field	What you choose	Details
Parameters	Connection, Function, Function Parameters, Timeout Override	Select the connection profile, function, configure function parameters with expression support, and optionally override timeout.
Settings	Description, Timeout (seconds), Retry on Timeout, Retry on Fail, On Error	Node description, maximum execution time, retry behavior on timeout or failure, and error handling strategy. All execution settings default to pipeline-level values.

---

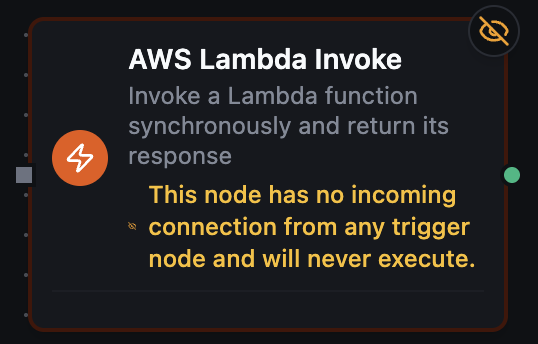

AWS Lambda Invoke Node

AWS Lambda Invoke Node

Invoke a Lambda function synchronously (InvocationType=RequestResponse) and return its response payload to the pipeline. Use this when downstream nodes depend on the function's result — transforms, enrichments, ML inference, or reference-data lookups.

Supported Function Types:

Function Name	Purpose	Common Use Cases
Invoke	Synchronously invoke a Lambda and return the decoded JSON payload	Inline transforms, ML inference, reference-data lookups, permission probes via Dry Run

How It Works

When the pipeline executes, the Invoke node:

1. Resolves the function name/ARN, qualifier, and JSON payload (templated values are evaluated against pipeline context).
2. Calls Lambda with InvocationType=RequestResponse (or DryRun when Dry Run is enabled).
3. Decodes the response payload as JSON and surfaces it in data.payload.
4. If the Lambda code throws, AWS returns HTTP 200 with a FunctionError — the node translates that to success: false so error branches fire as expected.
5. When Log Type = Tail, the last 4 KB of CloudWatch logs is included in metadata.logs.

For full parameter details, see the Invoke function documentation.

---

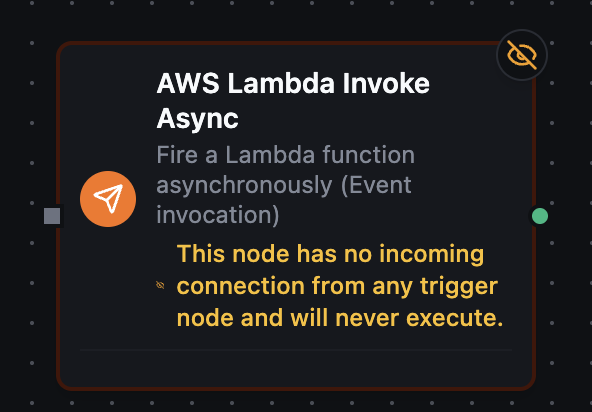

AWS Lambda Invoke Async Node

AWS Lambda Invoke Async Node

Fire a Lambda function asynchronously (InvocationType=Event). AWS queues the request and returns 202 Accepted immediately; the function executes in the background. Use this when the pipeline doesn't need to wait for the result — fan-out events, background processing, decoupled side-effects.

Supported Function Types:

Function Name	Purpose	Common Use Cases
Invoke Async	Fire-and-forget Lambda invocation that returns immediately on queue acknowledgment	Event fan-out, background jobs, slow side-effects decoupled from the pipeline path

How It Works

1. Resolves the function name/ARN, qualifier, and payload.
2. Calls Lambda with InvocationType=Event.
3. Returns success as soon as AWS acknowledges the queue (HTTP 202). The node's data contains only {statusCode: 202} — there is no payload.
4. The actual function execution (and any failures) are handled by AWS — check the function's CloudWatch logs and any configured DLQ / EventBridge destination for outcomes.

For full parameter details, see the Invoke Async function documentation.

Async failures don't surface in MaestroHub

Async invocations succeed as soon as AWS queues them. If the function later errors, AWS retries and routes failures to the configured async destination — MaestroHub never sees the result. Wire a DLQ or EventBridge target on the Lambda side if you need failure visibility.

---

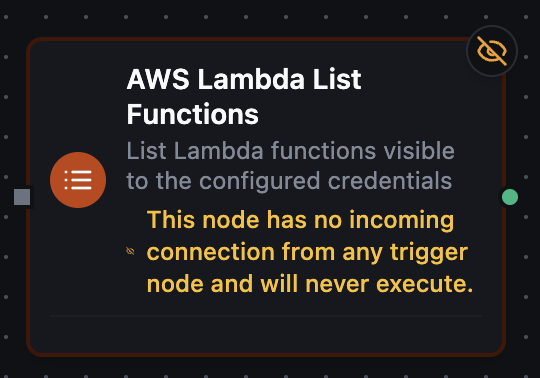

AWS Lambda List Functions Node

AWS Lambda List Functions Node

List the Lambda functions visible to the configured credentials. Useful for discovery pipelines, inventory audits, or feeding a downstream Smart Connector that fans out invocations across many functions.

Supported Function Types:

Function Name	Purpose	Common Use Cases
List Functions	Page through Lambda function metadata for the connection's region and account	Function discovery, inventory audits, dynamic fan-out into Smart Connector or For-Each

How It Works

1. Calls lambda:ListFunctions with the configured maxItems and optional marker.
2. Returns the page in data.functions[] (each entry has functionName, functionArn, runtime, role, handler, version, description, plus lastModified, timeout, and memorySize when available), along with count and nextMarker when more pages exist.
3. To paginate across all functions, feed data.nextMarker from one execution into the marker parameter of the next — typically with a For-Each Loop or a recursive Smart Connector pattern.

For full parameter details, see the List Functions function documentation.

---

Node Output Reference

All AWS Lambda nodes return the standard MaestroHub function-result envelope. The shape of data and metadata depends on the node type — see AWS Lambda Result Shape for the full reference, including how function-level errors are surfaced on the synchronous Invoke node.

Need to set up the connection first?

The AWS Lambda nodes require an existing AWS Lambda connection. See the AWS Lambda Integration Guide for connection setup, and the AWS Lambda IAM Setup guide for creating the access key the connection uses.
