Azure Blob Storage Nodes

Azure Blob Storage nodes enable pipelines to manage blobs and containers in Azure Storage accounts. Use these nodes to automate data ingestion, export, archival, and storage lifecycle operations. All eight node types connect through your configured Azure Blob Storage connections.

Configuration Quick Reference

Field	What you choose	Details
Parameters	Connection, Function, Function Parameters, Timeout Override	Select the connection profile, function, configure function parameters with expression support, and optionally override timeout.
Settings	Description, Timeout (seconds), Retry on Timeout, Retry on Fail, On Error	Node description, maximum execution time, retry behavior on timeout or failure, and error handling strategy. All execution settings default to pipeline-level values.

---

Blob Operations

Azure Blob Write Node

Azure Blob Write Node

Write data to Azure Blob Storage with support for Block, Append, and Page blob types.

Supported Function Types:

Function Name	Purpose	Common Use Cases
Write Blob	Upload data as Block, Append, or Page Blob	Data exports, log appending, binary artifact storage

Node Configuration

Parameter	Type	Required	Description
Connection	Selection	Yes	Azure Blob Storage connection profile to use
Function	Selection	Yes	Write function from the selected connection
Function Parameters	Dynamic	Varies	Auto-populated from the function schema. See your Azure Blob Storage connection functions for full parameter details.
Timeout Override	Number (seconds)	No	Override the default function timeout

All function parameters support expression syntax ({{ expression }}) for dynamic values from the pipeline context.

Input

The node receives the output of the previous node as input. Input data can be referenced in function parameter expressions using $input.

Output Structure

On success the node produces:

{
  "success": true,
  "functionId": "<function-id>",
  "data": {
    "containerName": "reports",
    "blobPath": "data/report.csv",
    "blobType": "BlockBlob",
    "bytesWritten": 2048,
    "contentType": "text/csv"
  },
  "durationMs": 245,
  "timestamp": "2026-03-12T10:30:00Z"
}

Field	Type	Description
containerName	string	Target container name
blobPath	string	Full blob path within the container
blobType	string	Blob type used (BlockBlob, AppendBlob, or PageBlob)
bytesWritten	number	Number of bytes written (BlockBlob and PageBlob)
bytesAppended	number	Number of bytes appended (AppendBlob only)
contentType	string	MIME content type of the written data (BlockBlob only)

---

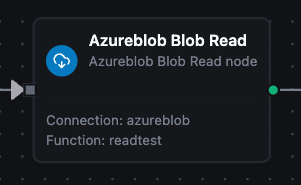

Azure Blob Read Node

Azure Blob Read Node

Download and read the content of a blob from Azure Blob Storage.

Supported Function Types:

Function Name	Purpose	Common Use Cases
Read Blob	Download blob content	Data imports, configuration retrieval, report processing

Node Configuration

Parameter	Type	Required	Description
Connection	Selection	Yes	Azure Blob Storage connection profile to use
Function	Selection	Yes	Read function from the selected connection
Function Parameters	Dynamic	Varies	Auto-populated from the function schema (e.g., containerName, blobPath). See your Azure Blob Storage connection functions for full parameter details.
Timeout Override	Number (seconds)	No	Override the default function timeout

Input

The node receives the output of the previous node as input. Use expressions like {{ $input.data.blobPath }} to dynamically specify which blob to read.

Output Structure

On success the node produces:

{
  "success": true,
  "functionId": "<function-id>",
  "data": {
    "data": "header1,header2\nvalue1,value2\n...",
    "metadata": {
      "blobPath": "data/report.csv",
      "containerName": "reports",
      "contentLength": 4096,
      "contentType": "text/csv",
      "encoding": "text",
      "etag": "\"0x8D...\"",
      "fileName": "report.csv",
      "lastModified": "2026-03-12T08:00:00Z",
      "sizeBytes": 4096
    }
  },
  "durationMs": 178,
  "timestamp": "2026-03-12T10:30:00Z"
}

Field	Type	Description
data	string	Blob content (text for text-based content types, base64‑encoded for binary)
metadata	object	Blob metadata (see below)

Metadata Fields:

Field	Type	Description
containerName	string	Container the blob was read from
blobPath	string	Blob path within the container
fileName	string	File name extracted from the blob path
sizeBytes	number	Blob size in bytes
encoding	string	Content encoding used (text or base64)
contentType	string	MIME content type
contentLength	number	Content length as reported by Azure
etag	string	Blob ETag for concurrency control
lastModified	string	Last modification timestamp (ISO 8601)

---

Azure Blob Delete Node

Azure Blob Delete Node

Delete a blob from an Azure Blob Storage container.

Supported Function Types:

Function Name	Purpose	Common Use Cases
Delete Blob	Permanently delete a blob	Clean up processed files, implement retention policies

Node Configuration

Parameter	Type	Required	Description
Connection	Selection	Yes	Azure Blob Storage connection profile to use
Function	Selection	Yes	Delete function from the selected connection
Function Parameters	Dynamic	Varies	Auto-populated from the function schema (e.g., containerName, blobPath). See your Azure Blob Storage connection functions for full parameter details.
Timeout Override	Number (seconds)	No	Override the default function timeout

Input

The node receives the output of the previous node as input. Use expressions like {{ $input.data.blobPath }} to dynamically specify which blob to delete.

Output Structure

On success the node produces:

{
  "success": true,
  "functionId": "<function-id>",
  "data": {
    "containerName": "temp-uploads",
    "blobPath": "old-data.csv",
    "deleted": true
  },
  "durationMs": 92,
  "timestamp": "2026-03-12T10:30:00Z"
}

Field	Type	Description
containerName	string	Container the blob was deleted from
blobPath	string	Path of the deleted blob
deleted	boolean	true if the blob was successfully deleted

Destructive Operation

Blob deletion is permanent and cannot be undone. Consider using a Condition node to verify before deleting.

---

Azure Blob List Node

Azure Blob List Node

List blobs within a container with optional prefix filtering and pagination.

Supported Function Types:

Function Name	Purpose	Common Use Cases
List Blobs	Enumerate blobs in a container	Discover files, inventory contents, batch processing

Node Configuration

Parameter	Type	Required	Description
Connection	Selection	Yes	Azure Blob Storage connection profile to use
Function	Selection	Yes	List function from the selected connection
Function Parameters	Dynamic	Varies	Auto-populated from the function schema (e.g., containerName, prefix, maxResults). See your Azure Blob Storage connection functions for full parameter details.
Timeout Override	Number (seconds)	No	Override the default function timeout

Input

The node receives the output of the previous node as input. Use expressions to dynamically specify the container or prefix filter.

Output Structure

On success the node produces:

{
  "success": true,
  "functionId": "<function-id>",
  "data": {
    "containerName": "data-lake",
    "blobs": [
      {
        "name": "logs/2026-03-12.json",
        "contentLength": 2048,
        "contentType": "application/json",
        "lastModified": "2026-03-12T06:00:00Z",
        "etag": "\"0x8D...\"",
        "blobType": "BlockBlob"
      }
    ],
    "count": 1,
    "hasMore": false
  },
  "durationMs": 134,
  "timestamp": "2026-03-12T10:30:00Z"
}

Field	Type	Description
containerName	string	Container that was listed
blobs	array	Array of blob entries
count	number	Number of blobs returned
hasMore	boolean	true if more pages are available
continuationToken	string	Token for the next page (present when hasMore is true)

Blob Entry Fields:

Field	Type	Description
name	string	Blob name/path
contentLength	number	Blob size in bytes
contentType	string	MIME content type
lastModified	string	Last modification timestamp (ISO 8601)
etag	string	Blob ETag
blobType	string	Blob type (BlockBlob, AppendBlob, or PageBlob)

---

Container Operations

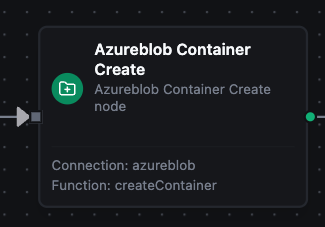

Azure Container Create Node

Azure Container Create Node

Create a new container in the Azure Storage account.

Supported Function Types:

Function Name	Purpose	Common Use Cases
Create Container	Provision a new container	Set up project storage, create data lake containers

Node Configuration

Parameter	Type	Required	Description
Connection	Selection	Yes	Azure Blob Storage connection profile to use
Function	Selection	Yes	Create Container function from the selected connection
Function Parameters	Dynamic	Varies	Auto-populated from the function schema (e.g., containerName). See your Azure Blob Storage connection functions for full parameter details.
Timeout Override	Number (seconds)	No	Override the default function timeout

Output Structure

On success the node produces:

{
  "success": true,
  "functionId": "<function-id>",
  "data": {
    "containerName": "new-data-lake",
    "created": true
  },
  "durationMs": 312,
  "timestamp": "2026-03-12T10:30:00Z"
}

Field	Type	Description
containerName	string	Name of the created container
created	boolean	true if the container was successfully created

---

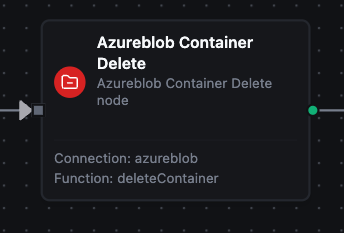

Azure Container Delete Node

Azure Container Delete Node

Delete a container and all its blobs from Azure Blob Storage.

Supported Function Types:

Function Name	Purpose	Common Use Cases
Delete Container	Remove a container and all contents	Clean up test environments, lifecycle management

Node Configuration

Parameter	Type	Required	Description
Connection	Selection	Yes	Azure Blob Storage connection profile to use
Function	Selection	Yes	Delete Container function from the selected connection
Function Parameters	Dynamic	Varies	Auto-populated from the function schema (e.g., containerName). See your Azure Blob Storage connection functions for full parameter details.
Timeout Override	Number (seconds)	No	Override the default function timeout

Output Structure

On success the node produces:

{
  "success": true,
  "functionId": "<function-id>",
  "data": {
    "containerName": "temp-uploads",
    "deleted": true
  },
  "durationMs": 187,
  "timestamp": "2026-03-12T10:30:00Z"
}

Field	Type	Description
containerName	string	Name of the deleted container
deleted	boolean	true if the container was successfully deleted

Destructive Operation

Container deletion removes the container and all blobs within it. This cannot be undone. Use a Condition node to add safety checks before deleting.

---

Azure Container Get Node

Azure Container Get Node

Retrieve metadata and properties of a container.

Supported Function Types:

Function Name	Purpose	Common Use Cases
Get Container	Inspect container properties	Verify existence, check lease status, read metadata

Node Configuration

Parameter	Type	Required	Description
Connection	Selection	Yes	Azure Blob Storage connection profile to use
Function	Selection	Yes	Get Container function from the selected connection
Function Parameters	Dynamic	Varies	Auto-populated from the function schema (e.g., containerName). See your Azure Blob Storage connection functions for full parameter details.
Timeout Override	Number (seconds)	No	Override the default function timeout

Output Structure

On success the node produces:

{
  "success": true,
  "functionId": "<function-id>",
  "data": {
    "containerName": "data-lake",
    "etag": "\"0x8D...\"",
    "lastModified": "2026-03-01T12:00:00Z",
    "leaseStatus": "unlocked",
    "leaseState": "available",
    "hasImmutabilityPolicy": false,
    "hasLegalHold": false,
    "metadata": {}
  },
  "durationMs": 98,
  "timestamp": "2026-03-12T10:30:00Z"
}

Field	Type	Description
containerName	string	Name of the inspected container
etag	string	Container ETag
lastModified	string	Last modification timestamp (ISO 8601)
leaseStatus	string	Lease status (locked or unlocked)
leaseState	string	Lease state (available, leased, expired, breaking, broken)
hasImmutabilityPolicy	boolean	Whether an immutability policy is set
hasLegalHold	boolean	Whether a legal hold is active
metadata	object	Custom metadata key‑value pairs

---

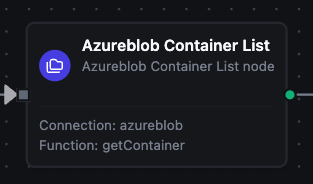

Azure Container List Node

Azure Container List Node

List all containers in the Azure Storage account.

Supported Function Types:

Function Name	Purpose	Common Use Cases
List Containers	Enumerate storage account containers	Audit inventory, discover containers by prefix, monitor usage

Node Configuration

Parameter	Type	Required	Description
Connection	Selection	Yes	Azure Blob Storage connection profile to use
Function	Selection	Yes	List Containers function from the selected connection
Function Parameters	Dynamic	Varies	Auto-populated from the function schema (e.g., prefix, maxResults). See your Azure Blob Storage connection functions for full parameter details.
Timeout Override	Number (seconds)	No	Override the default function timeout

Output Structure

On success the node produces:

{
  "success": true,
  "functionId": "<function-id>",
  "data": {
    "containers": [
      {
        "name": "data-lake",
        "lastModified": "2026-03-01T12:00:00Z",
        "etag": "\"0x8D...\"",
        "leaseStatus": "unlocked"
      }
    ],
    "count": 1,
    "hasMore": false
  },
  "durationMs": 156,
  "timestamp": "2026-03-12T10:30:00Z"
}

Field	Type	Description
containers	array	Array of container entries
count	number	Number of containers returned
hasMore	boolean	true if more pages are available
continuationToken	string	Token for the next page (present when hasMore is true)

Container Entry Fields:

Field	Type	Description
name	string	Container name
lastModified	string	Last modification timestamp (ISO 8601)
etag	string	Container ETag
leaseStatus	string	Lease status (locked or unlocked)

---

Settings Tab

All Azure Blob Storage node types share the same Settings tab:

Setting	Type	Default	Description
Description	Text	—	Optional description displayed on the node
Timeout (seconds)	Number	Pipeline default	Maximum time the node may run before timing out
Retry on Timeout	Toggle	Pipeline default	Automatically retry the node if it times out
Retry on Fail	Toggle	Pipeline default	Automatically retry the node if it fails
On Error	Selection	Pipeline default	Error strategy: stop the pipeline, continue to the next node, or follow the error output path

When left at their defaults, these settings inherit from the pipeline-level execution configuration.
