For-Each Loop node

For-Each Loop Node

Overview

The For-Each Loop Node turns a single array payload into multiple executions of downstream nodes—one run per item.
Instead of building manual loops or complex branching, you define a single array expression, and the node emits iteration metadata so the pipeline engine fans out the flow automatically.

Typical use cases include:

• Iterating over a list of work orders, sensor events, or measurements in a batch.
• Running the same sub-pipeline for each line item in an order.
• Breaking a large API response into per-item processing without writing imperative loop code.

Configuration Reference

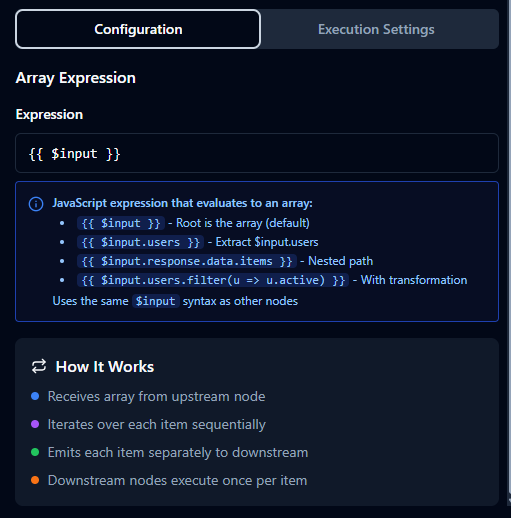

Configuration Tab

Array Expression Configuration

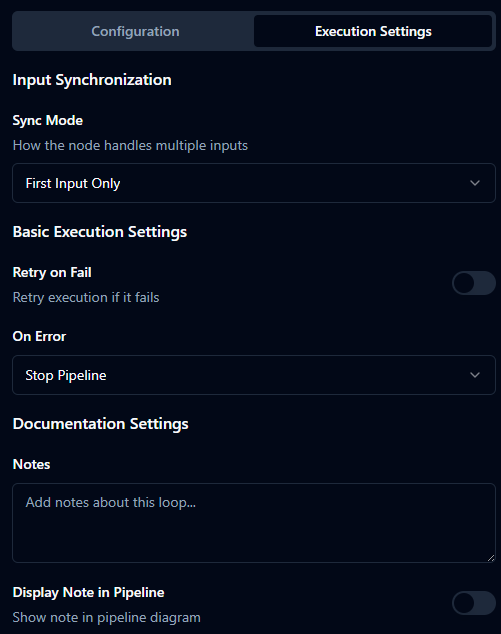

Execution Settings Tab

Settings Configuration

Parameters (Dynamic Data)

Field	Type	Default	Description
Array Expression	string	{{ $input }}	JavaScript expression (inside Maestro {{ }}) that must return an array.

Array Expression Notes

• Expression is parsed by the pipeline expression engine and executed in a JavaScript runtime.
• It has access to standard context variables such as:
  • $input – The inbound payload (often the root array or container object).
• If the expression returns anything other than an array, the node will fail validation or execution with a clear error.

Settings (Static Configuration)

The For-Each Loop shares the same settings concepts as other logic nodes:

Field	Type	Default	Description
Retry on Fail	boolean	false	Retries execution when infrastructure errors occur while evaluating the array expression.
On Error	string	"Stop Pipeline"	Determines how the pipeline reacts when evaluation fails (stop vs continue, depending on your configuration options).
Notes	string	""	Internal documentation for why iteration is used at this point.
Display Note in Pipeline	boolean	false	Shows the note directly on the canvas near the node.

The configuration UI also exposes Input Settings (sync mode, timeout) which typically default to immediate for this node.

---

Usage Examples

Example 1: Iterate Over Users in a Response

Upstream REST node returns:

{
  "users": [
    { "id": "U-1", "name": "Alice" },
    { "id": "U-2", "name": "Bob" }
  ]
}

For-Each Loop configuration:

Field	Value
Array Expression	{{ $input.users }}
Notes	Loop through each user for downstream enrichment.

Each user object is emitted as an individual item, so downstream nodes (e.g., Set, Data Instance, JavaScript) execute once per user.

Example 2: Filter Active Work Orders Before Iteration

Upstream payload:

{
  "orders": [
    { "id": "WO-1", "status": "active" },
    { "id": "WO-2", "status": "closed" }
  ]
}

For-Each Loop configuration:

Field	Value
Array Expression	{{ $input.orders.filter(o => o.status === "active") }}
On Error	Stop Pipeline

Only active orders are iterated over, ensuring downstream processing focuses on live work.

Example 3: Iterate Over Raw Array Payload

Upstream node already returns an object with a data array:

{
  "data": [
    { "measurement": 10.2 },
    { "measurement": 11.5 },
    { "measurement": 9.8 }
  ]
}

For-Each Loop configuration:

Field	Value
Array Expression	{{ $input.data }}
Notes	Iterate over measurement samples.

The node treats the root payload as the array; each sample becomes an individual item flowing through the rest of the pipeline.

---

When to Use For-Each Loop

Use the For-Each Loop node when:

• You receive arrays from connectors or upstream transforms and want each element to drive a separate execution of downstream logic.
• You need a clear, declarative way (via Array Expression) to pick which collection to iterate—without hand-rolling loops.
• You want iteration to integrate cleanly with other nodes like Data Instance, Set, and JavaScript, using the same pipeline execution engine and observability.
