Wait node

Wait Node

Overview

The Wait Node suspends pipeline execution for a configurable duration and then forwards the incoming payload. It is ideal for throttling downstream systems, sequencing dependent actions, or adding short-lived timers without leaving the Maestro orchestration environment. The node keeps lightweight state throughout the delay and appends timing metadata to the outbound packet so operators can audit intentional pauses.

---

Core Functionality

1. Flexible Duration Input

• Accepts literal durations such as 1000ms or 5s, with a range of 1 ms to 60 s.
• Supports Maestro expressions (for example {{ $input.waitTime }}) that resolve at runtime, enabling dynamic delays per execution.
• Expression syntax is validated during configuration; runtime values are re-parsed and clamped to the 60-second ceiling.

2. Stateful Waiting

• Manages the process by keeping track of how long it should wait, the exact moment the wait started, and whether it’s still waiting or has already finished.
• Honors cancellations: when a pipeline run is stopped, the wait ends immediately and propagates a cancellation error.
• Resetting or reloading the node clears stored state, ensuring the next execution starts fresh.

3. Standard Settings Compatibility

• Respects the shared retry, error handling, and documentation settings used across Maestro nodes.
• The node is set to process incoming data immediately by default, which is the preferred sync mode when you’re using waits.

4. Validation Safeguards

• Rejects empty duration strings, malformed values, and durations longer than 60 seconds.
• Disallows $history usage in expressions to avoid expensive lookups.
• Applies identical validation at design and runtime, preventing deployment of invalid waits.

---

Configuration Reference

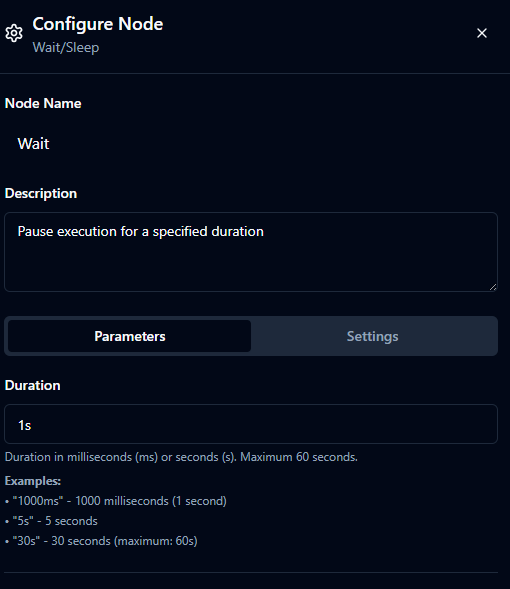

Parameters Tab

Parameters Configuration

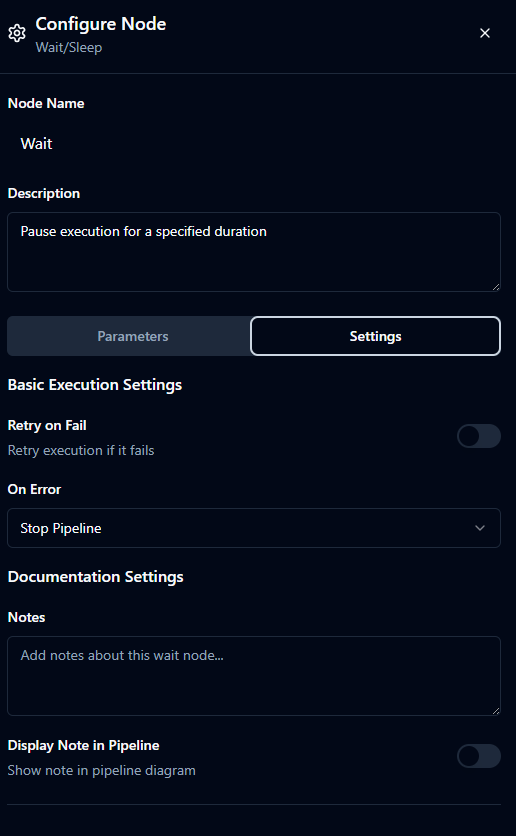

Settings Tab

Settings Configuration

Parameters (Dynamic Data)

Field	Type	Default	Description
Duration	string	"1s"	Required delay such as 750ms or 10s. Expressions can supply values at runtime but must resolve between 1ms and 60s.

Settings (Static Configuration)

Field	Type	Default	Description
Retry on Fail	boolean	false	Rare safety net that repeats the wait if infrastructure errors occur.
On Error	string	"Stop Pipeline"	"Stop Pipeline" halts the branch, "Continue Execution" records the error and proceeds, "Retry Node" reruns the wait using retry rules.
Notes	string	""	Describe why the pause exists so teammates leave it intact.
Display Note in Pipeline	boolean	false	Shows the note directly on the canvas for operators.

---

Usage Examples

Example 1: Cool Down Between Assembly Jobs

Field	Value
Duration	5s
Notes	Pause to avoid overheating station.
Display Note in Pipeline	true

Insert this wait after a welding robot finishes a batch. The five-second pause lets the fixture cool before the next job arrives.

Example 2: Catch-Up Buffer Before Quality Check

Field	Value
Duration	1.5s
On Error	Continue Execution
Notes	Give vision system time to reset optics.

Use this shorter pause ahead of an inline vision inspection. If the wait encounters an error, the branch still advances so the line does not deadlock.

Example 3: Retry Cooldown for Packaging Line

Field	Value
Duration	250ms
Retry on Fail	true
On Error	Retry Node

When a packaging arm misfires, loop through error handling and include this wait to provide a quarter-second buffer before attempting the move again.
