BACnet/IP Integration Guide

MaestroHub integrates natively with BACnet/IP building automation devices. Browse device objects, read property values in batch, and orchestrate building data acquisition inside your pipelines.

Overview

The BACnet/IP connector provides:

• Direct UDP communication with any ASHRAE Standard 135 compliant device
• Object discovery via device browsing to enumerate all available objects
• Batch property reads using ReadPropertyMultiple for efficient data acquisition
• Auto interface detection to find the correct network interface for reaching the target device

Connection Configuration

Creating a BACnet/IP Connection

Navigate to Connections → New Connection → BACnet/IP and configure the device endpoint with the following fields.

BACnet/IP Connection Creation Fields

1. Profile Information

Field	Default	Description
Profile Name	—	A descriptive name for this connection profile (required, max 100 characters)
Description	—	Optional description for this BACnet connection

2. BACnet/IP Settings

Field	Default	Description
Device IP Address	—	IPv4 address of the target BACnet device (e.g., 192.168.1.100) — required
Port	47808	BACnet/IP UDP port on the target device (1–65535)
Device ID	—	BACnet Device Instance ID (0–4194302) — required
Timeout (ms)	10000	Timeout for all BACnet operations including connect, read, and browse (1000–300000 ms)

3. Connection Labels

Field	Default	Description
Labels	—	Key-value pairs to categorize and organize this BACnet connection (max 10 labels)

Example Labels

• building: main-campus — Building name
• floor: 2nd — Floor level
• system: hvac — Building system
• location: mechanical-room — Physical location

Notes

• UDP Protocol: BACnet/IP communicates over UDP. The MaestroHub server must have direct network access to the device on the configured port.
• No Authentication: BACnet/IP has no built-in authentication — security is managed at the network level.
• Device ID: The Device Instance ID uniquely identifies the target device on the BACnet network. It can be found in device documentation, the device's configuration interface, or via a BACnet discovery tool.
• Port 47808: This is the standard BACnet/IP port (0xBAC0). Only change it if the device uses a non-standard port.
• Timeout: The default 10000 ms (10 seconds) works well for local networks. Increase for slower networks or devices with many objects.
• Auto Interface Detection: The connector automatically selects the best local network interface to reach the target device — no manual network configuration is required.

Function Builder

Creating BACnet Functions

Once the connection is saved:

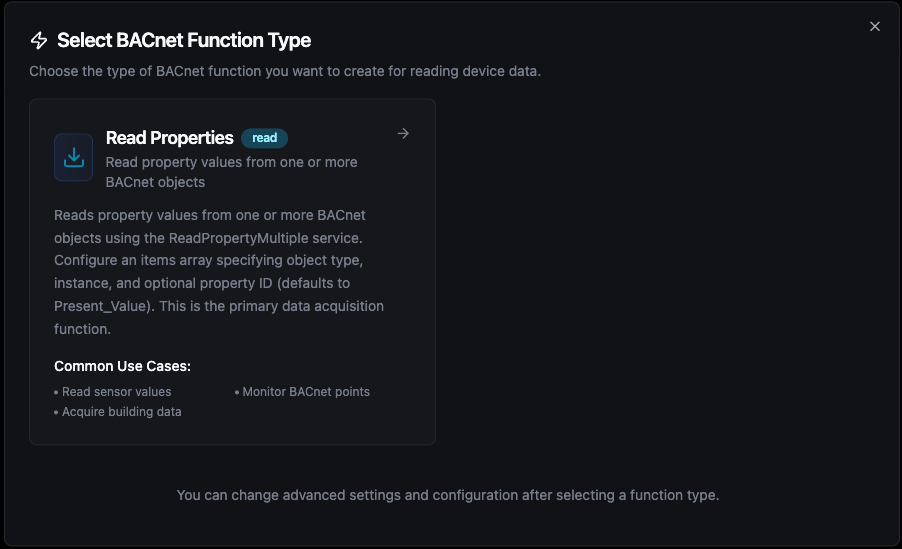

1. Go to the Functions tab → New Function
2. Choose Read Properties
3. Configure the read items with names, object types, and property IDs

Configure BACnet read functions with named items and the browse panel for object discovery

Read Properties Function

Purpose: Read property values from one or more BACnet objects using ReadPropertyMultiple. Each item is given a unique name that becomes the key in the result output.

Configuration Fields

Field	Type	Required	Default	Description
Function Name	String	Yes	—	A descriptive name for this read function (1–100 characters)
Description	String	No	—	Optional description
Read Items	Array	Yes	—	List of BACnet objects/properties to read (1–50 items)

Read Item Fields

Field	Type	Required	Default	Description
Item Name	String	Yes	—	Unique name for this item — used as the key in results
Object Type	Selection	Yes	—	BACnet object type (e.g., AnalogInput, BinaryInput, Device)
Instance	Number	Yes	—	Object instance number
Property ID	Selection	No	85 (Present_Value)	BACnet property to read

Supported Object Types

Code	Name	Typical Use
0	AnalogInput	Temperature sensors, pressure sensors, flow meters
1	AnalogOutput	Valve positions, damper commands, setpoints
2	AnalogValue	Internal calculated values, configurable setpoints
3	BinaryInput	Occupancy sensors, switch states, alarms
4	BinaryOutput	Relay commands, on/off controls
5	BinaryValue	Internal binary states, mode flags
8	Device	The device itself (instance = Device ID)
12	Loop	PID control loops
13	MultiStateInput	Multi-position switches, fan speed states
14	MultiStateOutput	Multi-position actuator commands
17	Schedule	Weekly schedules
20	TrendLog	Historical data logs

Common Property IDs

ID	Name	Description
85	Present_Value	Current value — the most commonly read property
77	Object_Name	Human-readable name of the object
28	Description	Text description of the object
36	Event_State	Current alarm/event state
103	Reliability	Reliability status of the object
111	Status_Flags	Bitmask: in-alarm, fault, overridden, out-of-service
117	Units	Engineering units (e.g., degrees-Fahrenheit, percent)

Browse Panel

The function configuration page includes a Browse Device Objects panel on the right side. Click Browse to discover all objects on the connected device. You can then:

• Search/filter objects by name, type, or instance number
• Click an object to add it as a read item with auto-generated name

Testing Functions

Before saving, you can test your configuration:

• Per-item testing: Click the test tube icon on any read item to verify it reads correctly
• Full function test: Click Test Function to execute all items and view results in the test dialog

Pipeline Integration

Use the BACnet Read node inside the Pipeline Designer to incorporate building automation data into your pipelines. Select the connection, choose a read function, and bind parameters to upstream outputs or constants.

For orchestration blueprints that combine BACnet with analytics, SQL, or notification steps, review the Connector Nodes page.

BACnet Read node with connection binding and function selection

Common Use Cases

HVAC Monitoring

Read temperature, humidity, and airflow values from air handling units (AHUs), rooftop units (RTUs), and variable air volume (VAV) boxes, then push results to dashboards or historians.

Energy Management

Acquire meter readings, power consumption, and demand data from BACnet-enabled meters and submeters for energy analytics and reporting.

Alarm Aggregation

Poll event states and status flags from building controllers to aggregate alarms into a central notification system with escalation workflows.

Occupancy Analytics

Read occupancy sensor data and schedule objects to optimize HVAC and lighting based on real-time building usage patterns.
